Honeywell (Elster) A1700 MID 5A CT Connected Smart Meter (UK504-014)
Elster a1700 mid ofgem kwh meter

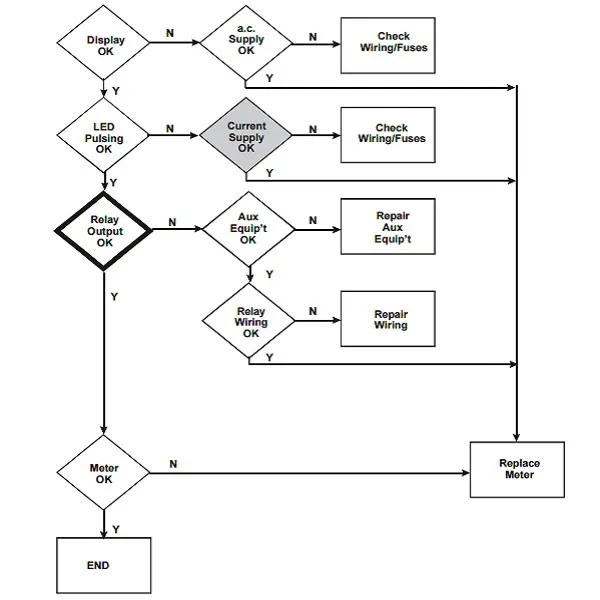

A1700 fault finding chart
A1700 3 W kwh fault check

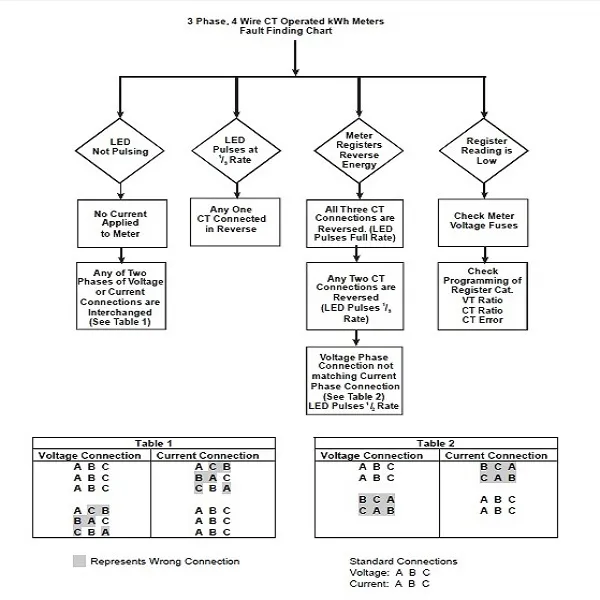

A1700 4 W fault check
Honeywell (Elster) A1700 MID 5A CT Connected Smart Meter (UK504-014)
Sorry, this product is not currently available. Please get in touch for information on alternative products.
Product Description
Elster A1700 offers superb measurement and complex tariff capabilities for use in Commercial, Solar PVA and renewable Energy and Industrial CT operated applications. The meter can operate as a stand-alone unit or as part of a comprehensive metering system.
Tariff Structure: 16 or 32 time of use registers, 8 maximum demand registers, 5 coincident demand registers, 12 seasons, 96 switching times, 64 exclusion days.
This model is a 5A CT operated Meter with Pulsed outputs for monitoring equipment (4 solid-state relays).
Please select the required CT ratio and we will program the meter accordingly.
Specification
Current Range | 5-6A, 5-10A, 1-2A, 1-1 2.2A |
Reference Voltage | 57.5-240V (3 phase 4 wire)
100-415 (3 phase 3 wire) |
Frequency | 50Hz or 60Hz |
Voltage Circuits | Single element - 1.92W, 4.17VA Two/three element - 1.12W, 2.45VA |
Current Circuits | 0.12VA @ 5A/phase |
Insulation | 4kV RMS 50Hz |
Impulse Withstand | 12kV 1.2/5us 50ohm source |
Display | 2 line, 16 character dot matrix liquid crystal display 8mm digits |
Baud Rates | 1200, 2400, 4800, 9600 |
Product Life | 15 years |
Certified Product Life | 10 years (by OFGEM) |
Temperature | -25°C to 55+°C (Operational range) -25°C to 70+°C (Operational operating range) 25°C to 70+°C (Storage) |
Humidity | Annual mean 75% (for 30 days spread over one year, 95%) |
Pulse Width/Value | Programmable |
Relay Specification | 240V.a.c
100ma 1 x 5 relay (option, module only) |
Dimensions (W x D xH) | 170 x 279 x 81mm |
Weight | 1500 grams |
Specifications | IEC62502-11 and IEC62052-21, -22, -23
EC Directive 2004/22/EC (MID) Class A, B, or C |
Case | IP53 to IEC60529:1989 |
