Honeywell (Elster) A1700 MID 5A CT Connected Smart Meter (UK504-014)
Backorder
£295.00
£354.00 inc. VAT
Honeywell (Elster) A1700 MID High Voltage 5A CT/VT Connected Smart Meter (UK504-023_MID)

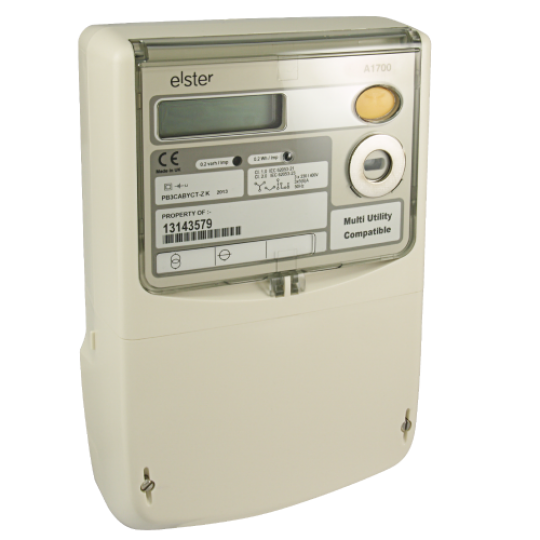

Elster a1700 mid ofgem kwh meter

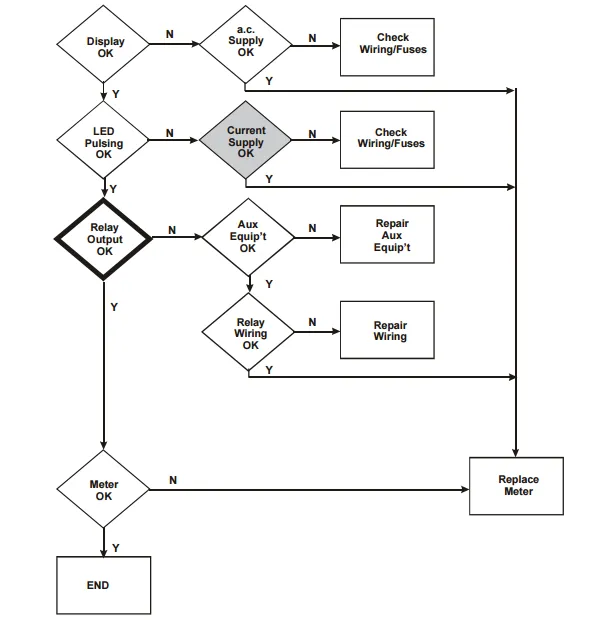

A1700 fault finding chart
A1700 3 W kwh fault check
A1700 4 W fault check
Honeywell (Elster) A1700 MID High Voltage 5A CT/VT Connected Smart Meter (UK504-023_MID)
£295.00
£354.00 inc. VAT
Product Description
A1700 5A CT/VT Connected Smart Meter offers superb measurement and complex tariff capabilities for use in Commercial, Solar PVA and renewable Energy and Industrial CT and CT/VT operated applications. The meter can operate as a stand-alone unit or as part of a comprehensive metering system.
Tariff Structure: 16 or 32 time of use registers, 8 maximum demand registers, 5 coincident demand registers, 12 seasons, 96 switching times, 64 exclusion days.
For use in HV installations, this model is for 110V inputs via a Voltage Transformer and 5A CT inputs with Pulse outputs for connection to monitoring equipment (4 solid-state relays).
Please select the required CT/VT ratio and we will program the meter accordingly.
Specification
Current Range | 5-6A, 5-10A, 1-2A, 1-1 2.2A |
Reference Voltage | 57.5-240V (3 phase 4 wire)
100-415 (3 phase 3 wire) |
Frequency | 50Hz or 60Hz |
Voltage Circuits | Single element - 1.92W, 4.17VA Two/three element - 1.12W, 2.45VA |
Current Circuits | 0.12VA @ 5A/phase |
Insulation | 4kV RMS 50Hz |
Impulse Withstand | 12kV 1.2/5us 50ohm source |
Display | 2 line, 16 character dot matrix liquid crystal display 8mm digits |
Baud Rates | 1200, 2400, 4800, 9600 |
Product Life | 15 years |
Certified Product Life | 10 years (by OFGEM) |
Temperature | -25°C to 55+°C (Operational range) -25°C to 70+°C (Operational operating range) 25°C to 70+°C (Storage) |
Humidity | Annual mean 75% (for 30 days spread over one year, 95%) |
Pulse Width/Value | Programmable |
Relay Specification | 240V.a.c
100ma 1 x 5 relay (option, module only) |
Dimensions (W x H x D) | 170 x 279 x 81mm |
Weight | 1500 grams |
Specifications | IEC62502-11 and IEC62052-21, -22, -23
EC Directive 2004/22/EC (MID) Class A, B, or C |
Case | IP53 to IEC60529:1989 |
