ABB B21 113-100 Single Phase, 65A Direct Connect MID Meter with M-Bus and Pulse Output (2CMA100151R1000)

Name: ABB B21 113-100 Single Phase, 65A Direct Connect MID Meter with M-Bus and Pulse Output (2CMA100151R1000)
Brand: ABB
Price: 200.328 GBP
Availability: BackOrder

ABB

Manufacturer Part No: 2CMA100150R1000

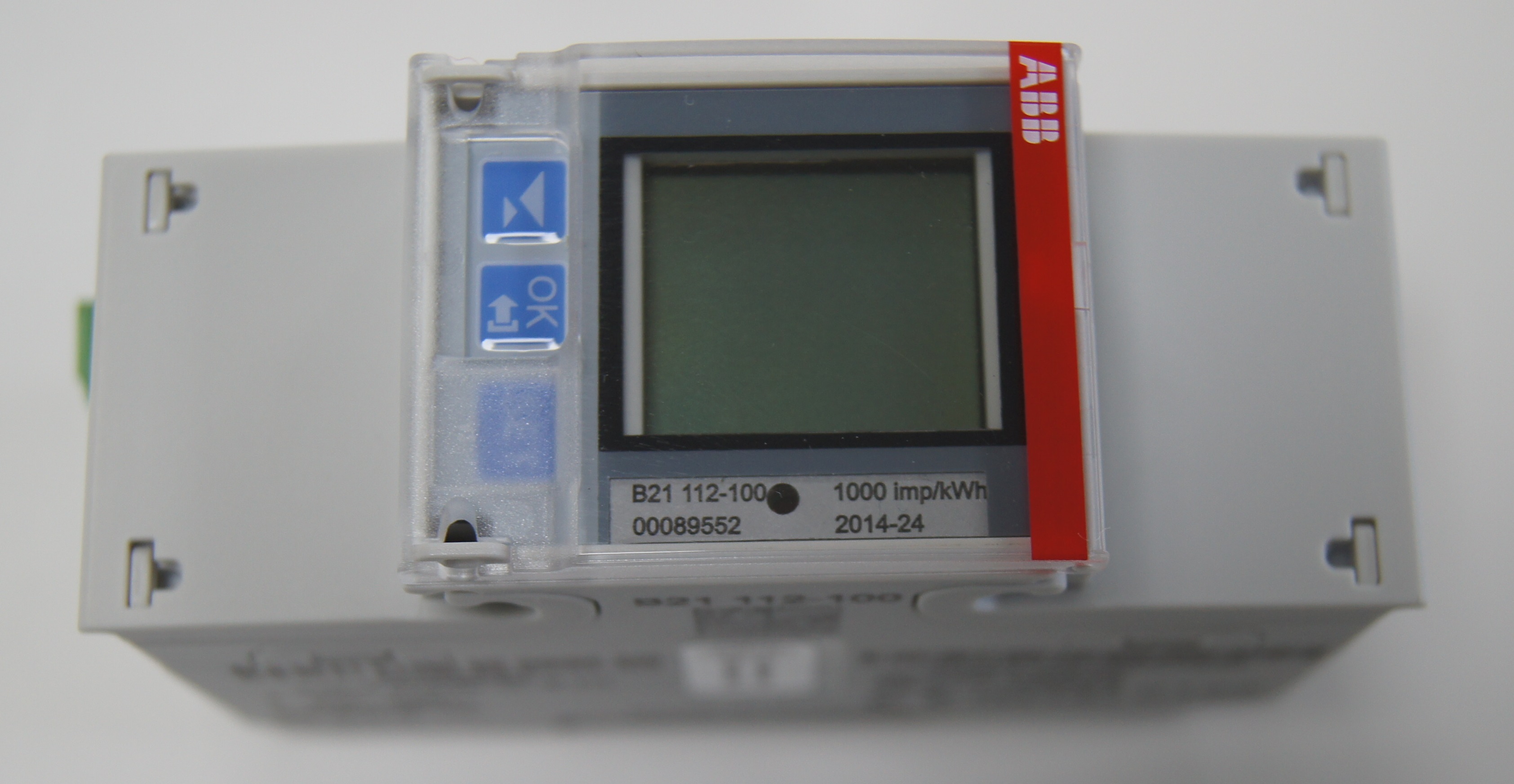

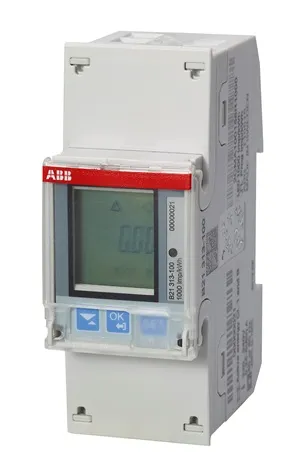

ABB B21 113-100 Single Phase, 65A Direct Connect MID Meter with M-Bus and Pulse Output (2CMA100151R1000)

ABB

Manufacturer Part No: 2CMA100150R1000

£166.94

£200.33 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

ABB B21 113-100 Three Phase 65A Direct Connected meter has Pulse and M-bus output, MID certification, and is mounted on a DIN rail.

The low rated or base currents of the meter ensures high dynamic performance with superior accuracy even at low currents. Navigation the meter is easily done via the push-buttons below the display.

The exceptional low power consumption of the meter, less than 0.9 VA, makes it economical in the long run - an important feature specially for large meter populations.

The meter reads active energy with accuracy class B (CL 1) and is labelled 'Steel' in ABB's descriptions.

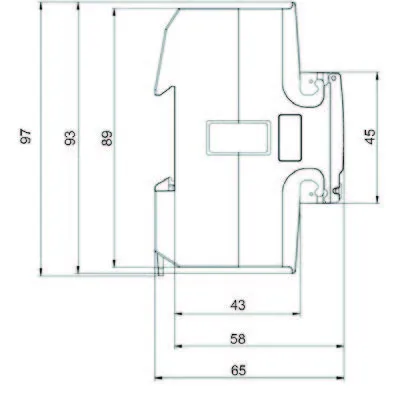

Specification

Voltage/Current Input

Nominal voltage	230 V AC
Voltage range	220-240 VAC (-20% - +15%)
Power dissipation voltage circuits	0.9 VA (0.4 W) total
Power dissipation current circuits	0.014 VA (0.014 W) per phase at 230 V AC and Ib
Base current Ib	5 A
Rated current In	-
Reference current Iref	5 A
Transitional current Itr	0.5A
Maximum current Imax	65 A
Minimum current Imin	0.25 A
Starting current Ist	< 20 mA
Terminal wire area	1 - 25 mm²
Recommended tightening torque	3 Nm

General Data

Frequency	50 or 60 Hz ± 5%
Accuracy Class	B (CL 1) and Reactive CL 2
Active energy	1%
Display of energy	6 digit LCD

Environmental

Operating temperature	40°C - +70°C
Storage temperature	40°C - +85°C
Humidity	75% yearly average, 95% on 30 days/year
Resistance to fire and heat	Terminal 960 °C, cover 650°C (IEC 60695-2-1)
Resistance to water and dust	IP20 on terminal block without protective enclosure and IP51 in a protective enclosure, according to IEC 60529
Mechanical environment	Class M2 in accordance with the Measuring Instrument Directive (MID). (2004/22/EC)
Electromagnetic environment	Class E2 in accordance with the Measuring Instrument Directive (MID), (2004/22/EC)

Outputs

Current	2 - 100 mA
Voltage	5 - 240 V AC/DC For meters with only 1 output - 5- 40 VDC
Pulse output frequency	Programmable: 1 - 999999 imp/kWh
Pulse length	Programmable: 10 - 990 ms
Terminal wire area	0.5 - 1 mm²
Recommended tightening torque	0.25 Nm

Inputs

Voltage	0 - 240 V AC/DC
ON	0 - 12 V AC/DC
OFF	57 240 V AC/24 - 240 V DC
Min. pulse length	30 ms
Terminal wire area	0.5mm - 1mm²
Recommended tightening torque	0.25 Nm

EMC Compatibility

Standards

IEC 62052-11, IEC 62053-21 class 1 & 2, IEC 62053-22 CL 0.5 S, IEC 62053-23 class 2, IEC 62054-21, GB/T 17215.211-2006, GB/T 17215.321-2008 class 1 & 2, GB/T 17215.322-2008 class 0.5 S, GB 4208-2008, EN 50470-1, EN 50470-3 category A, B & C.
