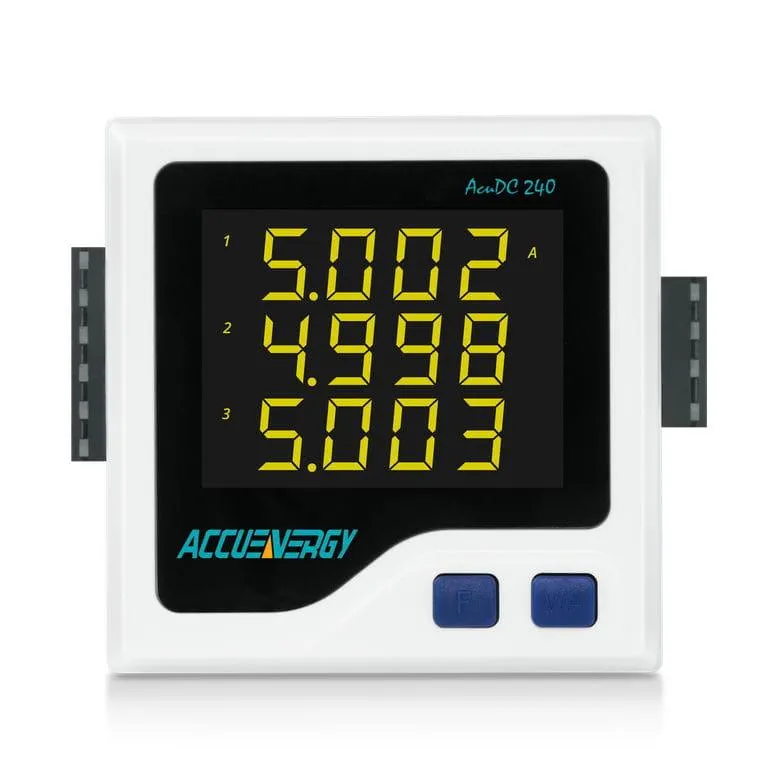

Acudc 240 front

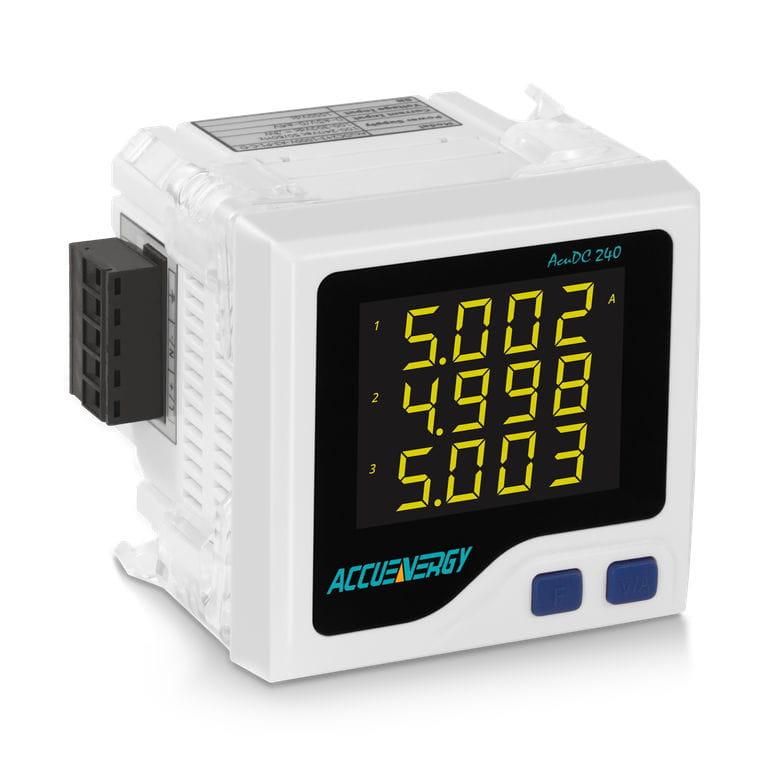

Acudc 240 front top quarter right

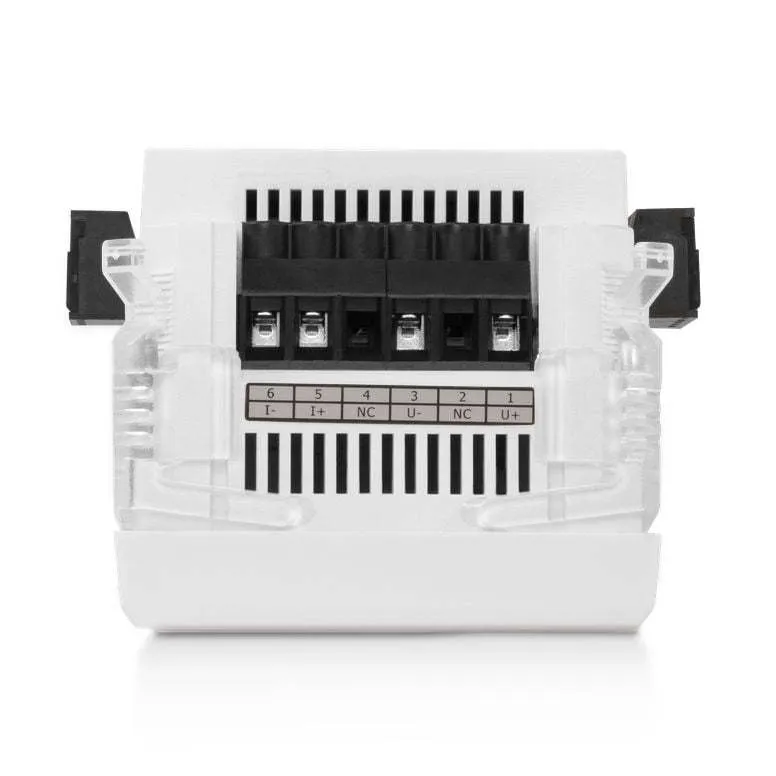

Acurev 240 bottom
Accuenergy AcuDC 243-1000V-A2-P1-C
£275.00
£330.00 inc. VAT
Product Description
The AcuDC 240 is a DC energy meter designed to monitor and control DC power applications. It supports bi-directional current measurement used in net metering, solar PV, and wind turbine power generation as well as other applications such as transportation systems, cellular communication towers, power distribution systems, and IT networks.
This meter can be equipped with expansion IO Modules (X1-X7)
Features:
- Applications: All DC monitoring & metering applications i.e. Solar, Battery storage, data centres, EV chargers,
- Metering: Voltage, current, power, energy & amp-hours
- Communications: Modbus RTU
- Current Sensing: Current Hall Effect Sensor (mA)
- P1 Power supply: 100-240VAC or 100-300VDC)
Specification
Current
Input: Hall effect sensor
Power: 2W (max)
Accuracy: 0.2%
Voltage:
Nominal full scale: 0-1000V
Impedance: 2MΩ
Load: <0.6W
Accuracy: 0.2%
Communications:
Protocol: Modbus-RTU
RS485: 2-Wire Shielded Twisted Pair Cable Connection, 1200 to 38400bps,
Isolation Voltage: 2500Vac
Auxiliary:
Operating range: (P1) 100-240Vac, 50/60Hz, 100-300Vdc
Operating Environment:
Operating Temperature: -25°C to 70°C
Storage Temperature -40°C to 85°C
Relative Humidity: 5% to 95% Non-Condensing
Standards
Safety Standard: IEC 61010-1
EMC Standard: IEC 55011, IEC 61000-6-2, IEC 61000-3-2, IEC 61000-3-3
