ASL V32BIS Delta Plus CLI (LAN) 304 Modem via Telephone Network

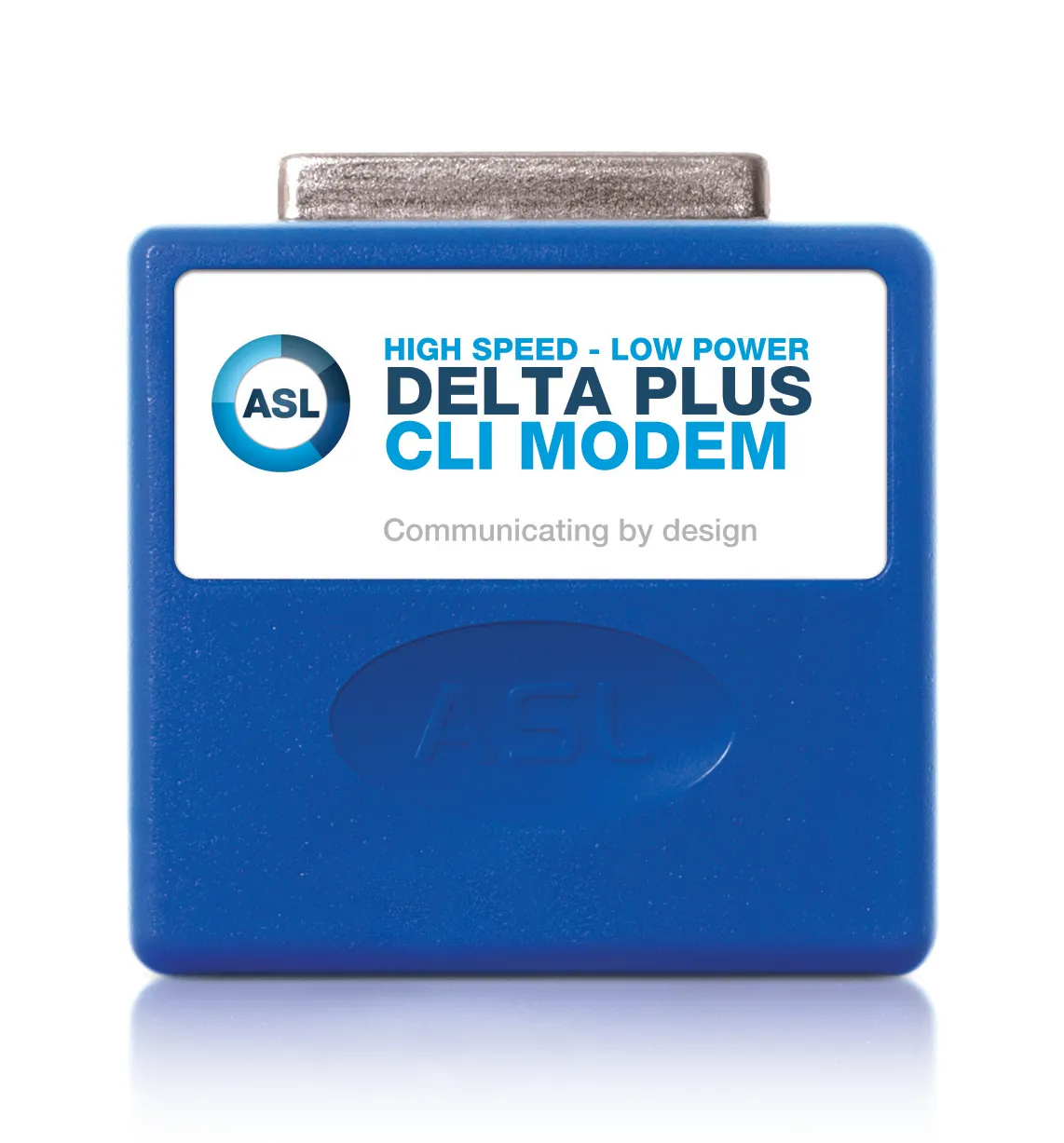

304 no holes
ASL V32BIS Delta Plus CLI (LAN) 304 Modem via Telephone Network
£85.00
£102.00 inc. VAT
Product Description
The Delta Plus CLI Modem allows access to remote data via the public mobile telephone networks and has flexible input power supply requirements, further enhancing the product's serviceability.
The modem is ideal for use with electronic electricity meters where it is small enough to fit under the terminal cover. It can also be mounted via its 25 way ‘D’ connector.
Alternately, the unit can be used for data logging applications where the low standby current requirements will allow a long battery life.
Product Features:
- Dial Up modem compatible communications data rates up to 14400bps
- Industry standard 25 way D-type socket interface
- Flexible power supply of 5V to 15VDC
- Standby mode with current drain of < 30mA
- Typical average operating power of < 40mA
- Plug in compatibility with other Delta Plus and many other modems
- Dimensionally compact and cost effective
- Stores 8 specific CLI numbers and uses ‘Wildcard’ numbering
- Supports auto-dial, auto answer and no ring answer on CLI
- NVRAM holds configuration parameter information
Specification
Data rates & standards | V22 (1200bps), V22bis (2400bps), V32 (9600bps), V32bis (14400bps) |
Power supply | Powered from the host data port. +5V to +15 V dc
Also power socket for optional external power supply |
Enclosure | Custom moulded plastic housing, size - 61 x 57 x 24mm |
Weight | 55 grams |
Environmental conditions | -20 to +55°C operating; –20 to +70°C storage. Humidity 0-95% non-condensing |
Control of functions | By ‘AT’ compatible command subset |
Auto dial/answer | Under ‘AT’ command control. Auto answer with Call Indicate |
CLI Support | Caller Line Identification (CLI ) support will be available soon - upgradeable on line |
Data port | RS232 (V24/28) asynchronous serial port supporting RXD, TXD, DCD, DTR, RTS and CTS |
| Data port connector | Integral 25 way ‘D’ socket. Standard pinout with power on pin 7 – ve, pin 9 and 15 + ve |
| Remote configuration | By the use of Hyper Terminal or any suitable terminal emulation package for access |
Approvals | The product conforms to : EN41003/EN60950, R&TTE directive 99/5/EC EMC Directive 89/336/EEC & Low Voltage Directive 73/23/EEC |
