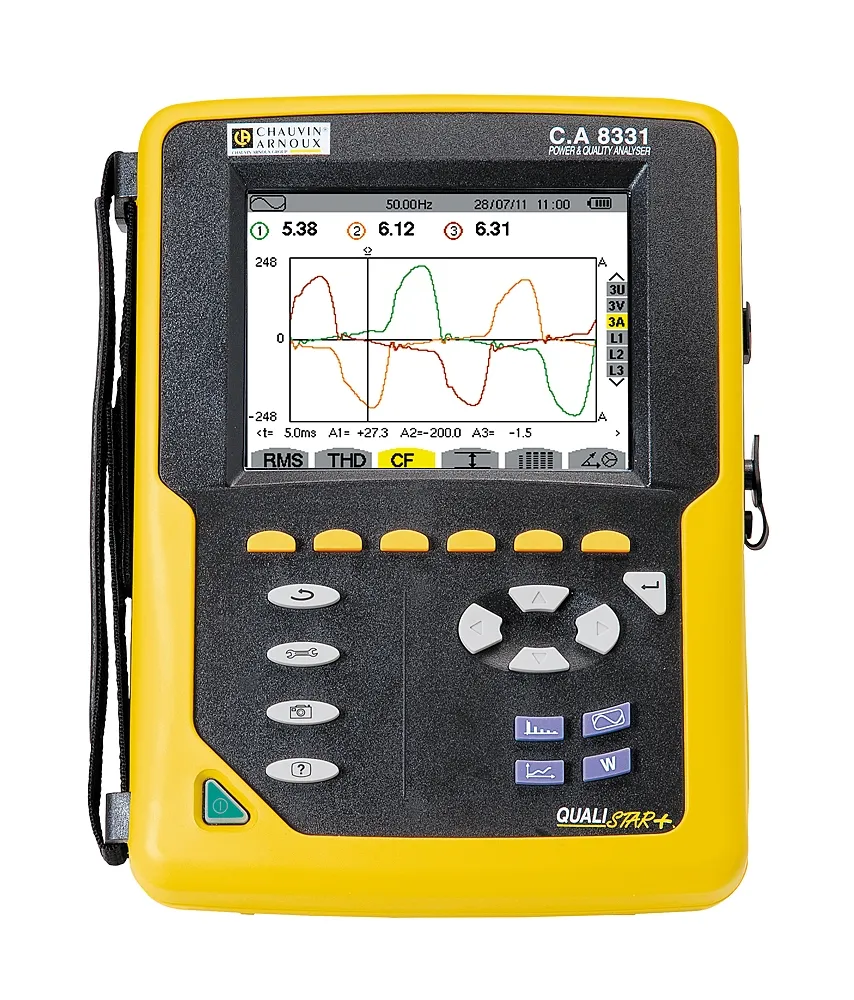

Chauvin Arnoux CA8331 Qualistar+ Power Analyser (P01160511)

Name: Chauvin Arnoux CA8331 Qualistar+ Power Analyser (P01160511)
Brand: Chauvin Arnoux
Price: 1713.6 GBP
Availability: BackOrder

Chauvin Arnoux

Manufacturer Part No: P01160511EUR

Chauvin Arnoux CA8331 Qualistar+ Power Analyser (P01160511)

Chauvin Arnoux

Manufacturer Part No: P01160511EUR

£1,428.00

£1,713.60 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

Designed for inspection and maintenance teams in industrial or administrative buildings, Chauvin Arnoux's CA8331 Qualistar+ Power Analyser can provide a snapshot of the main electrical network quality characteristics. Easy to handle and precise, this instrument also offers a large number of calculated values and several processing functions.

Product includes: 4 mm banana voltage leads, crocodile clips, a set of colour rings for identifying the leads and inputs, a USB cable, a mains power cable, a mains power pack, a safety datasheet, a multi-language operating manual CD and a PC data analysis software disk.

Specification

Model:	CA 8331	C.A 8333	C.A 8336	C.A 8435
Number of Channels	3U/ 4I		4U/4I
Number of Inputs	4V/3I		5V/4I
Voltage (TRMS AC + DC)	2V to 1000V
Voltage Ratio	up to 500kV
Current (TRMS AC+DC) - Range dependant on clamp used - sold separately:
MN93 Current Clamp	MN93: 500mA to 200A AC; MN93A: 0.005A AC to 100A AC
C193 Current Clamp	1A to 1000A AC
Mini-AmpFLEX MA193,200mm	100mA to 10000A AC			30A to 6500A AC
PAC93 Current Clamp	1A to 1300A AC/DC
E3N Current Clamp	50mA to 100A AC/DC
Current Ratio	Up to 60kA
Frequency	40Hz to 69Hz
Power Values	W, VA, var, VAD, PF, DPF, cos φ, tan φ
Energy Values	Wh, varh, VAh, VADh
Harmonics	Yes
THD	Yes, orders 0 to 50, phase
Expert Mode	-	Yes
Transients	-	50	210
Flicker (Pst & Plt)	Yes
Inrush Mode	-	Yes on 4 periods	Yes > 10 minutes
Unbalance	Yes
Recording MIN/MAX	Yes
Recording of a selection of parameters at the max sampling rate	4 hours to 2 weeks	Few days to several weeks	2 weeks to several years
Alarms	-	4000 of 10 different types	10000 of 40 different types
Peak	Yes
Vectorial Representation	Automatic
Display	Colour 1/4 VGA TFT screen, 320 x 240, diagonal 148mm
Capture of Screens and Curves	12		50
Electrical Safety	IEC 61010 1000V, CAT III / 600V CAT IV
Protection	IP53 / IK08			IP67
Languages	More than 27
Communication Interface	USB
Battery Life	Up to 13 Hours
Power Supply	9.6V NiMH rechargeable battery or external mains charger
Dimensions	240 x 180 x 55mm			270 x 250 x 180mm
Weight	1.9kg			3.7kg
