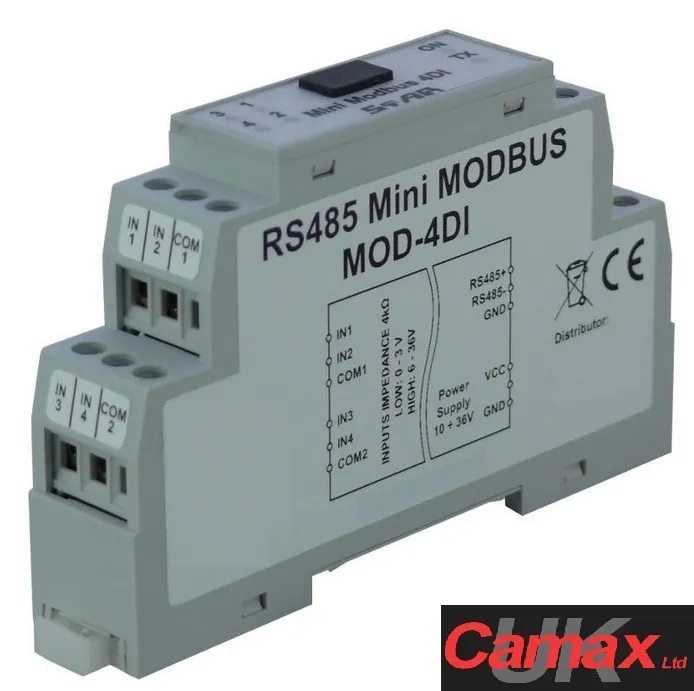

Camax Mini Digital Input pulse counter with Memory & Modbus RS485 (RTU) output
£130.00
£156.00 inc. VAT
Product Description
The MOD-4DI has 4 digital inputs with configurable timer/counter option.
All inputs and outputs are isolated from the logic system by optocouplers. Each channel can be individually configured in one of several modes.
Each input can also support pulse counting, stored in non-volatile memory so the count is retained following a power failure.
Can be configured for Modbus RTU. Programmed via USB connection.
Specification
- 4 opto-isolated digital inputs
- closed contact or digital input
- logic low - 0-3V, logic high 6-36V
- 4 configurable 32-bit counters - timers
- 1 kHz max count rate
- stored in non-volatile memory - keeps the count value after a power failure
- 2 quad encoder inputs
- RS485 - Modbus settavble to ASCII or RTU
- Baud rate from 2400 to 115200

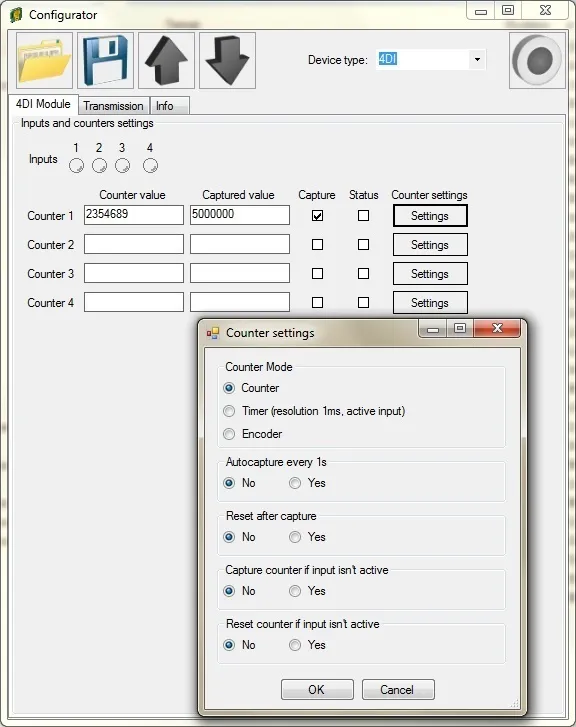

- USB programming port - free software
- Supply voltage: 10-36 VDC; 20-28VAC
- Supply Current: 62 mA @ 12V / 35 mA @ 24V
- Up to 128 modules on RS485 network
- DIN rail mount
- Dimensions: 90mm x 56mm x 17mm
- Operating Temperature: -20 °C - +65°C
