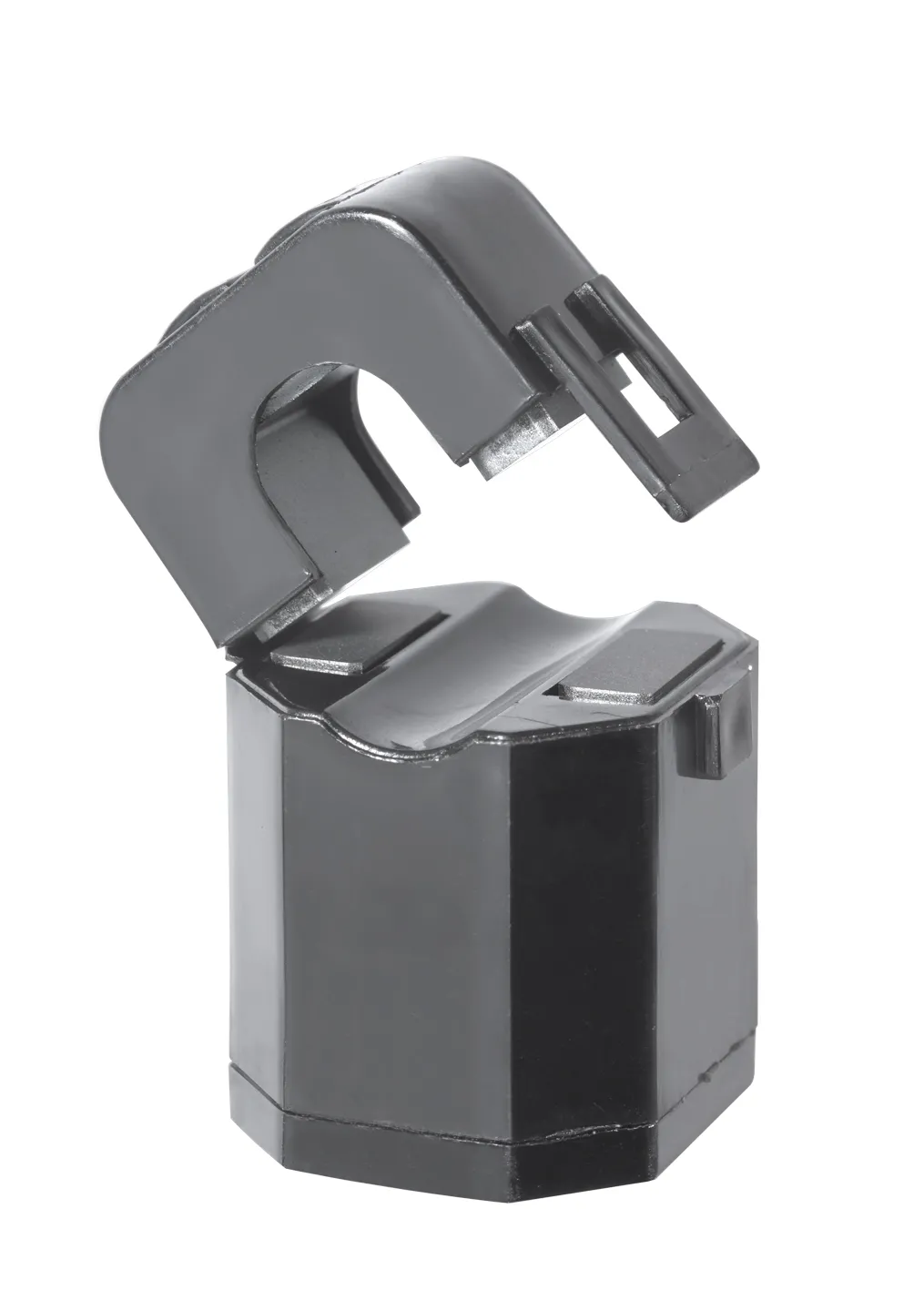

Carlo Gavazzi CTV1X mV Split-Core Sensor (CTV160A333MV)

Name: Carlo Gavazzi CTV1X mV Split-Core Sensor (CTV160A333MV)
Brand: Carlo Gavazzi
Price: 29.64 GBP
Availability: BackOrder

Carlo Gavazzi

Manufacturer Part No: CTV160A333MV

Carlo Gavazzi CTV1X mV Split-Core Sensor (CTV160A333MV)

Carlo Gavazzi

Manufacturer Part No: CTV160A333MV

£24.70

£29.64 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

Carlo Gavazzi's CTV range is the ideal solution for quick and easy installation without disconnecting cables during installation. It is indicated for any application (residential, commercial and industrial), especially for retrofitting where installing a solid core current transformer is not possible.

Specification

Material	PA66
Protection degree	IP20
Secondary output	Cable, 24 AWG (0.3mm²) Detachable screw terminals (CTV-8X)
Mounting	Cable Busbar (CTV-8X)
Weight	60g
W x H x D	28 x 30 x 31mm
Aperture	10mm
Operating temperature range	-40 to 65°C
Storage temperature range	-45 to 85°C
Maximum current (continuous)	1.2 x In
Secondary output	333mV
Rated system voltage	600Vac
Accuracy	Class 1 according to EN 61000-4-8
Winding DC resistance at 20°C	CTV1X: 560 Ω max CTV2X: 384 ± 10 Ω max CTV3X: 160 Ω max CTV4X: 130 Ω max CTV6X: 90 Ω ±10%
Dieletric withstand voltage (Hi-pot)	CTV1X, CTV2X: 2.5k V ac/1min Other models: 3k V ac/1min
