Carlo Gavazzi EM530 Energy Analyser (EM530DINAV53XS1X) - SUITABLE FOR VICTRON SOLAR INVERTORS

Name: Carlo Gavazzi EM530 Energy Analyser (EM530DINAV53XS1X) - SUITABLE FOR VICTRON SOLAR INVERTORS
Brand: Carlo Gavazzi
Price: 180 GBP
Availability: InStock

Carlo Gavazzi

Carlo Gavazzi EM530 Energy Analyser (EM530DINAV53XS1X) - SUITABLE FOR VICTRON SOLAR INVERTORS

Carlo Gavazzi

£150.00

£180.00 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

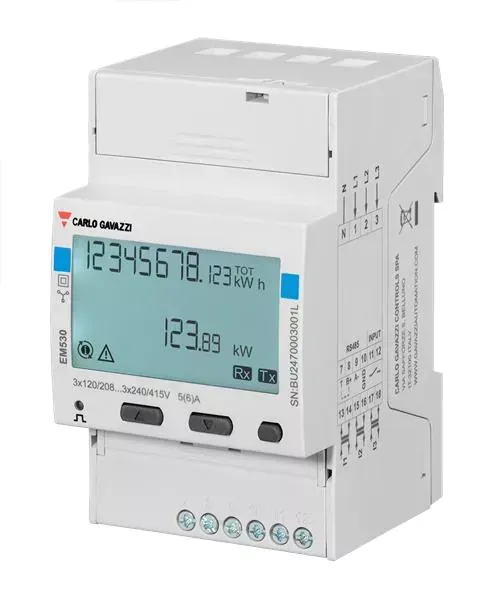

Carlo Gavazzi EM530 is an energy analyser connected through 5A current transformers for two- and three-phase systems up to 415 V L-L. In addition to a digital input, the unit can be equipped (according to the model) with a static output (pulse or alarm), a Modbus RTU communication port or an M-Bus communication port.

Key information regarding the product:

5A CT input via external CT's
Line to line voltage 400V
Self-powered
Back-lit LCD,
1 digit input
Modbus RS485
Configurable via keypad

The Carlo Gavazzi EM530 supersedes the EM24 Energy analyser.
Product Features:

System and phase variables (V L-L, V L-N, A, W/var, VA, PF, Hz)
Displays the consumed active energy with a resolution of 0.001kWh
Frequency value is available via Modbus, with a resolution of 0.001Hz
Backlit LCD display ensures visibility even in low light
Streamlined user interface featuring 3 mechanical buttons
Intuitive page configuration and browsing
Slideshow function
DIN rail mount
Modbus RTU RS485 (data refresh every 100ms)
Continuous sampling of each voltage and current
Quick configuration
UCS configuration software is available for download free of charge
Accurate measuring with average value calculation (dmd) for current and power (kW/kVA)
Fiscal metrology
Flexible installation
MID certified version, MID-certified meter resolution of 0.001kWh
Compliant with IEC/EN61557-12 performance requirements (power and active energy)

Specification

General

Material	Housing: PBT Transparent cover: polycarbonate
Protection degree	Front: IP40 Terminals: IP20
Terminals	Voltage inputs: min: 0.2 mm2, max: 2.5 mm2, 0.45 Nm max Current inputs: min: 0.2 mm2, max: 2.5 mm2, 0.45 Nm max Inputs, outputs and communication: min: 0.2 mm2, max: 1.5 mm2, 0.4 Nm max
Overvoltage category	Cat. III
Pollution degree	2
Mounting	DIN rail
Weight	280 g (packaging included)
Dimensions	3-DIN modules

Voltage Inputs - Non MID models

Voltage connection	Direct
Rated voltage L-N (from Un min to Un max)	120 to 240 V
Rated voltage L-L (from Un min to Un max)	208 to 415 V
Voltage tolerance	From 0.8 to 1.15 Un
Overload	Continuous: 1.5 Un max
Input impedance	Refer to “Power supply”
Frequency	From 45 to 65 Hz

Current inputs

Current connection	Via CT
CT transformation ratio	2000 max
Rated current (In)	5 A
Minimum current (lmin)	0.05 A
Maximum current (lmax)	6 A
Start-up current (lst)	10 mA
Overload	For 500 ms: 20 Imax (120 A)
Input impedance	< 0.9 VA
Crest factor	3
Measurement type	by means of internal shunts

Electrical system

Managed electrical system	Two-phase (3-wire) Three-phase with neutral (4-wire) Three-phase without neutral (3-wire) Wild leg system (three-phase, four-wire delta)
MID managed electrical system	Three-phase with neutral (4-wire) Three-phase without neutral (3-wire) (ARON)

Environmental specifications

Operating temperature	From -25 to +55 °C/from -13 to +131 °F
Storage temperature	From -25 to +70 °C/from -13 to 158 °F
Electromechanical environmental condition	E2
Mechanical environmental condition	M2

Power Supply

Type	Self power supply
Consumption	< 1.3 W/2.6 VA
Frequency	50/60 Hz

Output (pulsed)

Optoisolated type (IEC 62053-31)	250 VAC/DC - 100 mA (E11/E12) 27 VDC - 27 mA (E13/E14/E15/E16)
Number	1
Fixed pulse weight	100 Wh
Pulse duration	50 ± 2 ms ON time 30 ± 2 ms OFF time
