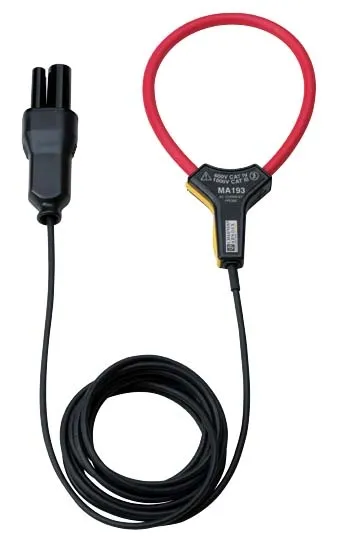

Chauvin Arnoux Mini-Flex Power Quality Clamp MA193-200 (P01120580)

Manufacturer Part No: P01120580

Chauvin Arnoux Mini-Flex Power Quality Clamp MA193-200 (P01120580)

Manufacturer Part No: P01120580

£180.00

£216.00 inc. VAT

Product Description

Compatible with all PEL and Qualistar Power Quality Analysers (also avaliable at Camax) including the: CA8333 & CA8336, CA8345 and the PEL 103, the Chauvin Arnoux AmpFlex MA193-200 Power Quality Clamp offers a clamping diameter of 20mm and a measurement range of 100mA to 10kA with 70mm clamping length.

With an IEC 61010 rating of 1000V CAT III / 600V CAT IV, the AmpFlex MA193-200 is an ideal accessory for use with any Chauvin Arnoux Power Quality Analyser.

Specification

Measurement range 100 mA to 10 kAac
IEC 61010 1,000 V CAT III / 600 V CAT IV
Dimensions (L x W x H) approx. 130 x 80 x 12 mm
Cord 3 metres long
Clamping Ø / length Ø 70 mm / 220 mm
Weight approx. 110 g
