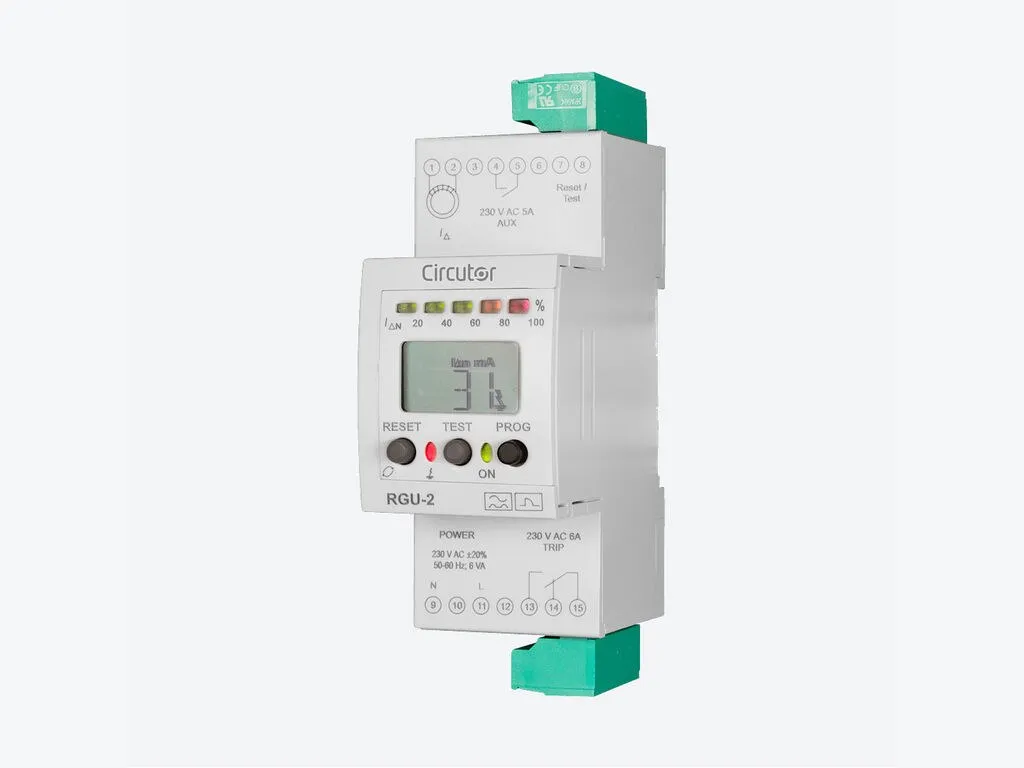

Circutor RGU-2 Earth Leakage Relay (P11A61)

Manufacturer Part No: RGU-10

Circutor RGU-2 Earth Leakage Relay (P11A61)

Manufacturer Part No: RGU-10

£98.00

£117.60 inc. VAT

Product Description

The RGU-2 Earth Leakage Relay is used for connections with their WGC Current Transformer counter-parts, offering smart and robust residual current protection against all types of unwanted tripping.

Product Details:
  • Delay: 0,1 … 5 s, INS, SEL (*1)(*2)
  • Dimensions: 2-DIN Module
  • Power supply: 120...230 Vac
  • Number of relays: 1
  • Mounting: DIN Rail

Specification

AC Power Supply, Insulation

Pulse Test (kV)

4kV

AC Power Supply

Installation category

CAT III 300 Vac (IEC 61010)

Consumption

6 VA

Frequency

50 / 60 Hz

Nominal voltage

110 - 230 V~

Mechanical Characteristics

Size (W x H x D)

35 x 112 x 84 (mm)

Envelope

Polycarbonate V0

Torque setting

0.5-0.6 Nm

Cable gauge at supply terminals

1-1.5 mm²

Fastening

DIN Rail

Weight (kg)

0,14

Environmental characters

Protection Class

IP 40

Relative humidity (without condensation)

5 … 95 %

Storage temperature

-25 … +70 ºC

Working temperature

-10 … +50 ºC

Current Measurement Circuit

Transformation ratio

Transformer type TP-WG, WG o WGC de 500/1

Standards

Electrical safety, maximum height (m)

2000

Electrical safety, contamination level/class

Pollution resistance 2

Standards

IEC 60947-2 Anexo M, IEC 62020

Other digital Relay Outputs

Thermal current

5 A

Maximum switching capacity

1250 VA, 150 W

Insulation voltage

2000 V ~

Maximum open contact voltage

1000 V ~
Electrical life105 (a 3 A)
