Crompton Instruments MSC-2 Miniature Split Core Current Transformers with 1A or 5A Output (18mm Aperture)

Name: Crompton Instruments MSC-2 Miniature Split Core Current Transformers with 1A or 5A Output (18mm Aperture)
Brand: Crompton Instruments
Price: 32.4 GBP
Availability: BackOrder

Crompton Instruments

Manufacturer Part No: MSC-2

Crompton Instruments MSC-2 Miniature Split Core Current Transformers with 1A or 5A Output (18mm Aperture)

Crompton Instruments

Manufacturer Part No: MSC-2

£27.00

£32.40 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

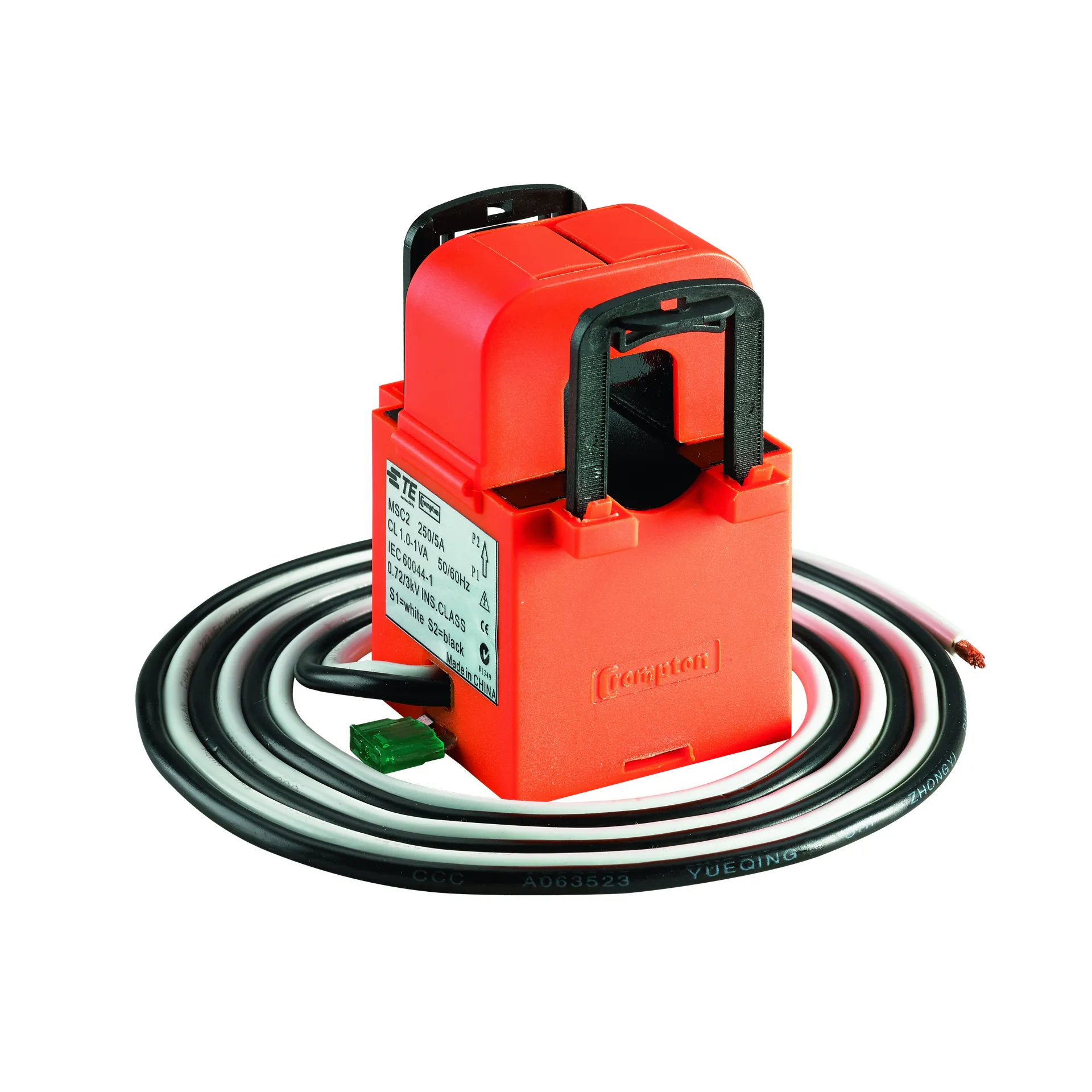

Crompton Instruments' MSC-2 range of miniature split-core current transformers offers a cost-effective and efficient method for measuring current, without the need to break a conductor. It is available with either 1A or 5A output. Each Current Transformer is supplied with colour coded leads of up to 1 meters for connection to the monitoring device.

Specification

System voltage	720V maximum
Test voltage	3kV for 1 minute
System frequency	50Hz or 60Hz
Primary ratings	60A to 500A
Short circuit thermal current	60 x rated primary current (lth): for 1 sec
Overload withstand	1.2 x rated current continuously
Rated dynamic current	= 2.55 x lht
Secondary leads	1A, (Length 3m), 5A (Length 1m) 2.5mm Wire
Enclosure	Flame retardant grade classified UL 94V-O
Aperture holes centres	18mm upto 250A, 28mm from 300A - 500A
Operating temperature	-20°C to +70°C
Accuracy Class	1, 3
Compliant with	IEC/EN 60044-1
Dimensions (H, W, D & A)	72.7, 44.5, 61.5, 18
Lead length	1A: 3m 5A: 1m
