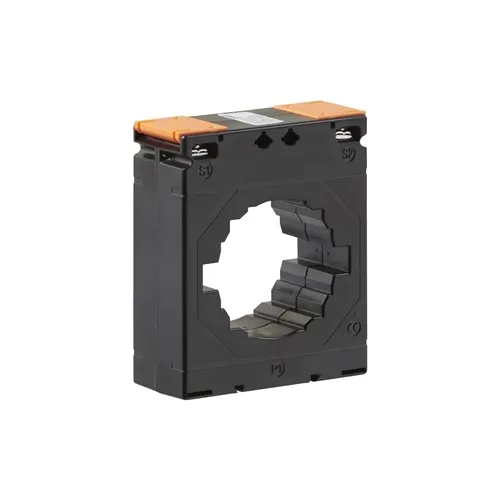

Crompton XL7B Moulded Case Current Transformer Series (200-2000A)

Name: Crompton XL7B Moulded Case Current Transformer Series (200-2000A)
Brand: Crompton Instruments
Price: 33.6 GBP
Availability: BackOrder

Crompton Instruments

Crompton XL7B Moulded Case Current Transformer Series (200-2000A)

Crompton Instruments

£28.00

£33.60 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

Crompton's XLB model is part of their Ebony Excel of current transformers, offering a wide range of current ratings, apertures, busbar and case sizes to suit every application. The XL7B has a ratio range of 200-2000A and features hinged wire sealable terminal covers for safety and multiple mounting options. 1A secondary and other class options are available upon request.

Specification

Inside Dia Ø (mm)	65
Busbars (mm)	80 x 10
	60 x 30
	50 x 50
W x H x D (mm)	104 x 126 x 45
With additional DIN rail mounting kit	✔
Panel or Wall mounting	✔
Busbar Mounting	✔
Terminal Cover	✔
Primary Current	200-2000A
Max screw torque setting (Nm)	0.75
UL Approved	N
