Find out moreCrompton XLCBCT-120 Earth Leakage current transformer (120mm ID)
XLCBCT 120
XLCBCT 120
XLCBCT 120

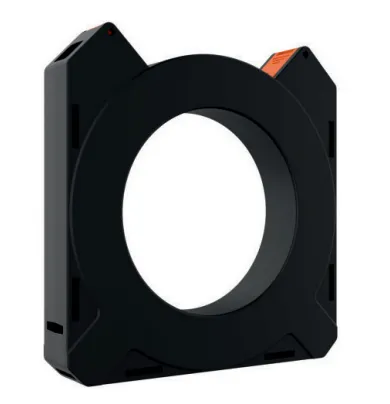

Crompton XLCBCT-120 Earth Leakage current transformer (120mm ID)
£80.00
£96.00 inc. VAT
Product Description
The XLCBCT-120 is part of the new range of core balance current transformers for the use with the ELR2 earth leakage relay.
Features:
- Compact design, reliable & accurate
- Common wall mouting clamp for all sizes
- Protective cap for connectors
- Side & vertical mounting provision
- Cable tie for holiding Busbar/Cables
Applications:
- Switchgear
- Distribution systems
- Generator sets
- Control panels
- Motor protection
- Transformer protection
- Overload protection
Specification

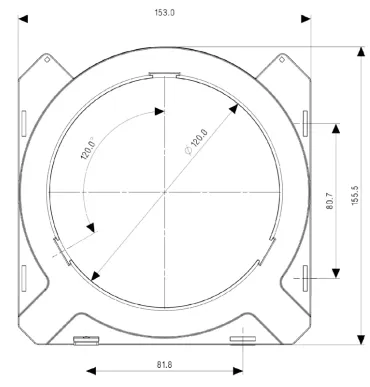

- Size: 120mm apeture
- Weight: 0.12kg
- Conformity to Standard IEC 61869-1
- Insulation Coordination: According to IEC 60664 - 1
- Case: Nylon 6, 20% GF, FR (30) Black
- Connection: Screw type terminal connection
- CT Ratio: 500:1
- Maximum Operating Voltage (Um): 0.72 kV Maximum
- Test Voltage: 3kV, 50 Hz for 1 minute
- Operating Frequency: 50/60 Hz
- Rated Primary Current (Ipr): 30 mA - 30 A
- Rated Continuous Thermal Current (Icth): 100 A
- Thermal Short Circuit Current (Ith): 60 x Ipr
- Dynamic Short Circuit Current (Idyn): 2.5 x Ith
- Ambient Temperature: -25°C to 55°C
- Storage Temperature: -50°C to 80°C
- Distance between ELR & CBCT: < 1 meter
- Accuracy Class: 3
- Secondary Terminal: Protected to IP20
