Socomec DIRIS Digiware I 3 Current Input Measurement Modules (4829-0110)
Low Stock
£131.45
£157.74 inc. VAT

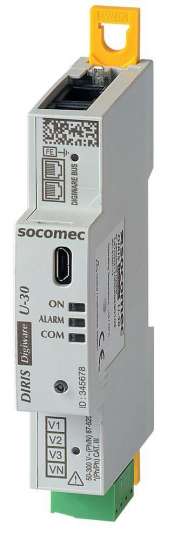

Socomec DIRIS Digiware U 3 Voltage Input Measurement Modules (4829-0105)
U 30 Voltage Module
Socomec DIRIS Digiware U 3 Voltage Input Measurement Modules (4829-0105)
£118.90
£142.68 inc. VAT
Product Description
Socomec's Diris Digiware U modules measure voltage for an entire system, pooling together all voltage measurements. The Digiware RJ45 Bus allows you to pass voltage measurements as well as power supply and communication to all connected products.
Model Types:
- U-10 Metering 3 Current Inputs 4829-0105
- U-20 Monitoring 3 Current Inputs 4829-0106
- U-30 Analysis 3 Current Inputs 4829-0102
Specification
Multi-measurement
DIRIS Digiware U | U-10 | U-20 | U-30 |
U12, U23, U31, V1, V2, V3, f | ✓ | ✓ | ✓ |
U system, V system | ✓ | ||
Ph/N unbalance | ✓ | ||
Ph/Ph unbalance | ✓ |
Quality analysis
DIRIS Digiware U | U-10 | U-20 | U-30 |
THDv1, THDv2, THDv3, THDu12, THDu23, THDu31 | ✓ | ✓ | |
Individual harmonics U & V (up to rank 63) | ✓ | ||
Voltage dips, cutoffs and surges (EN 50160) | ✓ |
Alarms
DIRIS Digiware U | U-10 | U-20 | U-30 |
On threshold | ✓ |
History of average values
DIRIS Digiware U | U-10 | U-20 | U-30 |
45 days (max) | ✓ |
Format
DIRIS Digiware U | U-10 | U-20 | U-30 |
Width/number of values | 18mm / 1 | 18mm / 1 | 18mm / 1 |
