Eastron SMART X72-5G c/w pulse & modbus RS485

Name: Eastron SMART X72-5G c/w pulse & modbus RS485
Brand: Eastron
Price: 96 GBP
Availability: InStock

Eastron

Manufacturer Part No: SMART X72-5G

Eastron SMART X72-5G c/w pulse & modbus RS485

Eastron

Manufacturer Part No: SMART X72-5G

£80.00

£96.00 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

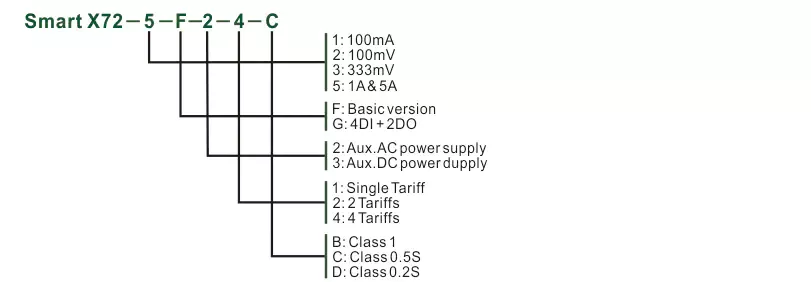

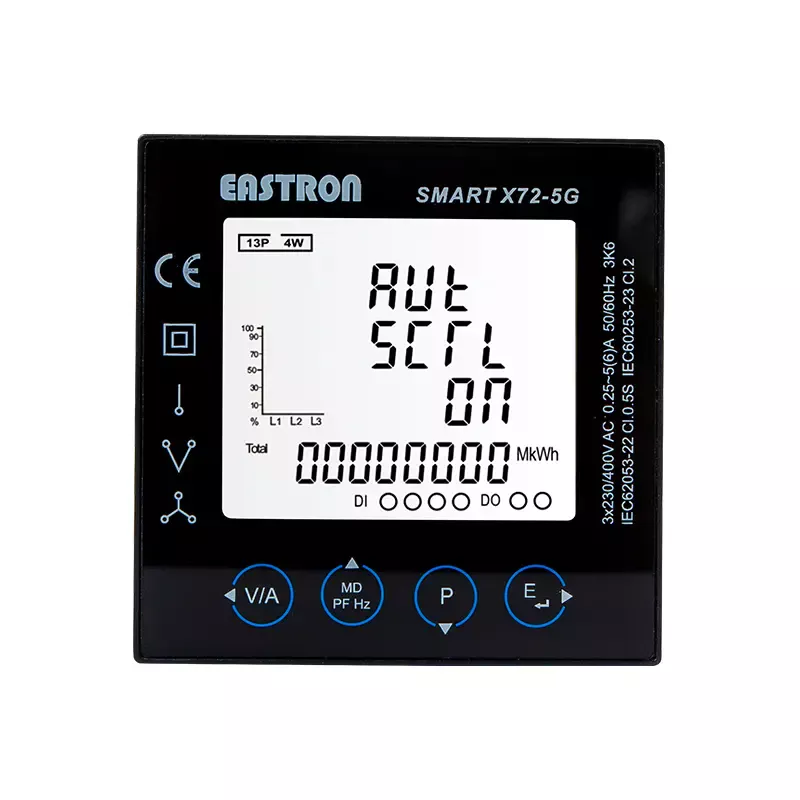

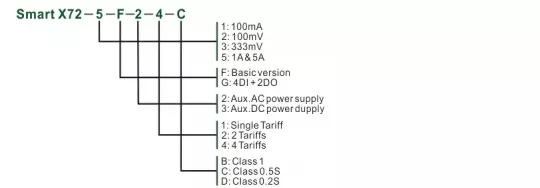

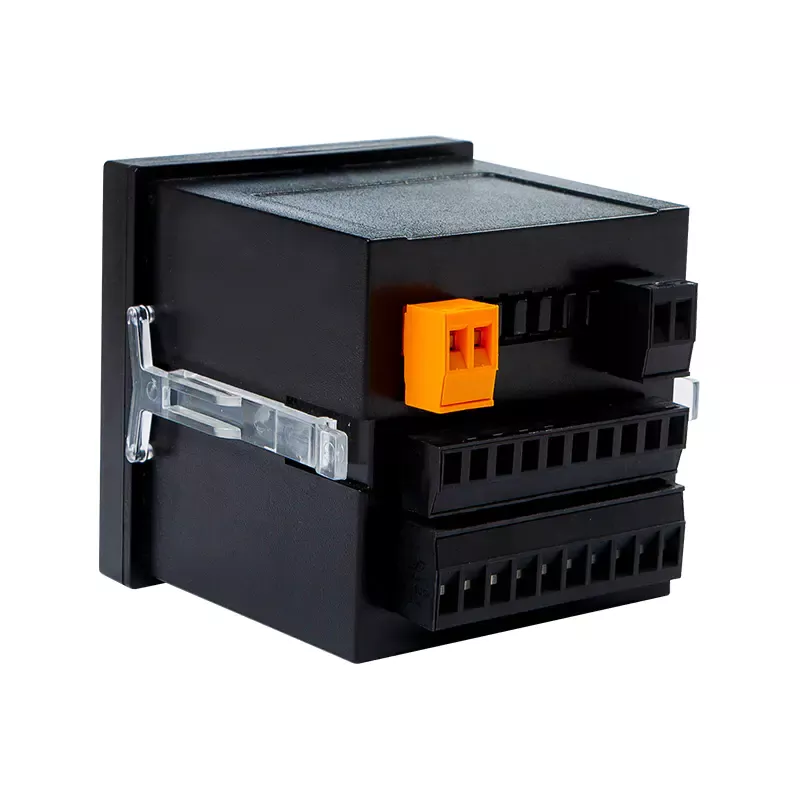

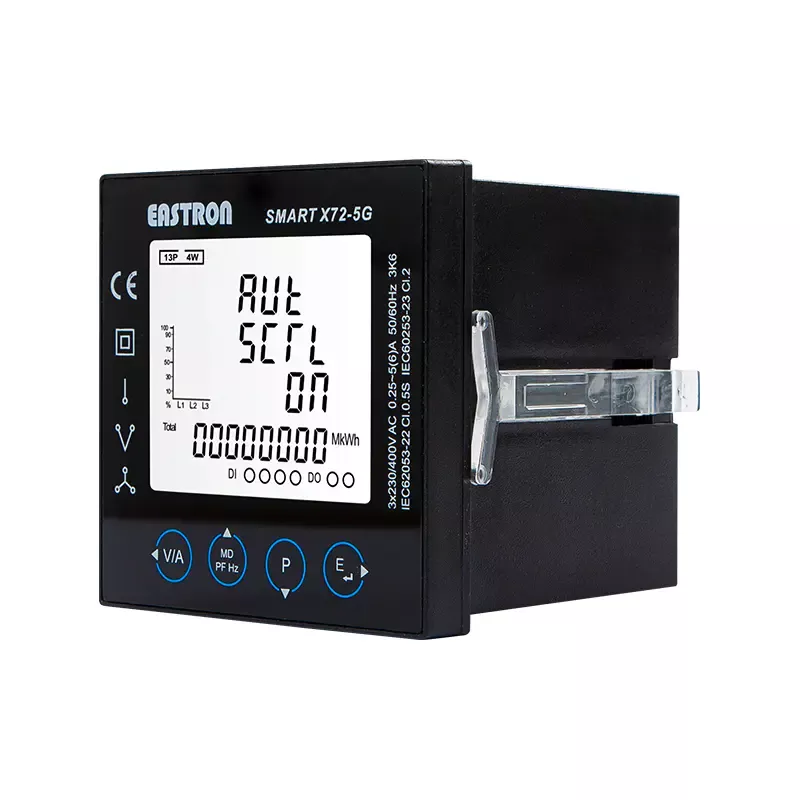

Eastron Smart X72-5G is an DI/DO RS485 Modbus 72x72 Panel Mounted Multi-function Power Analyzer. It can accurately measure and display various power parameters in single-phase two-wire, three-phase three-wire and three-phase four-wire power grids: voltage, current, power, frequency, active power, reactive power Electricity, imported and exported, etc.

Features:

Digital Input and Digital Output
Measure THD of voltage and current
IHD up to 15th
Multi-parameters measurement
RS485 Modbus RTU and Pulse Outputs
CT and PT programmable
Bar graph for power indication

Dimensions:

Height: 72mm
Width: 72mm
Depth: 74mm

Specification

Electrical Characteristics
Type of Measurement		RMS including harmonics on three phase AC system (3P, 3P+N)
Measurement Accuracy	Active Power	1.0% of range maximum
	Reactive Power	1.0% of range maximum
	Apparent Power	1.0% of range maximum
	Active Energy	IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0
	Reactive Energy	IEC62053-23 Class 2
	Frequency	0.2% of mid-frequency
	Current	0.5% of range maximum
	Voltage	0.5% of range maximum
	Power Factor	1% of unity (0.01)
	THD	2% to 15th harmonic

Input
Current	CT Primary	1-9999A
	CT Secondary	1A/5A
	Min Current	0.25A
	Starting Current	20mA
Voltage	Aux.Power Supply	230V L-N AC or 120V~380V DC
Voltage	Measured Voltage	50V ~ 600V (3P4W) 50V ~480V (3P3W)

Modbus Communications
Interface Standard and Protocol	RS485 and MODBUS RTU
Communication Address	1~247
Transmission Mode	Half Duplex
Data Type	Floating Point
Transmission Distance	1000m Maximum
Transmission Speed	2400bps~38400bps
Parity	None (default), Odd, Even
Stop Bits	1 or 2
Response Time	<100 mS
