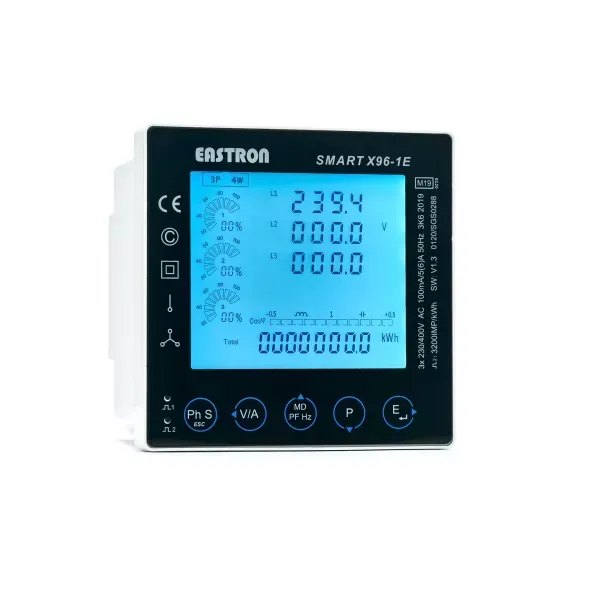

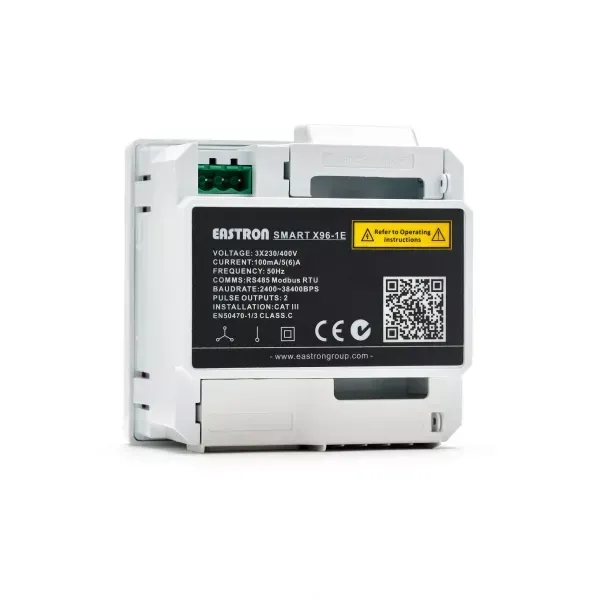

The Smart X96-1E measures either 3 x single phase circuits or 1 x three phase circuit via 100mA Easyclick current transformers (RJ12 connection).

Features:

• MID Certified to Class C (0.5%) accuracy
• EasyClick technology for plug in current transformer and mains voltage connection
• Elimination of wiring errors & labour saving
• Designed and tested in the UK by an independent laboratory
• Highly visible backlit display from all angles
• Programmable reverse flow for right/left side of breaker CT installation.
• Built in Modbus and Pulsed outputs
• Free Configuration Software

Displayed Parameters

• Phase to Neutral Voltage (V)
• Phase to Phase Voltage (V)
• Phase Current (A)
• Voltage Total Harmonic Distortion (U%THD)
• Current Total Harmonic Distortion (I%THD)
• Frequency (Hz)
• Power Factor (PF)
• Current Max Demand (MD A)
• Power Max Demand (MD kW)
• Active Power (kW)
• Reactive Power (kVAr)
• Apparent Power (kVA)
• Import Active Energy (kWh)
• Export Active Energy (kWh)
• Total Active Energy (kWh)
• Import Reactive Energy (kVArh)
• Export Reactive Energy (kVArh)
• Total Reactive Energy (kVArh)
