EDMI MK7C Single Phase 100A Direct Connected MID kWh Meter
EDMIMK7 C

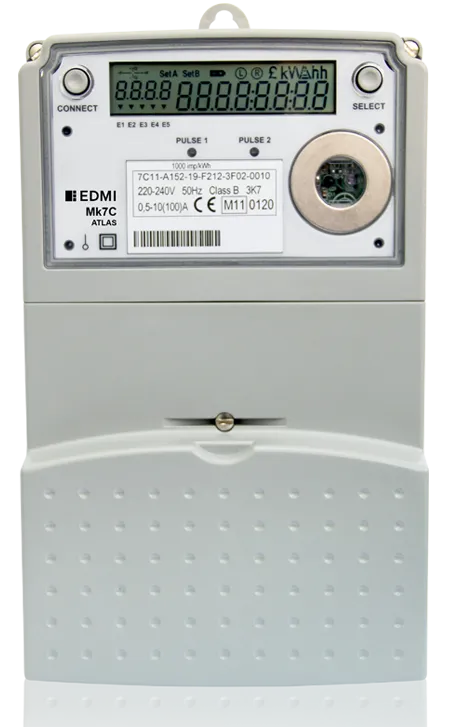

EDMI MK7C Single Phase 100A Direct Connected MID kWh Meter
£295.00
£354.00 inc. VAT
Product Description
EDMI's MK7C is a code 5 compliant, single phase, kWh multi-rate tariff meter which integrates a 100A relay, allowing disconnection and reconnection of electrical services remotely. The meter is ideal for PV Grid connected net metering.
Specification
Measurement
General | • Class 1 and Class 2 • 1 Phase 2 Wire with 100A Disconnect Switch • Three Phase, Four Wire |
Compliance | IEC62052-11, IEC62053-21, IEC62053-23 |
Voltage & Power Supply
Nominal Voltage | 220V – 240V |
Operating Range | 140V – 290V |
Burden | <10VA/phase @ Vn |
Frequency Range | 45 Hz – 65 Hz |
Current
WC Range | 5/100A, 10/100A |
WC Limit | 30 times Imax for 0.5 cycles 7000A for 3 cycles |
Burden | < 0.5 VA / phase |
Environmental
Operating Range | -40°C to +60°C |
Limit Range | -40°C to +70°C |
Storage Range | -40°C to +80°C |
Relative Humidity | Up to 95% non-condensing |
Ingress Protection | IP54 |
Measured Values
Energy Values | • 1 Element 4 Quadrant • Import/Export Wh, varh and VAh • Per Quadrant Wh, varh and VAh • Absolute Wh, varh and VAh |
Other Measured and Displayed Values | • Power: W, var, VA, Vrms, Irms • Power Factor, Frequency, Phasor Angles |
Physical Dimensions
Dimensions (H x W x D) | 263.5mm x 134mm x 51mm |
Weight | 1.1 kg (1.3 kg with Modem) |
Downloads
