Product Description

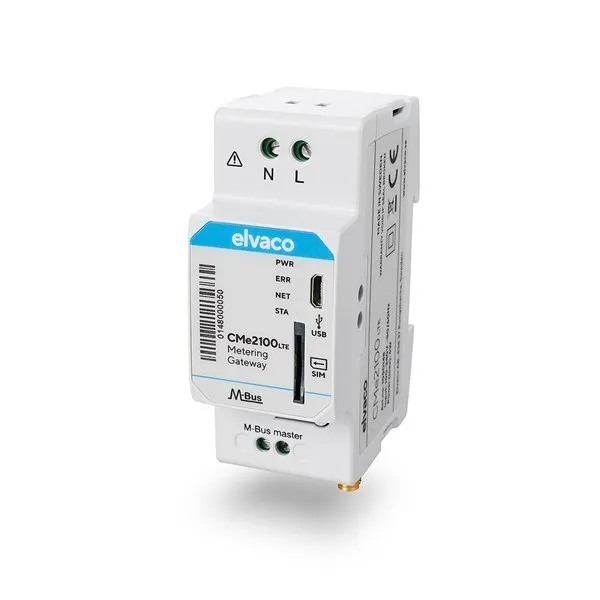

CMe2100 LTE is an M-Bus Metering Gateway for Mobile Networks with support for LTE communication and automatic fallback function (2G/3G/LTE). CMe2100 LTE reads up to 256 M-Bus meters, compiles meter data into customized reports and delivers it to a receiving system.

The product is equipped with an IR interface which enables it to communicate wireless with other devices from Elvaco's CMe/CMeX Series.

CMe2100 LTE is compatible with all other meters that use the M-Bus standard protocol. The product can be configured and updated remotely through text messages or HTTP, which means that settings can easily be changed without having to visit the installation site. An external antenna is needed for CMe2100 LTE, this is ordered separately.

The electronics of the CMe2100 LTE are safely housed in a robust, durable casing made of polyamide. A big advantage of the CMe2100 LTE M-Bus Metering Gateway is that the device can be maintained and configured both on-site and remotely.

Specification

Mechanics

Casing material	Polyamide
Protection class	IP20
Dimensions (WxHxD)	35 x 100 x 65 mm (2 DIN modules)
Weight	120g
Mounting	DIN-rail (DIN 50022) 35 mm

Electrical Connections

Supply voltage	Screw terminal. Cable 0.5-2.5 mm², 0.5 Nm tightening torque
M-Bus master port	Screw terminal. Cable 0.2-1.5 mm², 0.5 Nm tightening torque
USB master port	Type A
USB slave port	Type micro B
Network	Mobile (2G/3G/LTE)

Electrical Characteristics

Nominal voltage	100-240 VAC (±10%)
Frequency	50/60 Hz
Power consumption (max)	<6 W
Power consumption (nom)	<1 W
Installation Category	CAT 3

Environmental Specifications

Operating temperature	-20 °C to +55 °C
Operating humidity	5 % to 90 %, non-condensing
Operating altitude	0-2000m
Pollution degree	Degree 2
Usage environment	Indoors, can be extended with IP67 enclosure for outdoor use
Storage temperature	-40 °C to +85 °C

User Interface

Green LED	Power
Red LED	Error
Yellow LED	Network status
Push button	Factory reset
Configuration	SMS, HTTP, Telnet

M-Bus

Interfaces	IR, integrated M-Bus Master
M-Bus Standard	EN 13757
Transparent M-Bus	NET and TCP/IP (software limit does not apply to transparent M-Bus mode)
Decryption	No

Integrated M-Bus Master

Nominal voltage, master port	28 VDC
M-Bus baud rate, master port	2400 and 9600 bit/s
Maximum number of M-Bus devices (software limit)	256
M-Bus search modes	Primary, secondary
Maximum cable length	1000 m (100 nF/km, maximum 90 ohm)

General

Real-time clock backup	12 h
Real-time clock accuracy	<2 s/day
Script engine	Intelligent script engine for active content generation
Software/firmware update	HTTP
Metering reports	HTTP, FTP, SMTP (e-mail)
