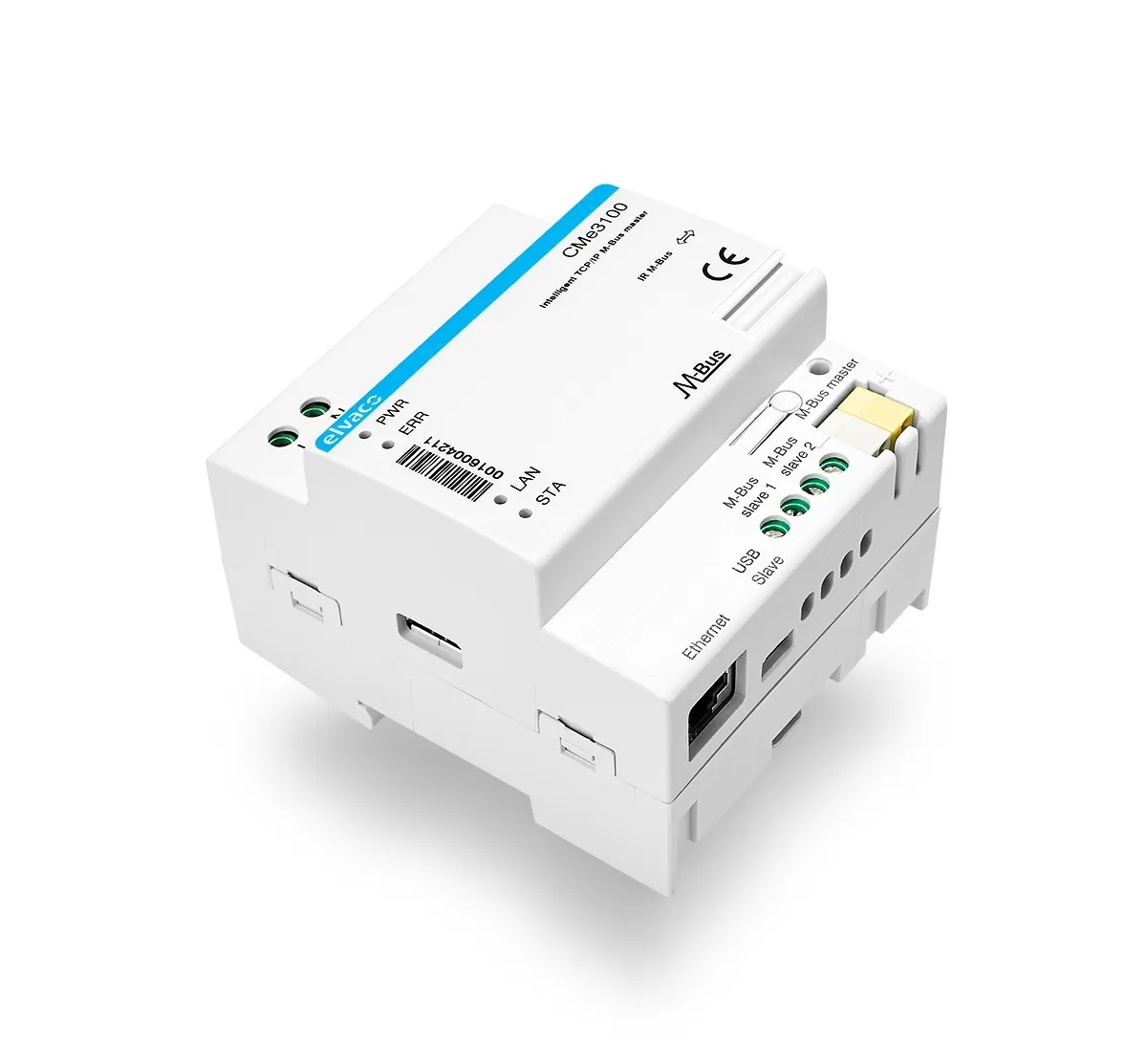

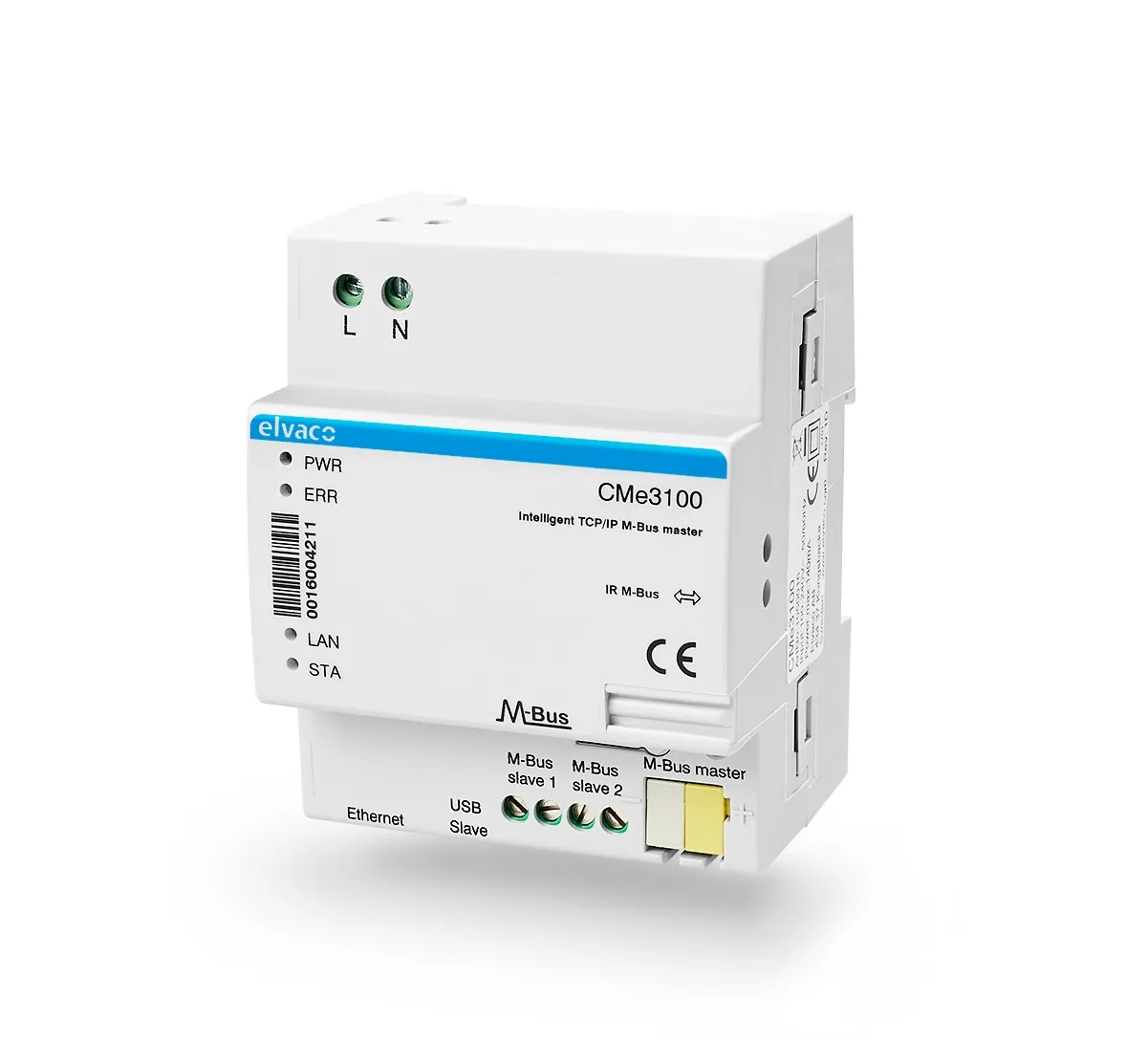

Elvaco CMe3100 M-Bus Gateway - up to 256 Meters on 1 Fixed Network
£845.00
£1,014.00 inc. VAT
Product Description
Elvaco's CMe3100 is a unique M-Bus Metering Gateway for Fixed Network which enables easy and reliable integration between meters and system. CMe3100 has the same functionality as other intelligent M-Bus Metering Gateways from Elvaco, such as full M-Bus decoder, storage functionality, delivery of meter values via e-mail, ftp and http as well as the ability to connect optional accessories from Elvaco via the IR interface.
Product Features:
- Up to 256 meters on 1 fixed network
- Ports: M-Bus Master, M-Bus slave 1, M-Bus Slave 2, USB master port, USB slave port, Network= RJ45 (Ethernet)
- Reading available virtually or directly transparent
- Large data storage: Up to 4 years connected to 128 meters
Specification
Mechanics
Casing material | Polyamide |
Protection class | IP20 |
Dimensions | 70 x 90 x 64 mm (4 DIN modules) |
Weight | 190 g |
Mounting | Mountedon DIN rail (DIN 50022) 35 mm |
Electrical
Nominal Voltage | 100-240 VAC (+/- 10%) |
Frequency | 50/60 Hz |
Power consumption (max) | <15 W |
Power consumption (nom) | <5 W |
Installation Category | CAT 3 |
Environmental
Operating temperature range | -25 °C to +55 °C |
Operating humidity | 5 % to 90 %, non-condensing |
Operating altitude | 0-2000 m |
Pollution degree | Degree 2 |
Usage environment | Indoors, can be extended with IP67 enclosure for outdoor use |
| Storage temperature | -40 °C to +85 °C |
Approvals
EMC | EN 61000-6-2, EN 61000-6-3 |
Safety | EN 61010-1, CAT 3 |
