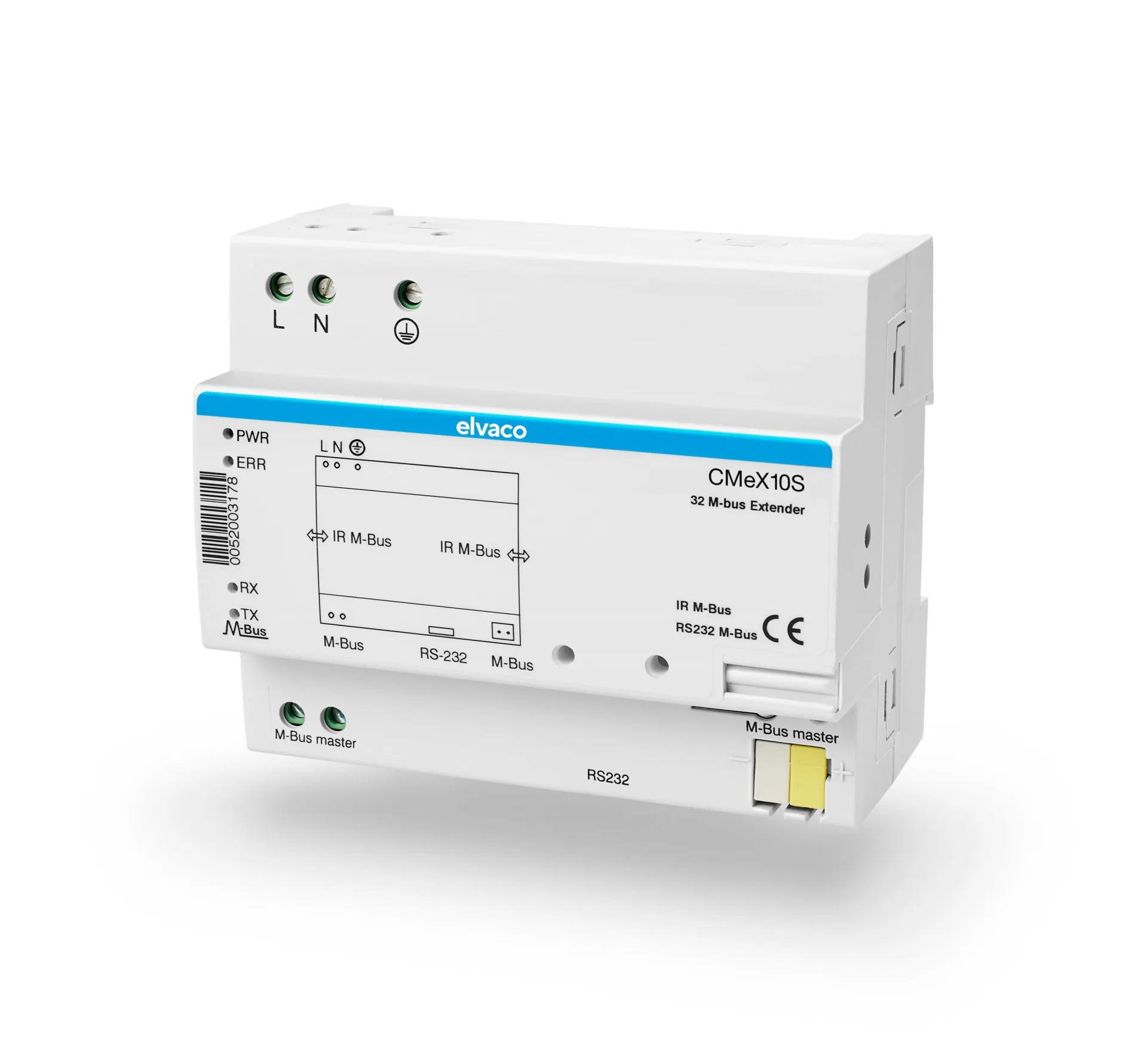

Elvaco CMeX10S - M-Bus Extender for 32 Meters

Name: Elvaco CMeX10S - M-Bus Extender for 32 Meters
Brand: Elvaco
Price: 462 GBP
Availability: BackOrder

Elvaco

Elvaco CMeX10S - M-Bus Extender for 32 Meters

Elvaco

£385.00

£462.00 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

Elvaco's CMeX10 Series (CMeX10-11 and CMeX10S-11S-12S-13S) makes it possible to expand your CMe series with up to 256 extra M-Bus slaves. The units can also be connected with any existing M-Bus system. The CMeX10 Series is equipped with the unique IR Pass Through function, making the products stackable.

Specification

Mechanics

Casing material	Polyamide
Protection class	IP20
Dimensions	90 x 65 x 108 mm
Weight	220 g
Connection M-Bus	Pin terminal solid wire 0.6-0.8 Ø mm and screw terminal cable 0-2.5 mm², 0.5 Nm tightening torque
Mounting	DIN Mounted
Power Supply	Screw terminal cable 0-2.5 mm², 0.5 Nm tightening torque

Electrical

Nominal Voltage	100-240 VAC
Voltage range	-10 % to +10 % of nominal voltage
Frequency	50/60 Hz
Power consumption (max)	25 W
Power consumption (nom)	1.5 mA x M-Bus slaves + 1 W
Installation Category	CAT 3

Environmental

Operating temperature range	-30 to +55 °C
Storage temperature range	-40 to +85 °C
Operating humidity max	80 % RH temperatures up to 31 °C, decreasing linearly to 50 %RH at 40 °C
Pollution	Degree 2
Operating altitude	0-2000 m
Usage	Indoor use only, can be extended with IP67 enclosure for outdoor use

M-bus

M-Bus standard	EN 13757
M-Bus baud rate	300 and 2400 Bit/s
Maximum connected M-Bus meters	32
Maximum cable length	1000 m/5000 m
Max load capacitance	1.5 uF
Light collision detect	>28 to 500 mA
RS232 to M-Bus	No/Yes
Break signal length M-Bus 2-wire and right IR interface	45 ms
Nominal voltage	28 VDC/42 VDC
Maximum idle current	55 mA
IR Interface	Yes
Pass Through	Yes. Maximum of 4 CMeX10 Series products side by side
Compatibility	All standard M-Bus meters, all ABB meters with IR interface, CMeX Series products
