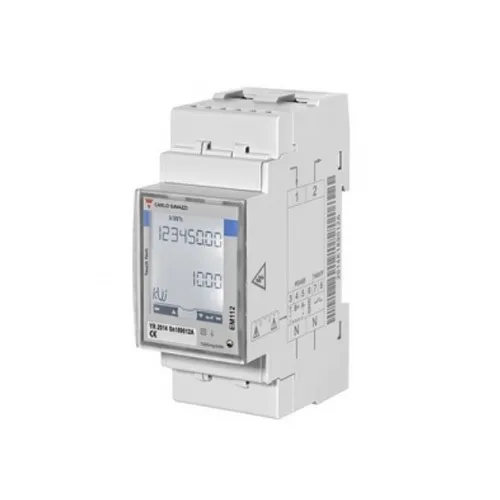

Carlo Gavazzi EM112 Single Phase MID Energy Analyzer with Modbus RS485 Port (EM112-DIN.AVO1.X.S1.PFB)

Name: Carlo Gavazzi EM112 Single Phase MID Energy Analyzer with Modbus RS485 Port (EM112-DIN.AVO1.X.S1.PFB)
Brand: Carlo Gavazzi
Price: 124.188 GBP
Availability: InStock

Carlo Gavazzi

Manufacturer Part No: EM112-DIN.AV01.X.S1.PFB

Carlo Gavazzi EM112 Single Phase MID Energy Analyzer with Modbus RS485 Port (EM112-DIN.AVO1.X.S1.PFB)

Carlo Gavazzi

Manufacturer Part No: EM112-DIN.AV01.X.S1.PFB

£103.49

£124.19 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

Carlo Gavazzi's EM112 range of meters are suitable for billing applications for small loads (up to 100A) with two tariff options for users. Housed in 2-DIN module fashion, the meter's small and compact design makes it ideal for quick installation.

Product Features:

Class 1 (kWh) according to EN62053-21
Class B (kWh) according to EN50470-3
Accuracy ±0.5% RDG (current/voltage)
Energy parameters: kWh, kVARh (imported/exported); kWh + 2 tariffs
System parameters: kW, kVAr, V, A, PF, Hz, kW Demand, kW demand peak
Energy readout on display: 8 digit
Variable readout on display: 4 digit
MID Certified
Four Quadrant Measuring (Import/Export)
Self power supply
Modbus RS485 output

Specification

Rated Inputs

Current type	1-phase loads, direct connection
Current rate	5(100)A
Nominal voltage	230VLN AC (AV0 option), 120 VLN (AV1 option)

Accuracy (@25°C ±5°C, R.H. ≤60%, 45 to 65 Hz)

AV1	Imin=0.25A Ib: 5A Imax: 100A Un: 120VLN -30% +30%
AV0	Imin=0.25A Ib: 5A Imax:100A Un: 230VLN -30% +20%
Active energy	Class 1 according to EN62053-21 and MID Annex MI-003 Class B (Class B (kWh) according to EN50470-3)
Reactive energy	Class 2 according to EN62053-23
Start-up current	40mA (AV0, AV1), positive or negative. Self-consumption is not measured.
Start-up voltage	84VLN (AV1), 161VLN (AV0)

Overloads

Current	Continuous: 100A @ 50Hz For 500ms: 2Un
Voltage	Continuous: 1.2 Un For 500ms: 2Un

General

Sampling rate	4096 samples/s @ 50Hz
Operating temperature	-25 to +65 °C, indoor, (R.H. from 0 to 90% noncondensing @ 40°C)
Storage temperature	-30°C to +80°C (R.H. < 90% noncondensing @ 40°C)
Overvoltage category	Cat. III
Temperature drifts	100ppm/°C
Standard	Safety: EN62052-11 Metrology: EN62053-21, EN50470-3
Approvals	CE, MID (PF option only)

Mechanical

Connections	Cable cross-section area: Measuring inputs: max. 25 mm², min. 5mm² with/without metallic cable ferrule; Max. screw tightening torque: 2.8 Nm Other Terminals: 1.5 mm², Min./Max. screws tightening torque: 0.5 Nm
Dimensions (W x H x D)	35 x 63 x 90 mm (2 DIN module)
Material	Noryl, self-extinguishing: UL 94 V-0
Sealing covers	Included
Mounting	DIN-rail
Protection degree	Front: IP51 Screw terminals (cable inputs): IP20
Weight	Approx. 160 g (packing included)
