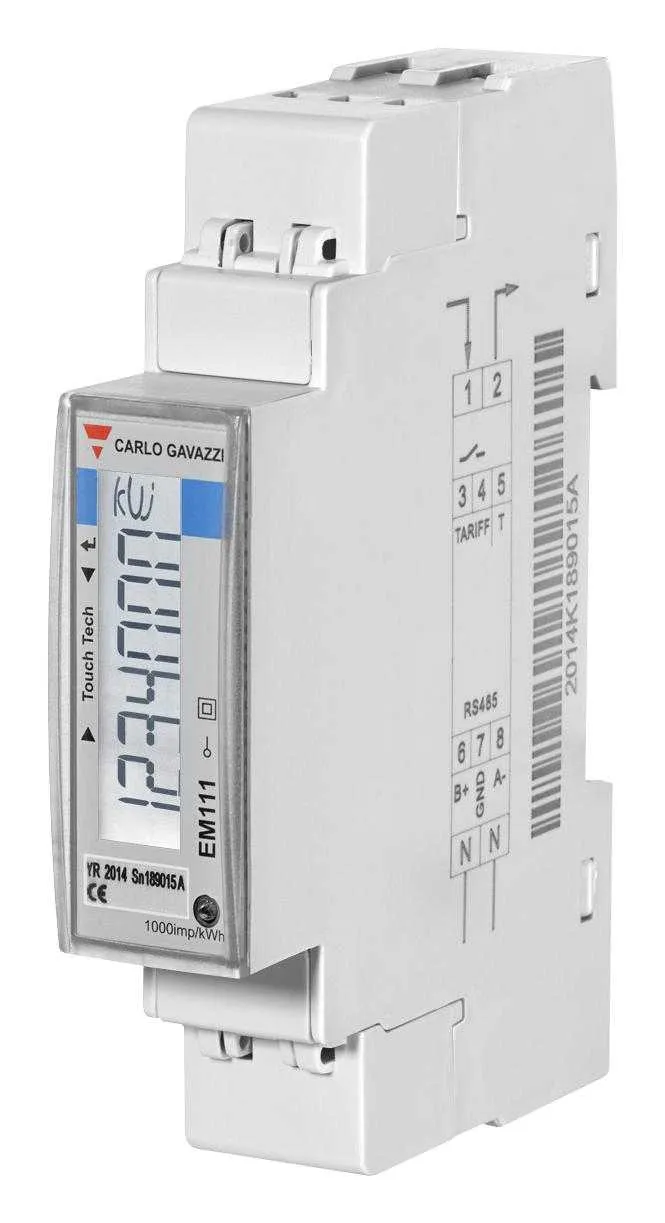

Carlo Gavazzi EM111 Single Phase MID Energy Analyzer with Modbus RS485 Port (EM111-DIN.AV8.1.X.S1.PFB)

Name: Carlo Gavazzi EM111 Single Phase MID Energy Analyzer with Modbus RS485 Port (EM111-DIN.AV8.1.X.S1.PFB)
Brand: Carlo Gavazzi
Price: 86.088 GBP
Availability: InStock

Carlo Gavazzi

Carlo Gavazzi EM111 Single Phase MID Energy Analyzer with Modbus RS485 Port (EM111-DIN.AV8.1.X.S1.PFB)

Carlo Gavazzi

£71.74

£86.09 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

Carlo Gavazzi's EM111 range of meters are suitable for active energy metering and cost applications up to 45A with dual tariff management availability. Housed in 1-DIN module fashion, the meter's small and compact design makes it ideal for quick installation.

Product Features:

Class 1 (kWh) according to EN62053-21
Class B (kWh) according to EN50470-3
Accuracy ±0.5% RDG (current/voltage)
Energy measurement: kWh and kvarh (imported/exported); kWh+ by 2 tariffs
System variables, kW, kvar, V, A, PF, Hz, kWdmd, kWdmd peak
Energy readout on display: 7 digit
Variable readout on display: 4 digit
MID Certified
Direct current measurement up to 45AAC
Self power supply
Modbus port

Specification

Rated Inputs

Current type	1-phase loads, direct connection
Current rate	5(45)A
Nominal voltage	230VLN AC (AV8 option), 120 VLN (AV7 option)

Accuracy (@25°C ±5°C, R.H. ≤60%, 45 to 65 Hz)

AV1	Imin=0.25A Ib: 5A Imax: 45A Un: 120VLN -30% +30%
AV0	Imin=0.25A Ib: 5A Imax: 45A Un: 230VLN -30% +20%
Active energy	Class 1 according to EN62053-21, and MID Annex MI-003 Class B (Class B (kWh) according to EN50470-3)
Reactive energy	Class 2 according to EN62053-23
Start-up current	20mA (AV7, AV8), -20mA (AV7, AV8) positive or negative Self-consumption is not measured.
Start-up voltage	84VLN (AV7), 161VLN (AV8)

Overloads

Current	Continuous: 45A, @ 50Hz For 10ms: 1350 A
Voltage	Continuous: 1.2 Un For 500ms: 2Un

General

Sampling rate	4096 samples/s @ 50Hz 4096 samples/s @ 60Hz
Operating temperature	-25 to +65 °C, indoor, (R.H. from 0 to 90% non- condensing @ 40°C)
Storage temperature	-30°C to +80°C (R.H. < 90% noncondensing @ 40°C)
Overvoltage category	Cat. III
Temperature drift	≤200ppm/°C
Standard	Safety: EN62052-11 Metrology: EN62053-21, EN50470-3
Approvals	CE, MID (PF option only)

Mechanical

Connections	Cable cross-section area: Measuring inputs: max. 6 mm² with/without metallic cable ferrule; Max. screw tightening torque: 1.1 Nm Other Terminals: 1.5 mm², Min./Max. screws tightening torque: 0.4 Nm
Dimensions (W x H x D)	17.5 x 91.5 x 63 mm
Material	Noryl, self-extinguishing: UL 94 V-0
Sealing covers	Included
Mounting	DIN-rail
Protection degree	Front: IP51 Screw terminals (cable inputs): IP20
Weight	Approx. 80 g (packing included)
