Find out moreCarlo Gavazzi EM24 DIN Rail 65A Direct Connect 3-Phase MID Energy Analyser with 2 Pulse Outputs (EM24-DIN.AV9.3.X.O2.PFB)

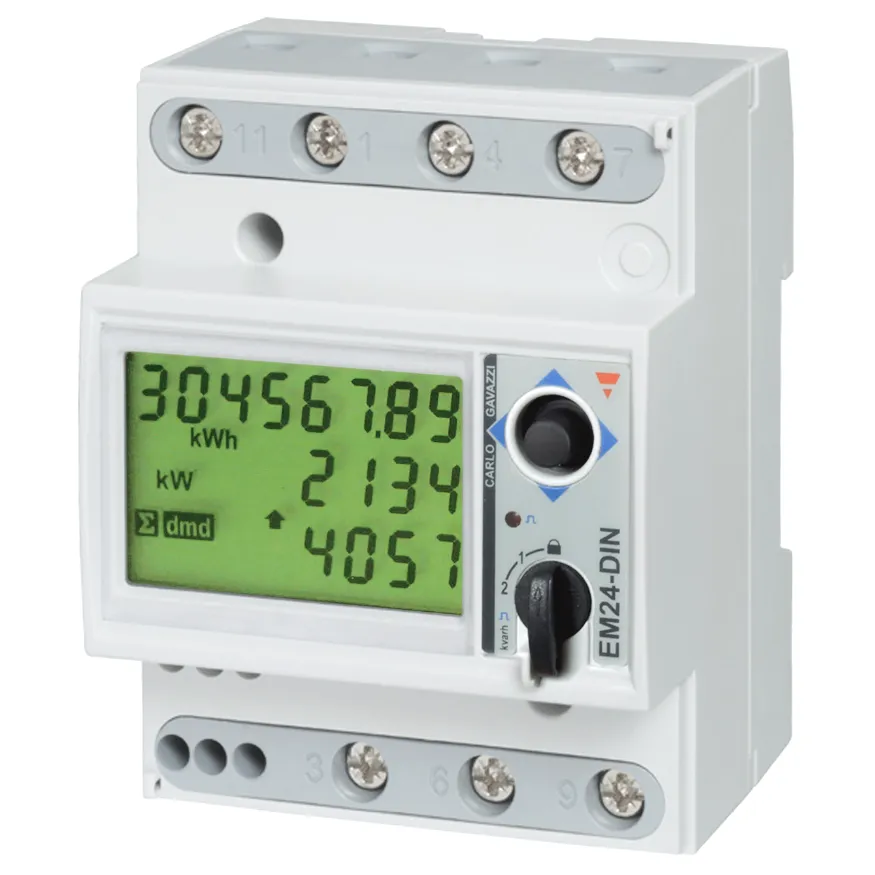

EM24 DIN 2
Carlo Gavazzi EM24 DIN Rail 65A Direct Connect 3-Phase MID Energy Analyser with 2 Pulse Outputs (EM24-DIN.AV9.3.X.O2.PFB)
£256.79
£308.15 inc. VAT
Product Description
Carlo Gavazzi's EM24 is a 3-phase, 65A, direct connected energy analyser that is suited for active and reactive energy metering and for cost allocation.
Specification
Classes | Class 1 (kWh) according to EN62053-21 Class B (kWh) according to EN50470-3 Class 2 (kvarh) according to EN62053-23 |
Accuracy | ±0.5 RDG (current/voltage) |
Instantaneous variables readout | 4 DGT |
Energies/gas/water readout | 8 DGT |
System variables | VLL, VLN, Admd max, VA, VAdmd, VAd-md max, W, Wdmd, Wdmd max, var, PF, Hz, Phase-sequence |
Single phase variables | VLL, VLN, A, VA, W, var, PF |
Energy measurements | Total and partial kWh and kvarh or based on 4 different tariffs; single phase measurements |
Protection degree | Front: IP50 Screw terminals: IP20 |
Operating temperature | -25°C to +55°C (-13°F to 131°F) (R.H. from 0 to 90% non-condensing @ 40°C) according to EN62053-21, EN50470-1 and EN62053- 23 |
Storage temperature | -30°C to +70°C (-22°F to 158°F) (R.H. < 90% non- condensing @ 40°C) according to EN62053-21, EN50470-1 and EN62053- 23 |
Dimensions (WxHxD) | 71 x 90 x 64.5 mm (4-DIN modules) |
Material | Nylon PA66, self-extinguishing: UL 94 V-0 |
Mounting | DIN-rail |
Weight | Approx. 400g (packing included) |
