Emlite ECA2 MID Single Phase 100A Direct Connected Meter
In stock
£33.00
£39.60 inc. VAT

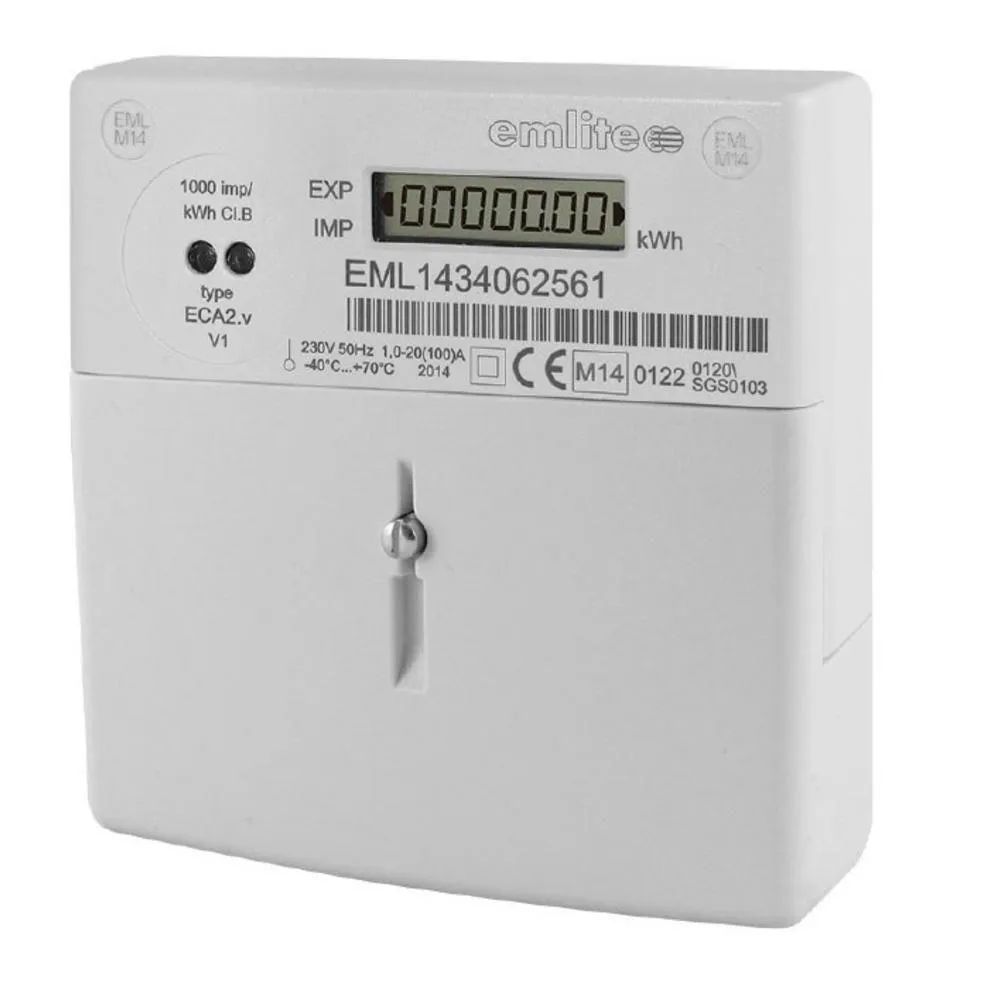

Emlite ECA2 MID Single Phase 20-100A Direct Connected Meter with Extended Terminal Cover
ECA2 plus extended cover
Emlite ECA2 MID Single Phase 20-100A Direct Connected Meter with Extended Terminal Cover
£38.00
£45.60 inc. VAT
Product Description
Emlite's ECA2 is a Single Phase 20-100A MID (2004/22/EC) approved meter. It provides measurements of active (kWh) energy with registers shown on a large, easy to read LCD display.
The meter features an optical probe conforming to IEC 629056-21, allowing meter readings to be collected electronically using a standard probe and software tool.
Product includes: ECA2 Single Phase meter & extended terminal cover
Specification
| Nominal Voltage | 220 - 240V, 276V max |
|---|---|
| Voltage Withstand | 415V (maximum 6 hours) |
| Nominal Frequency | 50Hz, variation ± 5% |
| Basic Current (Iref) | 5, 10, 15 and 20A |
| Maximum (Imax) | 100A (140% overcurrent) |
| Accuracy - Active Energy | Class B 1%, to EN50470 1-3 |
| Temperature Range | -40°C to +70°C |
| Ingress Protection | IP52 to BS 60529 |
| Terminal Arrangement | BS 7856 |
| Main Terminal Size | 8.2mm diameter |
| Terminal Construction | Solid brass |
| Dimensions (W x H x D) | 125 x 91 x 40mm |
Downloads
Ask an expert about the
ECA2 with Extended Cover
