Find out moreEmlite EMP1.AV Three Phase 100A MID kWh Meter

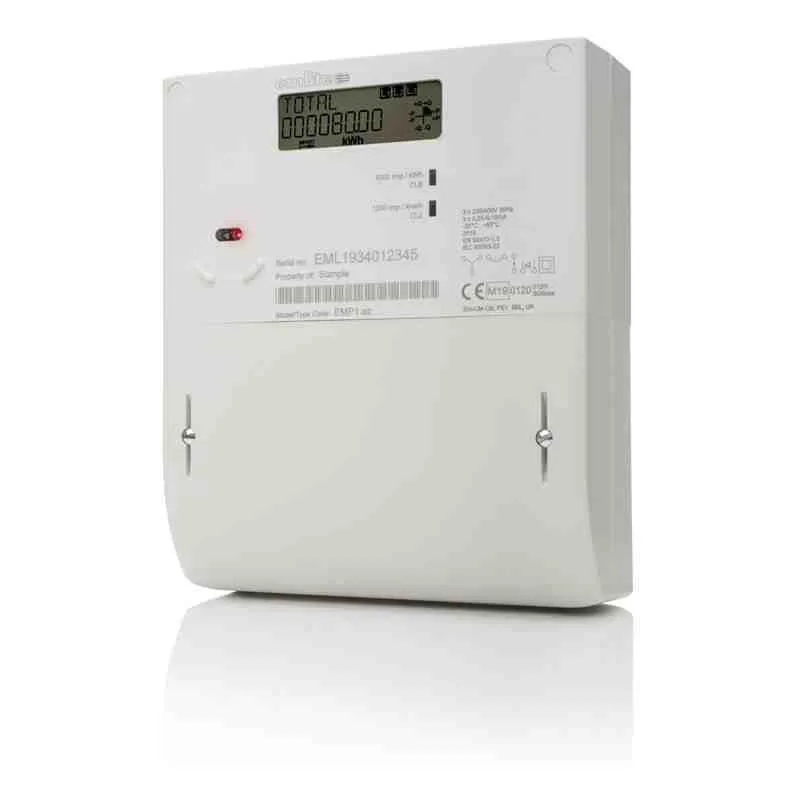

Emlite EMP1 av
Emlite EMP1.AV Three Phase 100A MID kWh Meter
£105.00
£126.00 inc. VAT
Product Description
The Emlite EMP1.AV Three phase meter offers a simple and highly accurate solution for domestic, commercial, Solar PV and light industrial applications.
Product Details:
- Fully MID approved
- 4 quadrant power measurement (Import and Export, Active and Reactive Energy)
- Optional Power Quality Information – Volts, Current, Power etc.
- Optional pulsed output
- Solid brass terminals
- Multiple terminal cover options: Short & Extended (Standard)
- Clear easy to read 8 digit LCD with specific symbols for different quantities.
Specification
General
Nominal voltage | 3x230v |
Voltage withstand | 400V continuously |
Nominal frequency | 50Hz, variation ±5% |
Base current (Iref) | 5, 10, 15 and 20* |
Maximum (Imax) | 100A |
Active energy | Class B, to EN 50470 1-3* |
Reactive Energy | Class 2, to IEC 62053–23 |
Temperature range | -25°C to +55°C |
Ingress protection | IP54, to BS EN60529 |
Terminal arrangement | DIN43857-Part 2, fixing centres of 150±1mm |
Main terminal size | 8.2mmø ± 0.2 |
Terminal construction | Solid brass |
Dimensions (WxHxD) | 170 x 200.2 x 65mm |
