Hobut CTSCWH mV Spilt-Core Current Transformer Series

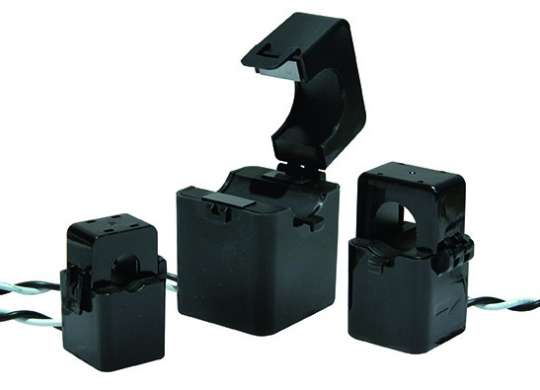

Mv split core group
Hobut CTSCWH mV Spilt-Core Current Transformer Series
£25.00
£30.00 inc. VAT
Product Description
Hobut's CTSC mV Current Transformer is designed to fit into confined spaces while the Primary conductor is still live. This range of current transformers are compactly designed with a mechanical hinge for multiple opening and closing action.
Product Features:
- High Sensitivity
- Linearity with minimum phase shift
- 0.333V AC secondary output at rated current
- Mechanical hinge
Dimensions
Specification
30A | 60A | 120A | 250A | 500A | |
A | 41.7 | 41.7 | 53.0 | 69.0 | 83.5 |
B | 26.4 | 26.4 | 31.0 | 38.6 | 51.2 |
C | 28.7 | 28.7 | 29.9 | 43.5 | 51.2 |
D | 15.0 | 15.0 | 18.2 | 20.4 | 26.1 |
E | 25.3 | 25.3 | 32.0 | 41.0 | 24 |
F | 10 | 10 | 16 | 24 | 35 |
| Accuracy | Class 1 |
|---|---|
| Input Frequency | 50 to 400Hz |
| Maximum Primary Voltage | 720V AC |
| Dielectric Withstand Voltage | 2.5Kv for 1 minute |
| Construction | -15C to +50C |
| Operating Temperature | Ferrite core materia |
| Enclosure | Case nylon UL flame retardent rating 94V-0 |
| Lead | 1 metre long flying lead twisted pair (22AWG) |
| Dimensions (W x H x D) | 116 x 104.5 x 35.5mm |
| Aperture | 40mm |
Downloads
