Hobut RCR-PM-V30 Earth Leakage Relay for Single or Three Phase Systems
In stock
£96.00
£115.20 inc. VAT

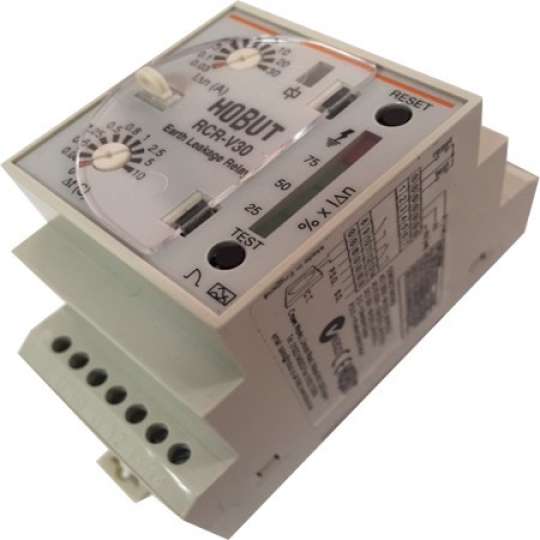

Hobut RCR-V30 Earth Leakage Relay for Single or Three Phase Systems
RCR V30
RCR V30
RCR V30 DIMENSIONS
Hobut RCR-V30 Earth Leakage Relay for Single or Three Phase Systems
£96.00
£115.20 inc. VAT
Product Description
Hobut RCR-V30 is an Earth Leakage Relay used to monitor earth leakage current and operate as a relay. The device can be used to shut down a system or operate an alarm.
Specification
Supply Voltage | 24, 115/230, 400V AC (85-115%), 12-125V DC (85-110%), 10-60V DC (90-110%) |
Power Consumption | 6VA |
Output | 1 x SPNO relay 1 x SPDT relay |
Terminal Conductor | ≤ 2.5mm2 stranded ≤ 4mm2 solid |
Terminal Protection | IP20 |
Ambient Temperature | -20 to +55°C |
Relative Humidity | +95% |
Weight | 200g |
Time Delay | 0-10 seconds |
Sensitivity | 30mA - 30A |
Enclosure | UL94VO Flame Retardant |
Dimensions (W x H x D) | 63.5 x 85 x 44mm |
Approvals | IEC 60755, 60947, 62020, 61543 |
Mounting | DIN Rail |
Downloads
Ask an expert about the
Hobut RCR-V30 Earth Leakage Relay for Single or Three Phase Systems
