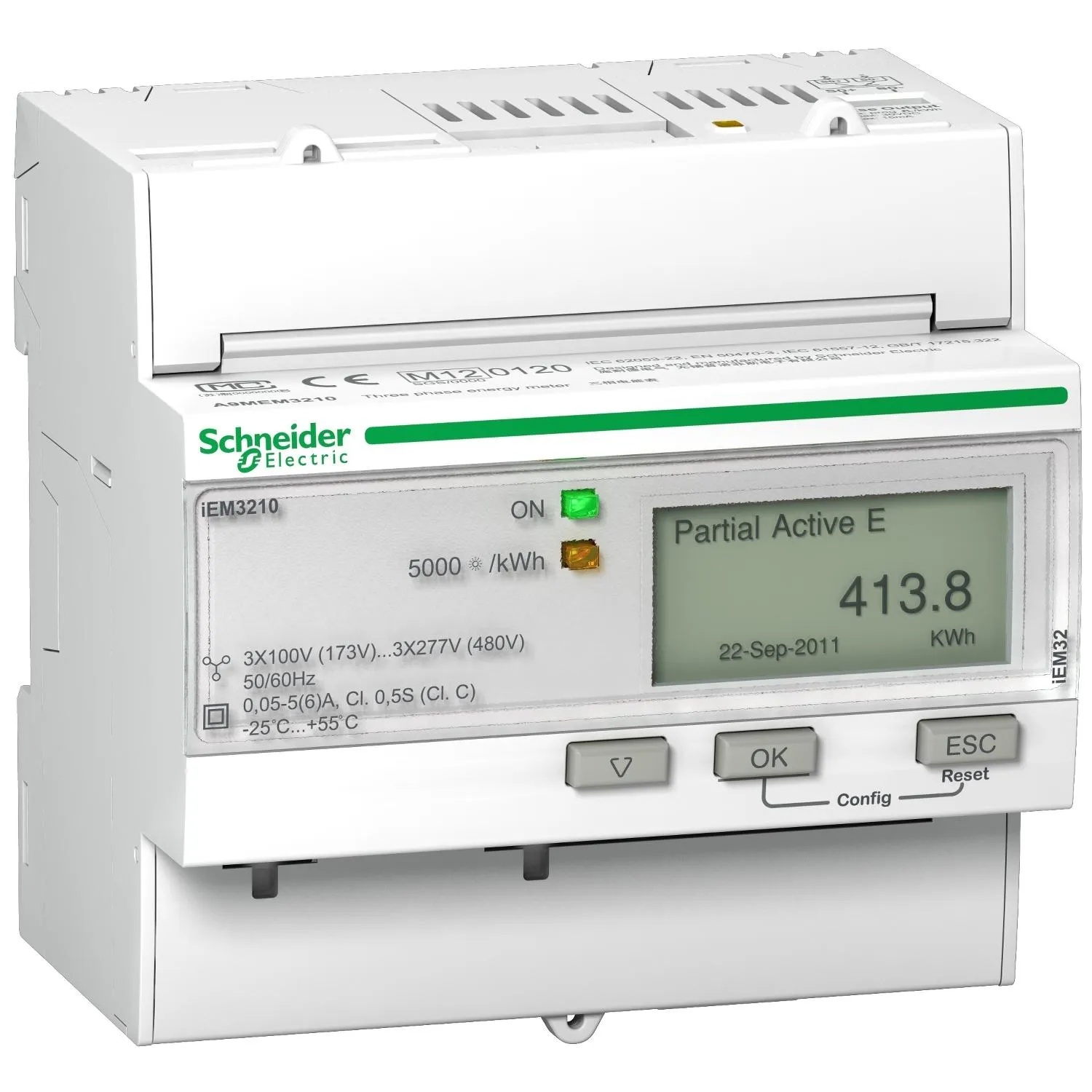

Schneider A9MEM3210 MID 3-Phase CT Connected DIN Pulse Output Energy Meter

Name: Schneider A9MEM3210 MID 3-Phase CT Connected DIN Pulse Output Energy Meter
Brand: Schneider Electric
Price: 363.768 GBP
Availability: InStock

Schneider Electric

Manufacturer Part No: A9MEM3210

Schneider A9MEM3210 MID 3-Phase CT Connected DIN Pulse Output Energy Meter

Schneider Electric

Manufacturer Part No: A9MEM3210

£303.14

£363.77 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

The Acti 9 iEM3000 Energy Meter Series from Schneider Electric offers a cost-attractive, competitive range of DIN rail-mounted energy meters ideal for sub-billing and cost allocation applications. Combined with communication systems, like Smart Link, the Acti 9 iEM3000 Series makes it easy to integrate electrical distribution measurements into facility management systems.

Specification

1 A / 5 A CTs (max current)	6A
Meter constant LED	500/kWh
Pulse output frequency	Up to 1000p/kWh
Multi-tariff	-
Communication	-
DI/DO	0/1
MID (EN50470-3)	✓
Network	1P+N, 3P, 3P+N
Accuracy class	Class 0.5S (IEC 62053-22 and IEC61557-12) Class C (EN50470-3) For 1 A CTs Class 1 (IEC6253-21 and IEC61557-12 Class B (EN50470-3)
Wiring capacity	6 mm² for currents and 4 mm² for voltages
Display max	LCD 99999999.9kWh or 99999999.9MWh
Voltage (L-L)	3 x 100/173 V AC to 3 x 277/480 V AC (50/60 Hz)
IP protection	IP40 front panel and IP20 casing
Temperature	-25°C to 55°C (K55)
Product size	5 steps of 18 mm
Overvoltage and measurement	Category III, Degree of pollution 2
kWh	✓
kVARh	-
Active power	-
Reactive power	-
Currents and voltages	-
Overload alarm	-
Hour counter	-
