Schneider A9MEM3275 MID 3-Phase CT Connected DIN LON Communication Energy Meter
IEM3275

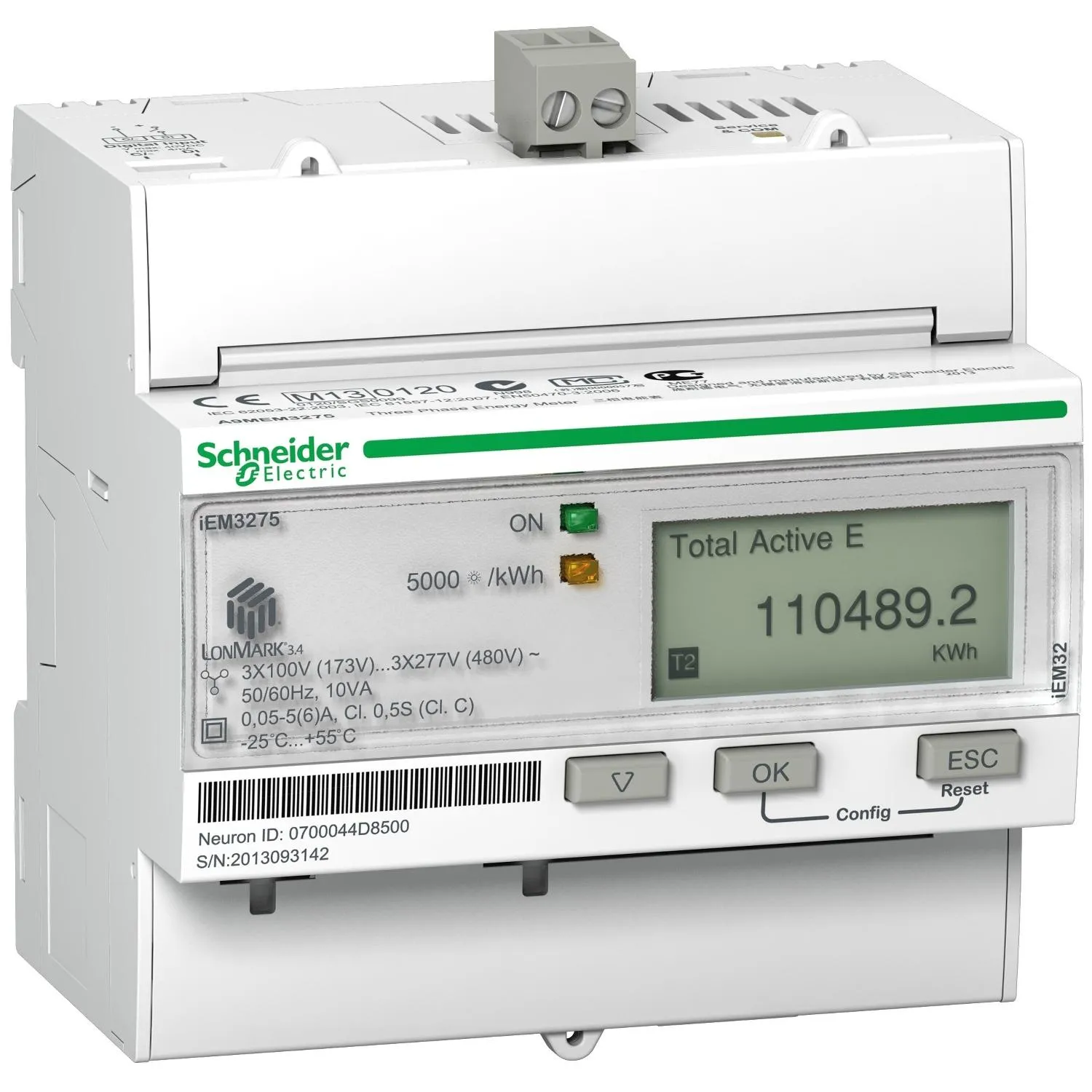

Schneider A9MEM3275 MID 3-Phase CT Connected DIN LON Communication Energy Meter
£426.98
£512.38 inc. VAT
Product Description
The Acti 9 iEM3000 Energy Meter Series from Schneider Electric offers a cost-attractive, competitive range of DIN rail-mounted energy meters ideal for sub-billing and cost allocation applications. Combined with communication systems, like Smart Link, the Acti 9 iEM3000 Series makes it easy to integrate electrical distribution measurements into facility management systems.
Specification
1 A / 5 A CTs (max current) | 6A |
Meter constant LED | 500/kWh |
Pulse output frequency | - |
Multi-tariff | 4 tariffs |
Communication | LON |
DI/DO | 1/0 |
MID (EN50470-3) | ✓ |
Network | 1P+N, 3P, 3P+N |
Accuracy class | Class 0.5S (IEC 62053-22 and IEC61557-12) Class C (EN50470-3)
For 1 A CTs Class 1 (IEC6253-21 and IEC61557-12 Class B (EN50470-3) |
Wiring capacity | 6 mm² for currents and 4 mm² for voltages |
Display max | LCD 99999999.9kWh or 99999999.9MWh |
Voltage (L-L) | 3 x 100/173 V AC to 3 x 277/480 V AC (50/60 Hz) |
IP protection | IP40 front panel and IP20 casing |
Temperature | -25°C to 55°C (K55) |
Product size | 5 steps of 18 mm |
Overvoltage and measurement | Category III, Degree of pollution 2 |
kWh | ✓ |
kVARh | ✓ |
Active power | ✓ |
Reactive power | ✓ |
Currents and voltages | ✓ |
Overload alarm | ✓ |
Hour counter | ✓ |
