Schneider A9MEM3335 MID 3-Phase 125A Direct Connection M-Bus DIN MID Energy Meter
IEM3335

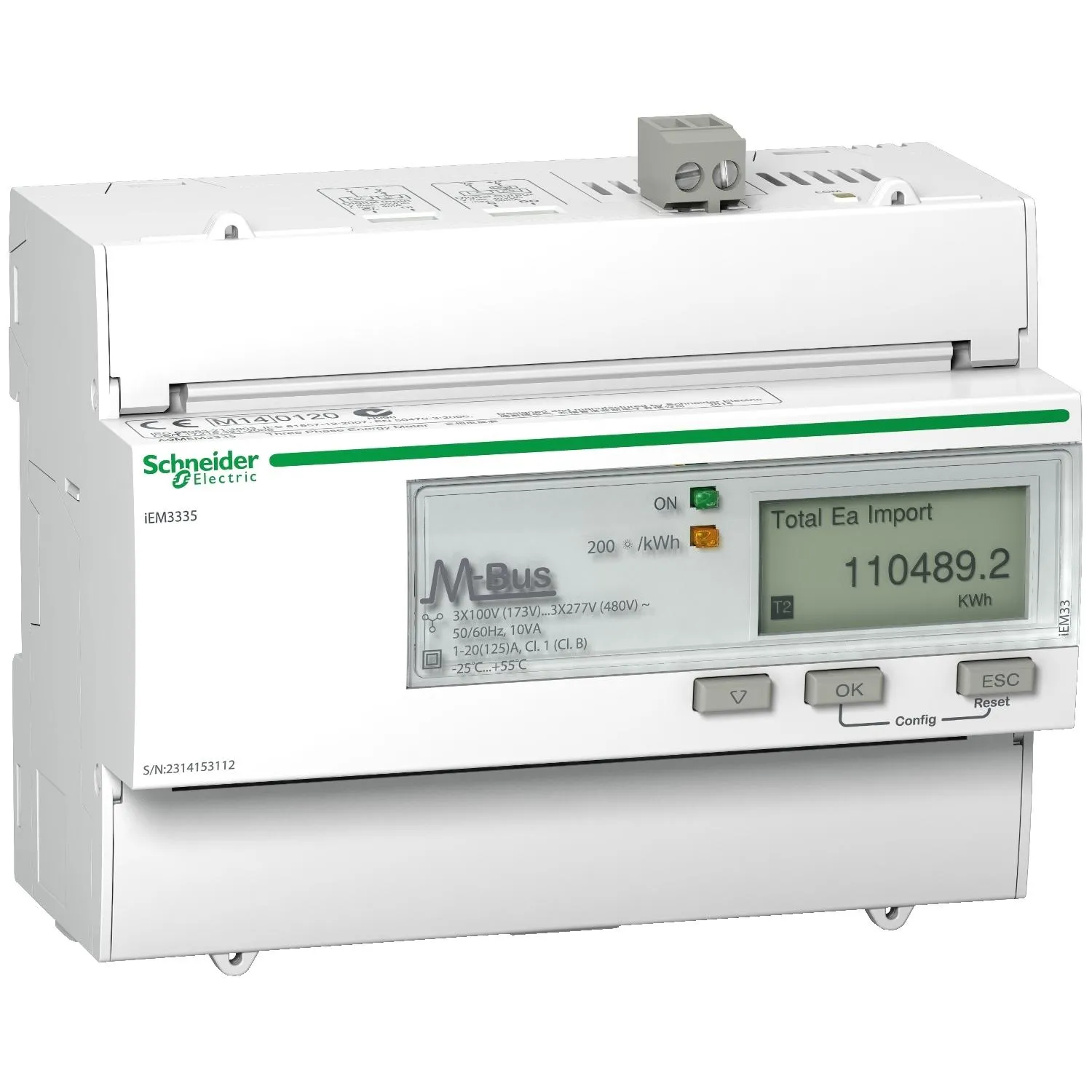

Schneider A9MEM3335 MID 3-Phase 125A Direct Connection M-Bus DIN MID Energy Meter
£420.04
£504.05 inc. VAT
Product Description
The Acti 9 iEM3000 Energy Meter Series from Schneider Electric offers a cost-attractive, competitive range of DIN rail-mounted energy meters ideal for sub-billing and cost allocation applications. Combined with communication systems, like Smart Link, the Acti 9 iEM3000 Series makes it easy to integrate electrical distribution measurements into facility management systems.
Specification
Current (max.) Direct connected (iem31xx) | 125A |
Meter constant LED | 500/kWh |
Pulse output | Up to 1000p/kWh |
Multi-tariff | 4 tariffs |
Communication | M-bus |
DI/DO | 1/1 |
MID (EN50470-3) | ✓ |
Network | 1P+N, 3P, 3P+N |
Accuracy class | Class 1 (IEC 62053-21 and IEC61557-12) Class B (EN50470-3) |
Wiring capacity | 50 mm² |
Display max | LCD 99999999.9kWh |
Voltage (L-L) | 3 x 100/173 V AC to 3 x 277/480 V AC (50/60 Hz) |
IP protection | IP40 front panel and IP20 casing |
Temperature | -25°C to 55°C (K55) |
Product size | 8 x 18 mm |
Overvoltage and measurement | Category III, Degree of pollution 2 |
kWh | ✓ |
kVARh | ✓ |
Active power | ✓ |
Reactive power | ✓ |
Currents and voltages | ✓ |
Overload alarm | ✓ |
Hour counter | ✓ |
