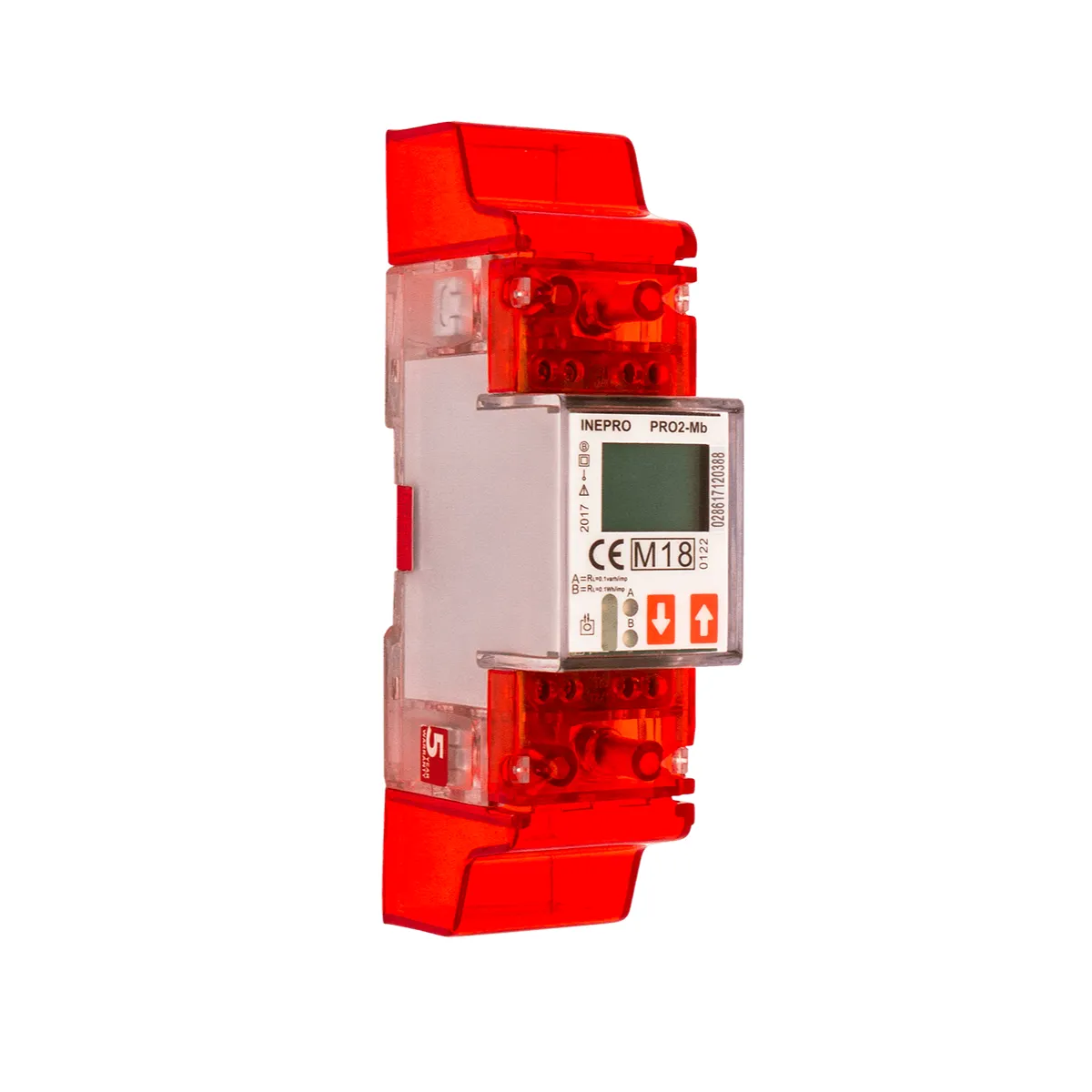

Inepro PRO2-Mb Single Phase 100A DC MID Energy Meter

Name: Inepro PRO2-Mb Single Phase 100A DC MID Energy Meter
Brand: Inepro
Price: 74.172 GBP
Availability: InStock

Inepro

Inepro PRO2-Mb Single Phase 100A DC MID Energy Meter

Inepro

£61.81

£74.17 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

The PRO2 series is a range of single phase energy meters consisting of 4 different types. They are available in a standard, M-bus or Modbus version. All meter types are equipped with an infrared interface and a selectable pulse output.

PRO2 energy meters display a number of instantaneous variables like voltage, current, active power, reactive power, apparent power, frequency and power factor on the LCD and via the different communication options. For calculating the total energy usage, there are 7 calculation modes available. All forward (import) and reverse (export) (re)active energy values are stored in different meter registers.

The PRO2 energy meters have an exceptional combination of a high accuracy class (1/B) for active energy measurement and a broad temperature range.

All meters comply with the Measuring Instruments Directive 2014/32/EU. The MID approval ensures the accuracy and quality of the meter and enables its use in billing purposes.

Specification

General

Casing	PC flame resistant plastic
Nominal voltage (Un)	230V AC
Operational voltage	195-253VAC
Insulation capabilities	•AC voltage withstand = 4KV for 1 minute • Impulse voltage withstand = 6KV – 1,2μS waveform
Base current Ib	5A
Maximum rated current (Imax)	100A
Operational current range	0,4%Ib-Imax
Overcurrent withstand	30Imax for 0,01s
Operational frequency range	50Hz ±10%
Internal power consumption	≤1W/Phase - ≤1VA/Phase
Test output flash rate (RED LED)	10.000 imp/kWh
Pulse output rate	10.000/2.000/1.000/100/10/1/0,1/0,01 imp/kWh
Pulse width	• 1.000/100/10/1/0,1/0,01 imp/kWh = 31ms • 2.000 imp/kWh < 30kW = 31ms • 2.000 imp/kWh > 30kW = 15ms • 10.000 imp/kWh < 6kW = 31ms • 10.000 imp/kWh > 6kW = 15ms • 10.000 imp/kWh > 12kW = 5ms
Data store	The data can be stored for more than 10 years without power

Infrared Specification

Infrared wavelengths	900- 1000nm
Communication Distance	Direct contact
Protocol	IEC62056-21:2002 (IEC1107)

Environmental

Operating humidity	≤ 75%
Storage humidity	≤ 95%
Operating temperature	-40°C - +70°C
International standard	EN50470-1/3
Accuracy class	B (=1% accuracy)
Protection against penetration of dust and water	IP51
Insulating encased meter of protective class	II

M-bus Communication (PRO2-MB)

Bus type	M-bus
Baud rate	300, 600, 1200, 2400 (default), 4800 and 9600
Range	≤1000m 64 PCS*
Downlink signal	Master to slave. Voltage modulation
Uplink signal	Slave to master. Current modulation
Cable	JYSTY (nx2x0,8)
Protocol	EN13757-3
Unit loads	± 2
Max. number of meters	64*

^{*Note that the maximum number of meters is dependent on the converter, baudrate (the higher the baudrate, the
smaller the number of meters which can be used) and the circumstances under which the meters are installed.}

Dimensions

Height without protective cover	92,5 mm
Height	141,5 mm
Width	35,8 mm
Depth	63 mm
Max. diameter power connection clamps	35 mm² (solid copper)
Weight	0,16 Kg (net)
