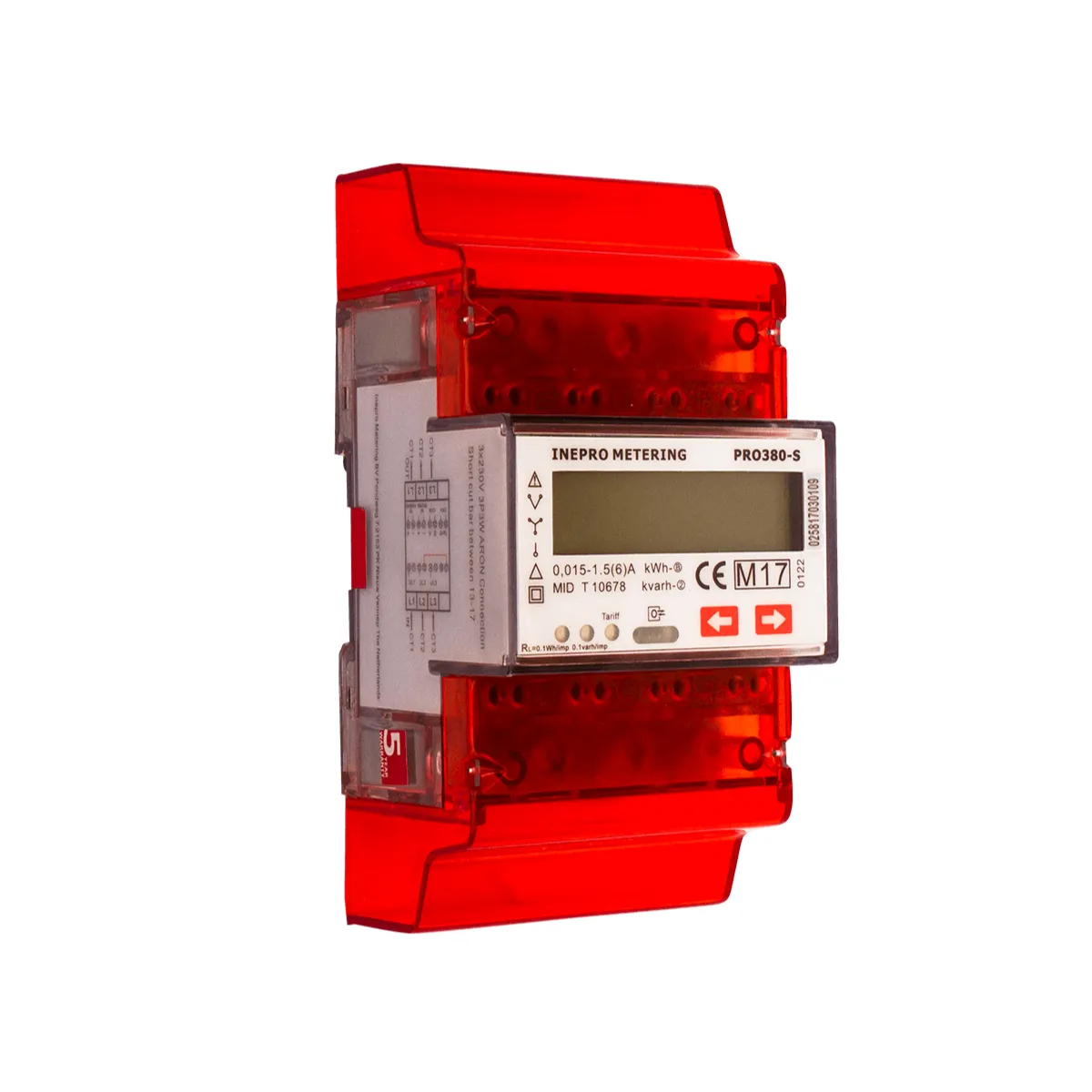

Inepro PRO380-S Three Phase 5A CT MID Energy Meter

Name: Inepro PRO380-S Three Phase 5A CT MID Energy Meter
Brand: Inepro
Price: 150 GBP
Availability: BackOrder

Inepro

Inepro PRO380-S Three Phase 5A CT MID Energy Meter

Inepro

£125.00

£150.00 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

The PRO380 series is a range of 4 module, three phase energy meters consisting of 3 different types. They are available in a standard, M-bus or Modbus version. All meter types are equipped with an infrared interface and a selectable pulse output.

PRO380 energy meters display a number of instantaneous variables like voltage, current, active power, reactive power, apparent power, frequency and power factor on the LCD and via the different communication options. For calculating the total energy usage, there are 7 calculation modes available. All forward (import) and reverse (export) (re)active energy values are stored in different meter registers.

The PRO380 energy meters have an exceptional combination of a high accuracy class (1/B) for active energy measurement, a broad temperature range of -40°C to +70°C and an Imax of 100A.

All meters comply with the Measuring Instruments Directive 2014/32/EU. The MID approval ensures the accuracy and quality of the meter and enables its use in billing purposes.

Specification

General

Casing	PC flame resistant plastic
Nominal voltage (Un)	230/400V AC (3~)
Operational voltage	3*230/400V ±20%
Insulation capabilities	•AC voltage withstand = 4KV for 1 minute • Impulse voltage withstand = 6KV – 1,2μS waveform
Base current Ib	5A (1,5A for CT version)
Maximum rated current (Imax)	100A (6A for CT version)
Operational current range	0,4%Ib-Imax
Overcurrent withstand	30Imax for 0,01s
Operational frequency range	45-60Hz
Internal power consumption	≤2W/Phase - ≤10VA/Phase (active - reactive)
Test output flash rate (RED LED)	10.000 imp/kWh
Pulse output rate	10.000/2.000/1.000/100/10/1/0,1/0,01 imp/kWh
Pulse width	1.000/2.000/10.000 pulses • 0 – 4.999W 40ms • 5.000 – 9.999W 20ms • 10.000 – 19.999W 10ms • 20.000 – 39.999W 5ms • > 40.000W 2,5ms 100 pulses • < 50.000W 40ms • > 50.000W 20ms Other pulses • Always 40ms
Data store	The data can be stored for more than 10 years without power

Infrared Specification

Infrared wavelengths	900- 1000nm
Communication Distance	Direct contact
Protocol	IEC62056-21:2002 (IEC1107)

Environmental

Operating humidity	≤ 75%
Storage humidity	≤ 95%
Operating temperature range	• DC = -40°C - +70°C • CT = -25°C - +70°C
International standard	EN50470-1/3
Accuracy class	B (=1% accuracy)
Protection against penetration of dust and water	IP51
Insulating encased meter of protective class	II

Dimensions

Height without protective cover	92,4 mm
Height	141 mm
Width	70 mm
Depth	63 mm
Max. diameter power connection clamps	• Flex core = 25mm² • Solid Copper = 35mm²
Weight	0,39 Kg (net)
