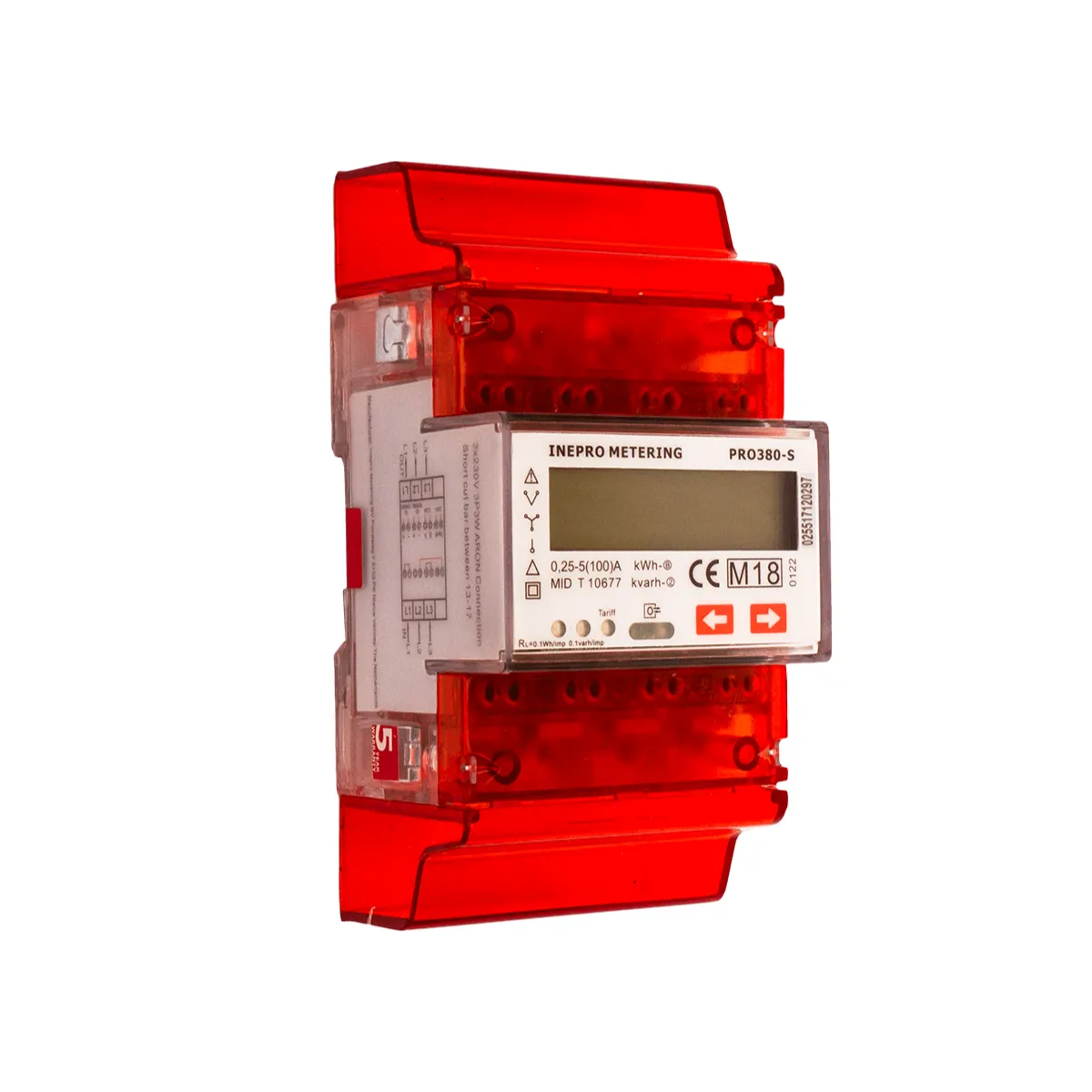

Inepro PRO380-S Three Phase 100A DC MID Energy Meter

Inepro PRO380-S Three Phase 100A DC MID Energy Meter

£125.00

£150.00 inc. VAT

Product Description

The PRO380 series is a range of 4 module, three phase energy meters consisting of 3 different types. They are available in a standard, M-bus or Modbus version. All meter types are equipped with an infrared interface and a selectable pulse output.

PRO380 energy meters display a number of instantaneous variables like voltage, current, active power, reactive power, apparent power, frequency and power factor on the LCD and via the different communication options. For calculating the total energy usage, there are 7 calculation modes available. All forward (import) and reverse (export) (re)active energy values are stored in different meter registers.

The PRO380 energy meters have an exceptional combination of a high accuracy class (1/B) for active energy measurement, a broad temperature range of -40°C to +70°C and an Imax of 100A.

All meters comply with the Measuring Instruments Directive 2014/32/EU. The MID approval ensures the accuracy and quality of the meter and enables its use in billing purposes.

Specification

General

Casing

PC flame resistant plastic

Nominal voltage (Un)

230/400V AC (3~)

Operational voltage

3*230/400V ±20%

Insulation capabilities

•AC voltage withstand = 4KV for 1 minute

• Impulse voltage withstand = 6KV – 1,2μS waveform

Base current Ib

5A (1,5A for CT version)

Maximum rated current (Imax)

100A (6A for CT version)

Operational current range

0,4%Ib-Imax

Overcurrent withstand

30Imax for 0,01s

Operational frequency range

45-60Hz

Internal power consumption

≤2W/Phase - ≤10VA/Phase (active - reactive)

Test output flash rate (RED LED)

10.000 imp/kWh

Pulse output rate

10.000/2.000/1.000/100/10/1/0,1/0,01 imp/kWh

Pulse width

1.000/2.000/10.000 pulses

• 0 – 4.999W 40ms

• 5.000 – 9.999W 20ms

• 10.000 – 19.999W 10ms

• 20.000 – 39.999W 5ms

• > 40.000W 2,5ms

100 pulses

• < 50.000W 40ms

• > 50.000W 20ms

Other pulses

• Always 40ms

Data store

The data can be stored for more than 10 years without power

Infrared Specification

Infrared wavelengths

900- 1000nm

Communication Distance

Direct contact

Protocol

IEC62056-21:2002 (IEC1107)

Environmental

Operating humidity

≤ 75%

Storage humidity

≤ 95%

Operating temperature range

• DC = -40°C - +70°C

• CT = -25°C - +70°C

International standard

EN50470-1/3

Accuracy class

B (=1% accuracy)

Protection against penetration of dust and water

IP51

Insulating encased meter of protective class

II

Dimensions

Height without protective cover

92,4 mm

Height

141 mm

Width

70 mm

Depth

63 mm

Max. diameter power connection clamps

• Flex core = 25mm²

• Solid Copper = 35mm²

Weight

0,39 Kg (net)
