Emlite ECA2 MID Single Phase 100A Direct Connected Meter
£33.00
£39.60 inc. VAT
£190.00
£228.00 inc. VAT

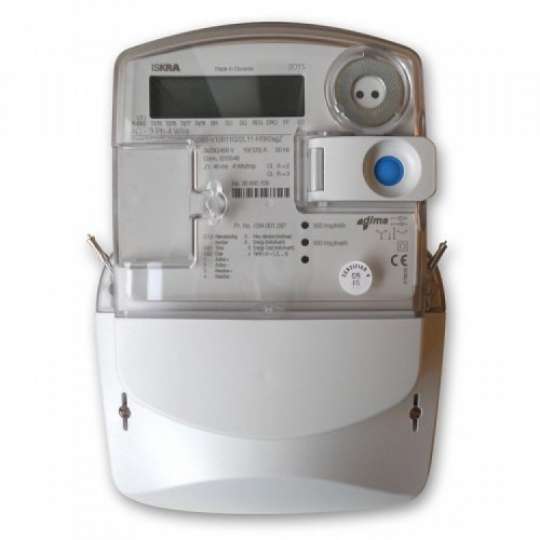

MT375 is targeted at deregulated energy markets and enables provision of an AMR service. It is a polyphase meter intended for use in Commercial/Industrial and CoP5 applications. The meter incorpates a fully integrated GSM modem. The integrated GSM modem can be exchanged with integrated RS485 communication interface for multisite installations.
It is a perfect combination of well-metering technology and state-of-the-art GSM communication modem, all integrate and sealed in a single enclosure. The integrated solution attains the same high quality and reliability of Iskraemeco meters.
The meter is approved according to IEC 62052-11 and IEC 62053-21, ISO 9001, and designed according to even higher internal Iskraemeco standards, based on 60 years of experience of meter manufacturing and more than 55 million meters installed worldwide.
Please select the required CT ratio above and we will program the meter accordingly.
Accuracy class (IEC 6205321) | 2 or 1 |
Nominal current In (CT connected) | 5 (6) A |
Nominal voltage Un | 3x230/400V |
Voltage range | 0,8 Un ... 1,15 Un |
Nominal fraquency fn | 50 Hz, 60Hz |
Temperature range | -25 °C ... +60 °C |
Extended temperature range | -40 °C ... +70 °C |
Storage temperature | -45 °C ... +85 °C |
Self-consump. current circuit | <0.5 VA |
Self-consump. voltage circuit | <2 W / 10 VA |
Isolation voltage | 4 kV, 50 Hz, 1 min |
Voltage shock | 12 kV, 1.2/50 μs |
Short circuit current | 50 Imax |
EMC burst test | (IEC 801-4) 6 kV |
Optical port | IEC 62056-21 |
Dimensions (W x H x D) | 178 x 250 x 86 |
Weight | 1.3kg |
