Magnelab Split-Core AC Current Sensor SCT-3000 (0.333V Output)
MAG SCT3000
DSC04269
Mag 3000 pic
Mag 3000 pic2
Magnelab Split-Core AC Current Sensor SCT-3000 (0.333V Output)
£82.00
£98.40 inc. VAT
Product Description

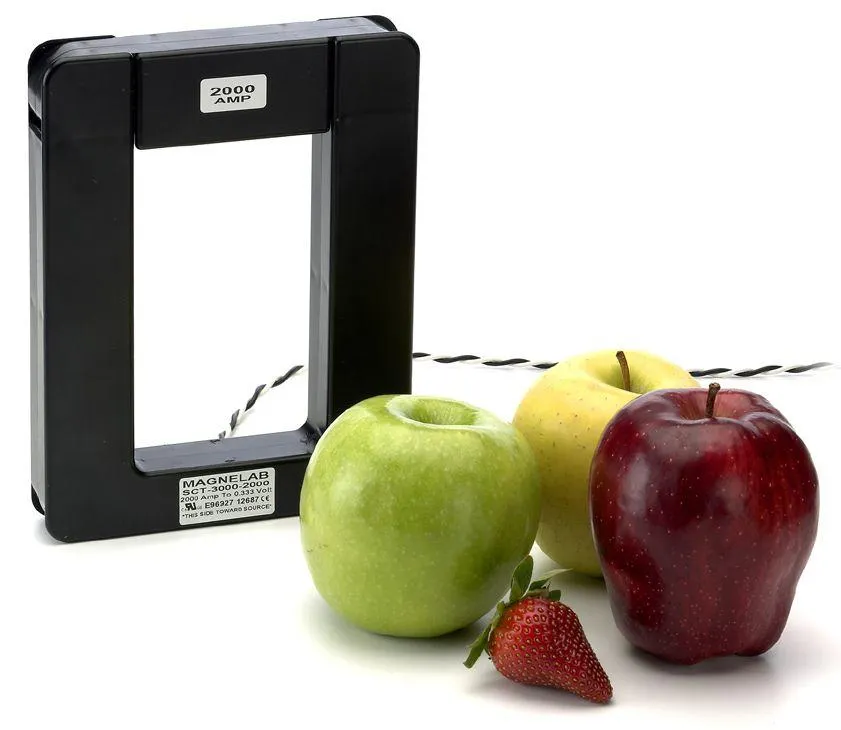

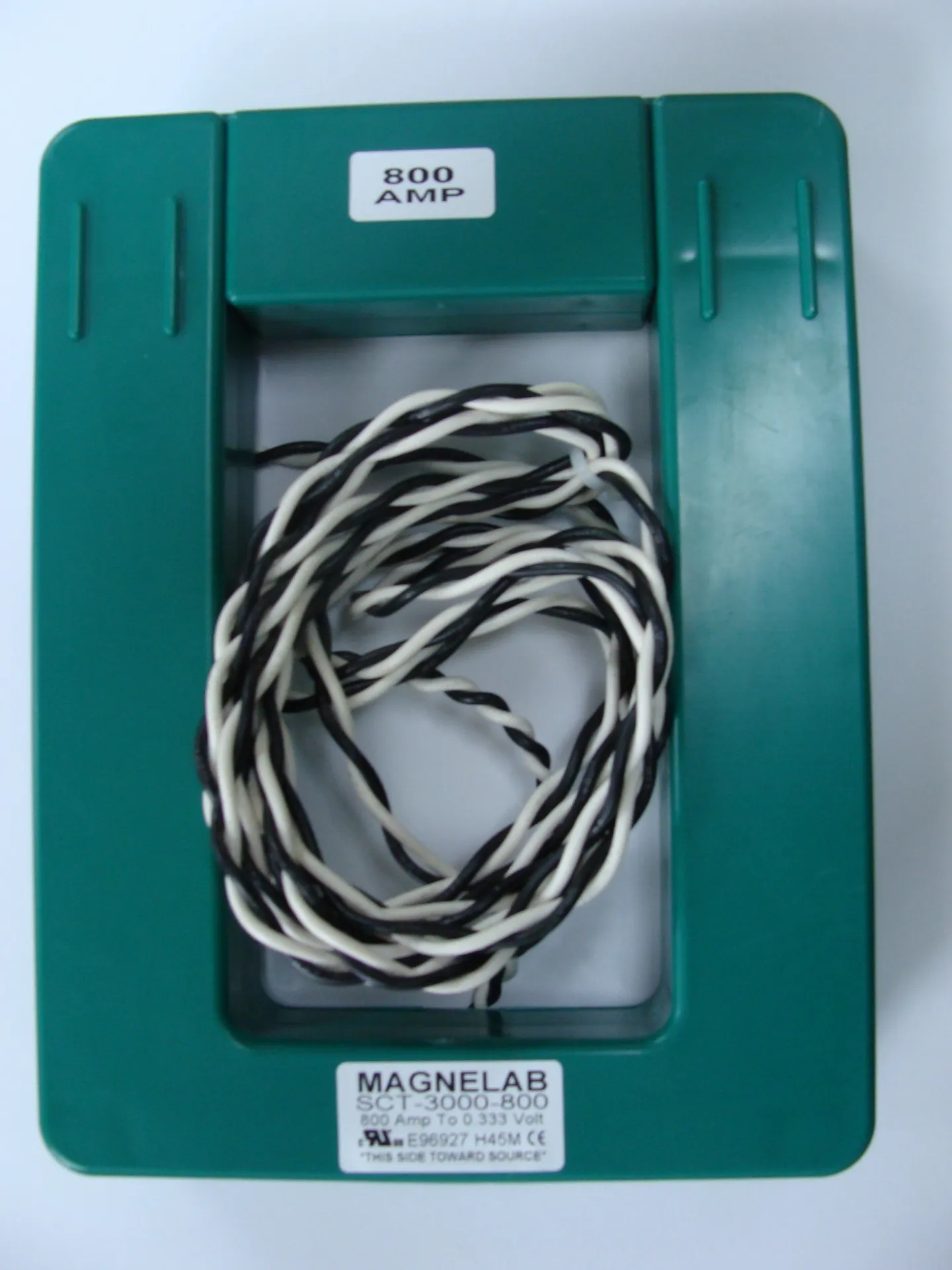

Magnelab’s SCT-3000 Series offers split-core current sensors that can transform up to 3000 Amps of AC input current into a 0.333-volt output. It has a self-locking mechanism and can snap around a preinstalled conductor, making it a popular choice for installation on existing electrical wiring. Other commonly used purposes include recording, data logging, energy management, power monitoring and cost allocation.
Specification
| Rated Current | 0.333V |
|---|---|
| Frequency | Operates from 50 Hz to 400 Hz |
| Accuracy | 10% to 130% of rated current |
| Linearity Accuracy | ± 1% |
| Phase Angle | < 2 degrees measured at 50% rated current |
| Standards | UL recognized, CE, and RoHS |
| Lead | 8 ft. twisted-pair lead |
Downloads
Ask an expert about the
Magnelab Split-Core AC Current Sensor SCT-3000 (0.333V Output)
