MB3180 – 1 Port Standard Moxa Modbus Ethernet/Serial Gateway

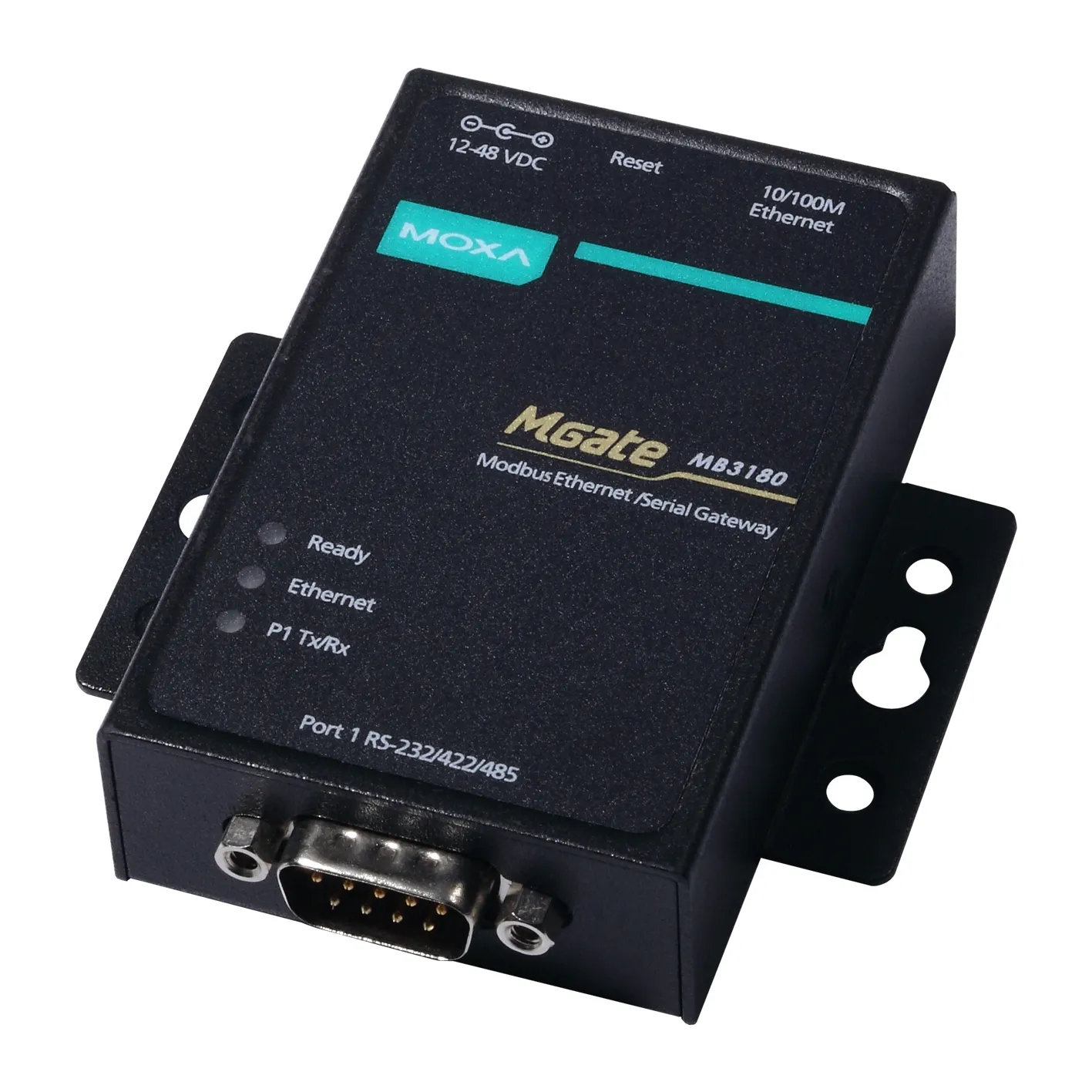

M Gate MB3180 STOCK
MB3180 – 1 Port Standard Moxa Modbus Ethernet/Serial Gateway
£240.00
£288.00 inc. VAT
Product Description
The MB3180, MB3280, and MB3480 are standard Modbus gateways that convert between Modbus TCP and Modbus RTU/ASCII protocols. Up to 16 simultaneous Modbus TCP masters are supported, with up to 31 RTU/ASCII slaves per serial port. For RTU/ASCII masters, up to 32 TCP slaves are supported.
The three standard MGate™ models (MB3180, MB3280, and MB3480) are designed for easy integration of Modbus TCP and RTU/ASCII networks. With these models, Modbus serial slave devices can be seamlessly incorporated into an existing Modbus TCP network, and Modbus TCP slaves can be made accessible to serial masters.
The MB3180, MB3280, and MB3480 offer features that make network integration easy, customizable, and compatible with almost any Modbus network.
Specification
Number of Ports | 1 |
Speed | 10/100 Mbps, Auto MDI/MDIX |
Connector | 8-pin RJ45 |
Magnetic Isolation Protection | 1.5 KV built-in |
Number of Ports | MB3180: 1 MB3280: 2 MB3480: 4 |
Serial Standards | RS-232/422/485, software selectable |
Connectors | DB9 male |
ESD Protection | 15 KV for all signals |
RS-485 Data Direction Control | ADDC® (automatic data direction control) |
Data Bits | 7, 8 |
Stop Bits | 1, 2 |
Parity | None, Even, Odd, Space, Mark |
Flow Control | RTS/CTS, DTR/DSR (RS-232 only) |
Baudrate | 50 bps to 921.6 Kbps |
Serial Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx-, GND RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND RS-485-2w: Data+, Data-, GND |
Operation Modes | Operation Modes: RTU Slave, RTU Master, ASCII Slave, ASCII Master Utilities: MGate Manager for Windows 98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64 |
Multi-master and Multi-drop | Master mode: 32 TCP slaves Slave mode: 16 TCP masters (request queue 32-deep for each master) Bonus Feature: Smart Routing |
Housing | Metal, IP30 protection |
Weight | 340g |
Downloads
Ask an expert about the
MB3180 – 1 Port Standard Moxa Modbus Ethernet/Serial Gateway
