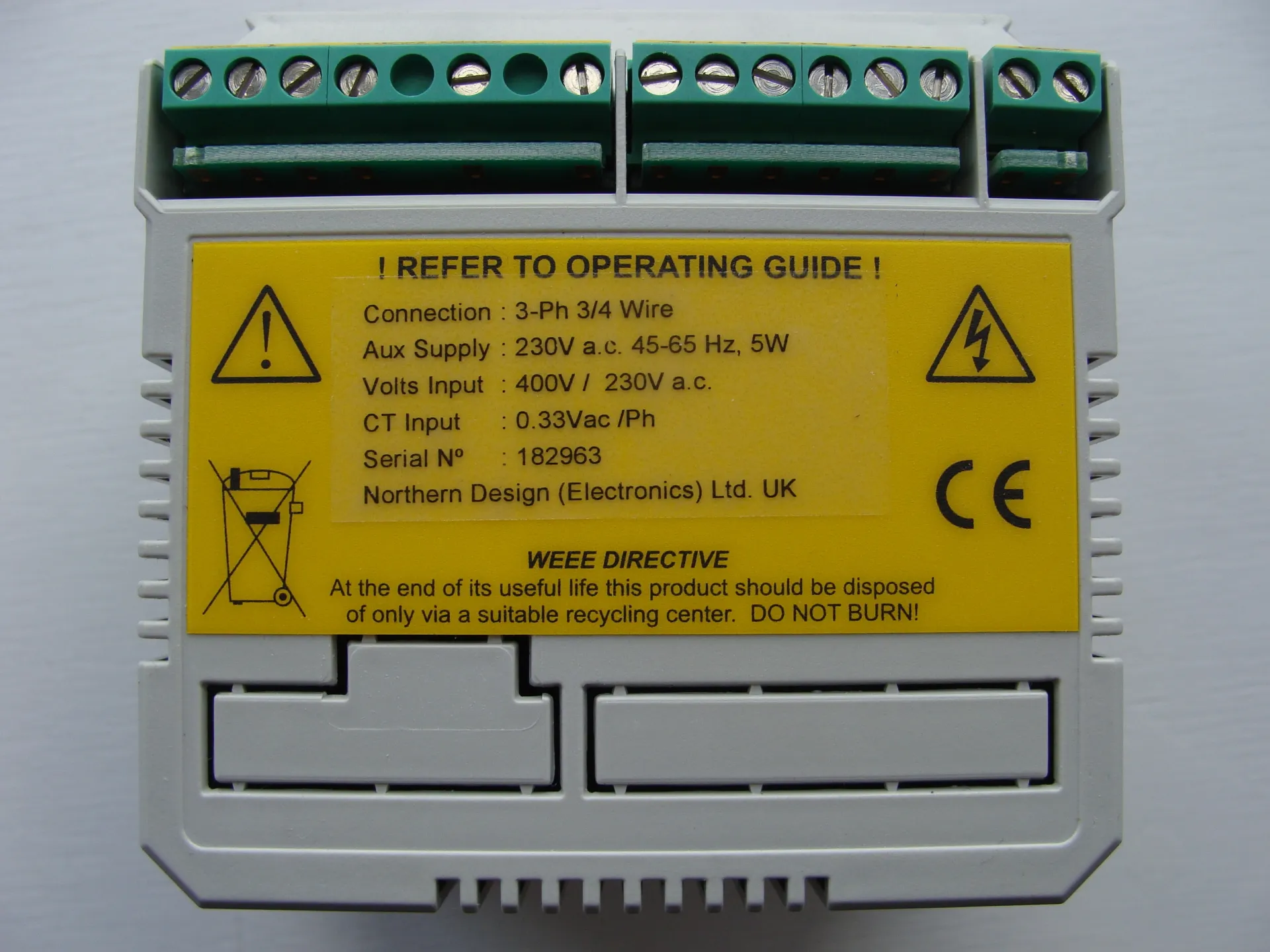

Northern Design Cube 350 Multi-Function Meter (C350MOD/5A/230)
£160.67
£192.80 inc. VAT
£295.94
£355.13 inc. VAT
ND Cube 350 is a cost effective kWh and kW panel mount meter, which has pulsed outputs and accuracy better than class 1. It also features 'Right First Time' installation aids (kW display, CT, VT and Pulse value displays) that clearly show if the meter had been wired and programmed correctly. These features make this meter suitable for control panels and switchboards.
The IP communications feature allows for Pulse or Alarm outputs, allowing for a more accurate and secure way to manage energy usage. The variety of TCP/IP protocols make this meter very accessible through direct communication with energy management software and building control solutions, without the need for data loggers or concentrators. The web pages on the IP labelled Cube 350-IP allows the user to view important instantaneous values and access the setup pages to change parameters.
System | 3 Phase 3 or 4 Wire Unbalanced Load
3 Phase Balanced & Single Phase to order |
Voltage | 400/230V. 3 Phase 3 or 4 Wire
110/63V & 208/120V optional - Others to order |
Current | 5A from external CTs 1A optional - fully isolated |
Standard | 230V 50/60 Hz ±15% |
Options | 110V 50/60 Hz ±15% |
Load | 2VA max |
Overload | x1.2 continuous |
kWh | Better than Class 1 per EN 62053-21 & BS 8431 |
Kvarh | Better than Class 2 per EN 62053-23 & BS 8431 |
kW & kVA | Better than Class 0.25 IEC 60688 |
kvar | Better than Class 0.5 IEC 60688 |
Amps & Volts | Class 0.1 IEC 60688 (0.01In – 1.2In or 0.1Un – 1.2Un) |
PF | ±0.2° (0.05In – 1.2In and 0.2Un – 1.2Un) |
Neutral Current | Class 0.5 IEC 60688 (0.05In – 1.2In) |
Function | 1 Pulse per unit of energy |
Scaling | Settable between 1 & 1000 counts of kWh register |
Pulse Period | 0.1 sec. default; Settable between 0.1 and 20 sec |
Rise & Fall Time | < 2.0ms |
Type | N/O Volt free contact. Optically isolated BiFET |
Contacts | 100mA ac/dc max., 100V ac/dc max |
Isolation | 2.5kV 50Hz 1 minute |
Bus Type | RS485 2 wire + 0v. ½ Duplex, ¼ unit load |
Protocol | MODBUS® RTU with 16 bit CRC |
Baud Rate | 4800, 9600 or 19,2000 User settable |
Address | 1 – 247 User settable |
Latency | Reply within 250ms max. |
Command Rate | New command within 5ms of previous one |
Operating Temperature | -10°C to +65° |
Storage Temperature | -25°C to +70°C |
Humidity | < 75% non-condensing |
Environment | IP54 standard, IP65 optional |
Conforms to | EN 61010-1 Installation Category II |
Terminals | Rising Cage - 4mm² (12 AWG) cable max |
Enclosure | DIN 43700 96 x 96 |
Material | Mablex® with fire protection to UL94-V-O self extinguishing |
Dimensions | 96 x 96 mm x 83.5 mm (72 mm behind panel) |
Weight | ~ 250 gms |
