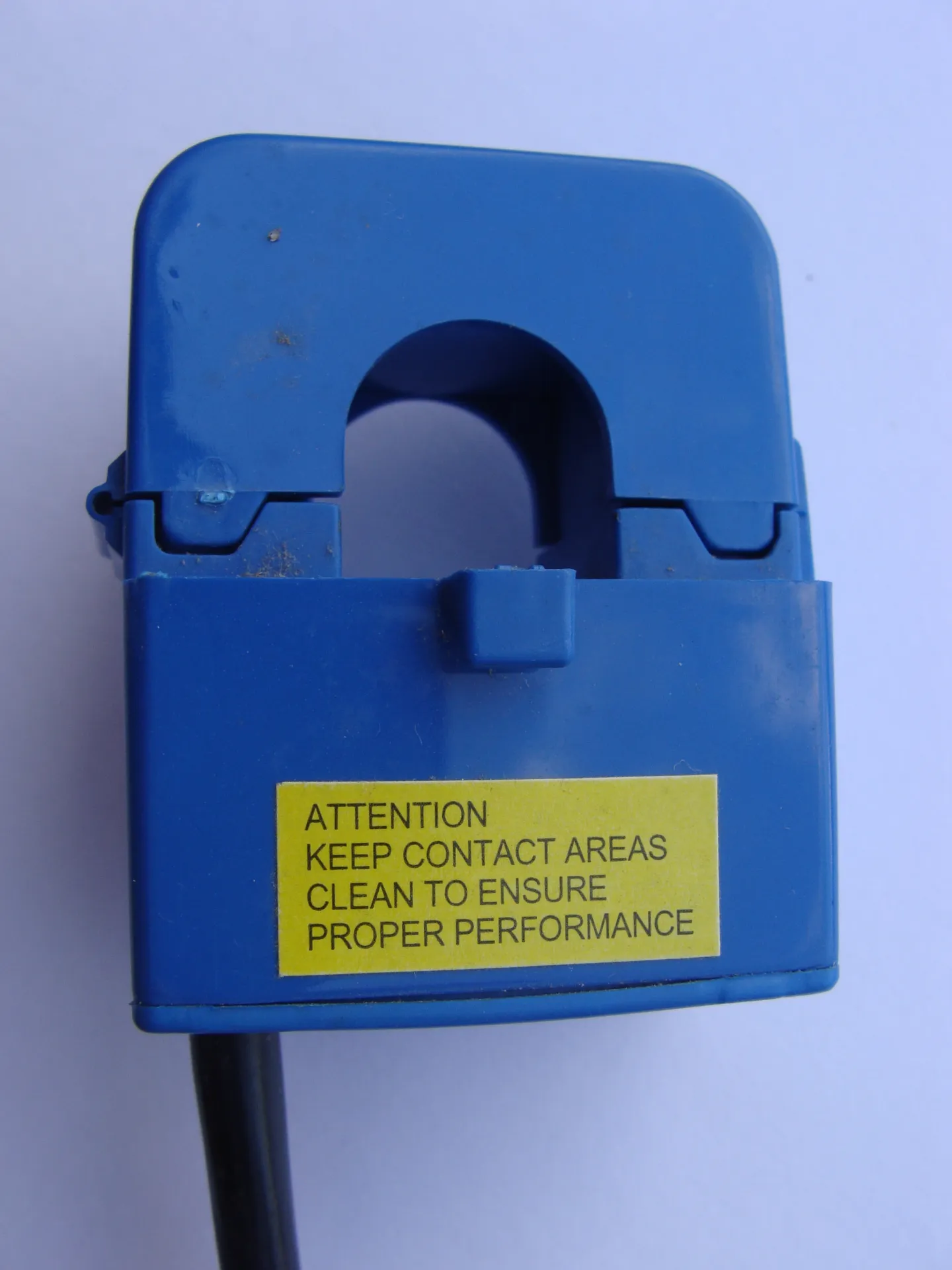

DSC04222

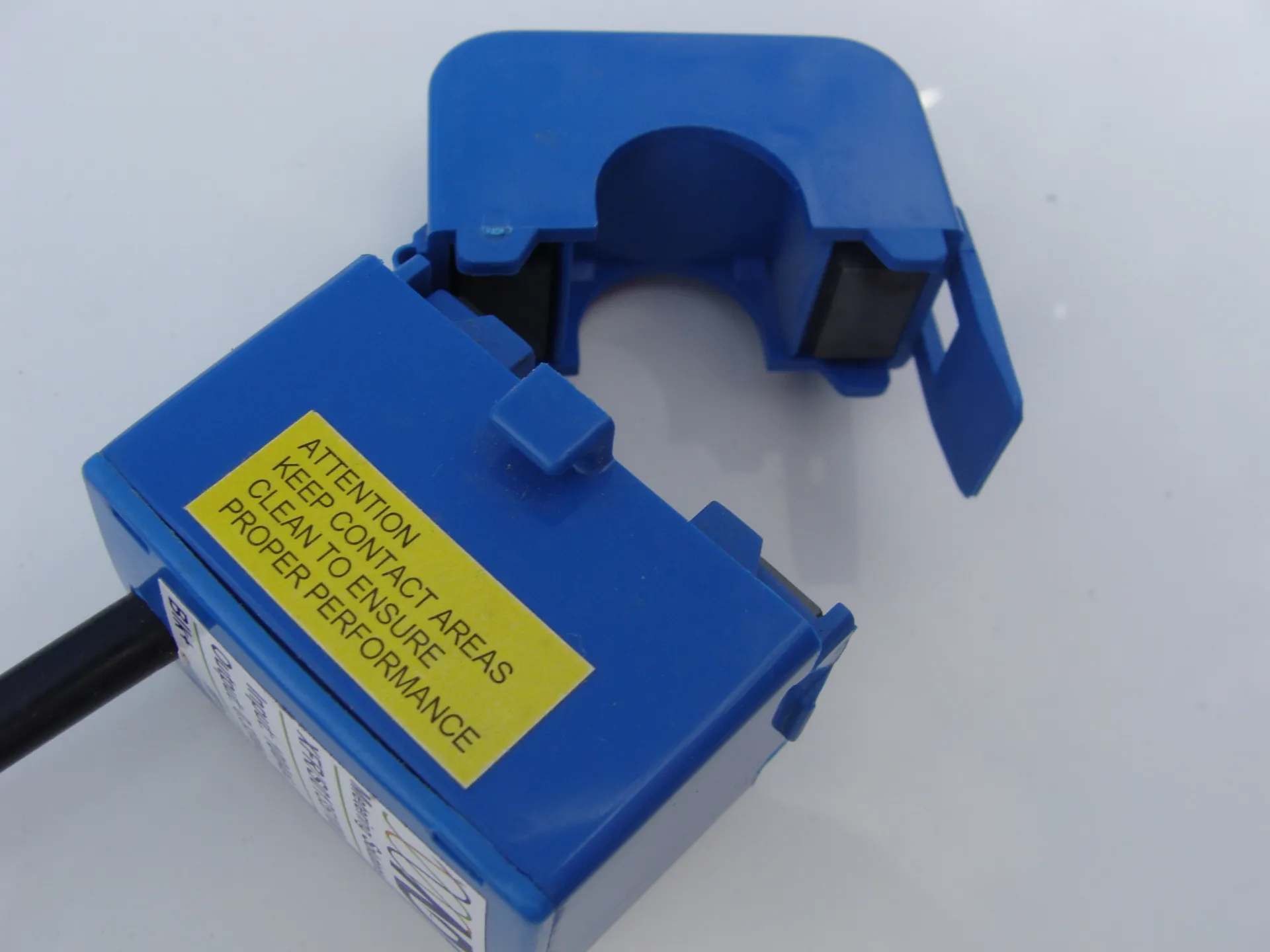

DSC04239

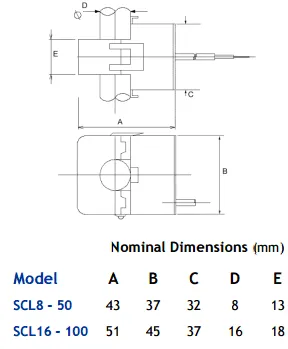

SCL PIC
Northern Design SCL16 Split-core CT with 0.333V Output (100A)
£40.30
£48.36 inc. VAT
Product Description
Northern Design's SCL series of retro-fit (split-core) current sensors are quick and easy to install devices with an easy retro-fit connection. These high precision (1% nominal accuracy) units are equally suitable for both Current and Power measurements.
Specification
Output at ln | 0.333mV |
Frequency Range | 50-60Hz |
Accuracy (0.2ln-1.2ln) | +/- 1% |
Phase Error | < 2º @ 0.51n |
Temperature Coefficient | 60ppm/0ºc |
Enclosure | Plastic to UL94V-0 |
Insulation Voltage | 300 Vrms Cat III |
Indoor use only | Altitude < 2000m |
Operating Temperature | -15º to +60ºC |
Humidity | Max 80% RH @ 30ºC non-condensing |
Output Connection | 1m Captive Cable |
Downloads
Ask an expert about the
Northern Design SCL16 Split-core CT with 0.333V Output (100A)
