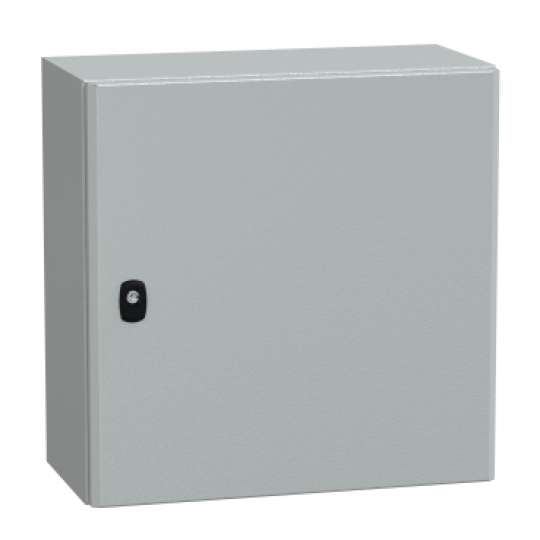

Schneider NSYS3D5525P Spacial S3D Steel IP66 Enclosure 500 mm x 500 mm x 250mm

Name: Schneider NSYS3D5525P Spacial S3D Steel IP66 Enclosure 500 mm x 500 mm x 250mm
Brand: Schneider Electric
Price: 176.868 GBP
Availability: BackOrder

Schneider Electric

Schneider NSYS3D5525P Spacial S3D Steel IP66 Enclosure 500 mm x 500 mm x 250mm

Schneider Electric

£147.39

£176.87 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

Features:

One-piece folded and welded body, double plate thickness gutter shaped front profile. Flat rear panel.
Degree of protection: IP 66 for all single door enclosures, IP 55 for double door enclosures.
A light and resistant enclosure with folded cross structure sheet steel.
External mechanical impact resistance: IK 10 for enclosures with plain door, IK 08 for enclosures with glazed door.
Time saving : 54 dimensions with or without plain chassis, customized offer, wide range of accessories...
Wide range of sizes : from 300X200X150 to 1400X1000X300.
Choice : plain door or glazed door.
Paint finish : colour grey RAL 7035.
Certifications : EN 62208 (LCIE), UL, CUL, BV, DNV, LR, GL, ATEX (modified enclosure).

Specification

Measurements (W x H x D)	500 x 500 x 250mm
Installation accessory type	Wall-mounting
Material	Enclosure: steel Mounting plate: galvanised steel
Standards	IEC 62208
Product weight	15 kg
Door opening side	Reversible (120 °)
Product certifications	UL CUL LR BV GL DNV
IP degree of protection	IP66 conforming to IEC 60529
IK degree of protection	IK10 conforming to IEC 62262
