Outram PowerMaster 3000 (PM3000) with Harmonic Distortion Measurement & Kit - Purchase

Name: Outram PowerMaster 3000 (PM3000) with Harmonic Distortion Measurement & Kit - Purchase
Brand: Outram
Price: 4002 GBP
Availability: BackOrder

Outram

Manufacturer Part No: PM3000

Outram PowerMaster 3000 (PM3000) with Harmonic Distortion Measurement & Kit - Purchase

Outram

Manufacturer Part No: PM3000

£3,335.00

£4,002.00 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

Outram PM3000 power 3 phase quality analyser & harmonic logger is available to buy or hire. Our team have excellent training in power quality instruments and can provide support or assistance in recordings, surveys and reports.

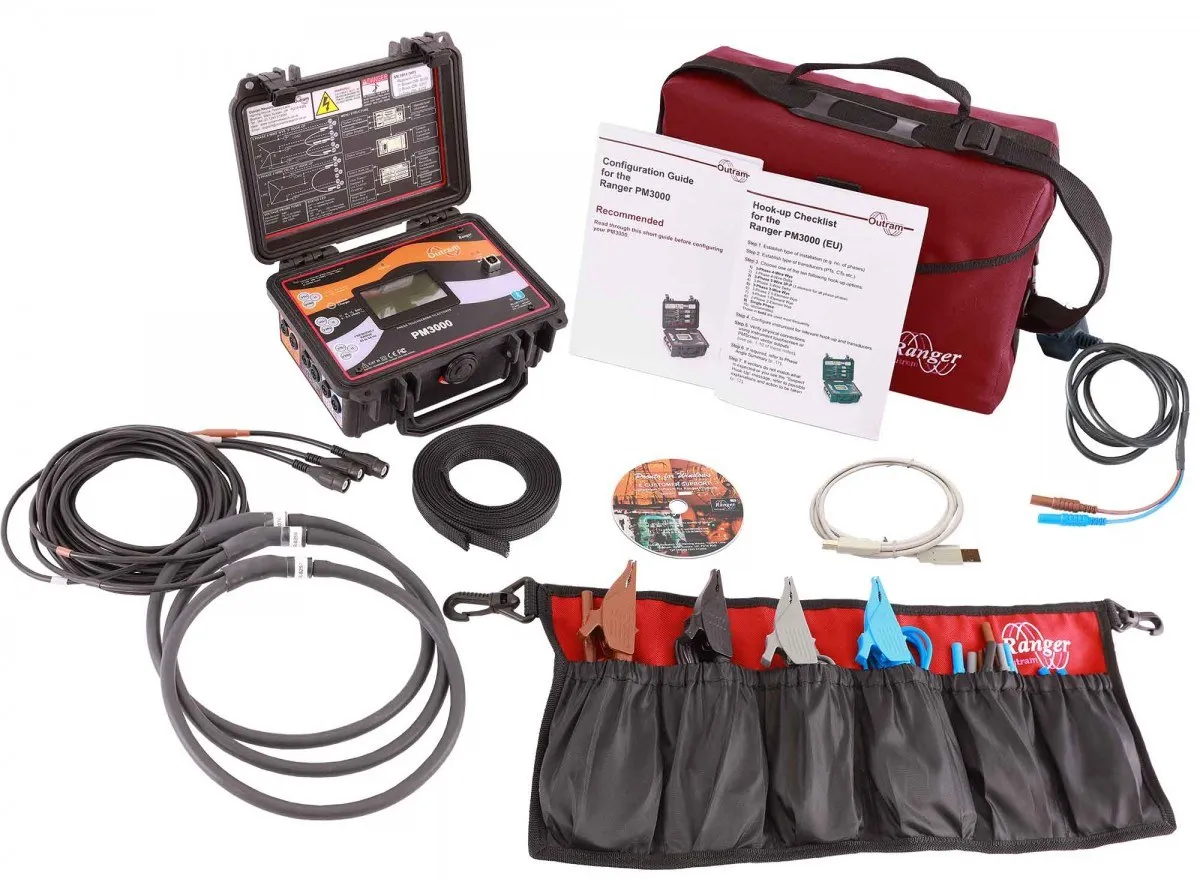

Kit Includes: 3 x 24” 3000 Amp Flexible Current Clamps (or 3 bootlace Flexible Current Clamps), 4 Voltage probes, 2 neutral link leads, mains lead, 9-Pin RS232 Serial Download Cable, Pronto for Windows Analysis Software.

Product Features:

Patented Single Cycle
Adaptive Storage recording process provides extremely high resolution over long recording periods (unique precise capturing of sudden changes eg. transients, current spikes, harmonics, drop-outs and brown-outs).
Point-store measuring is available as an optional setting (Measuring via the internal clock)
Measures current between 0 and 3,000 Amps and voltage between 0 and 480 Volts on single phase, two phase and three phase power supplies.
1MB memory Standard (8MB, 16MB, 32MB and 64MB options available).
Records and displays up to 16 channels of voltage, current, power, power factor, VAR's, phase angle, frequency, THD, and much more.
Comprehensive range of maths functions give excellent data analysis.
Graphical touch-screen interface provides straightforward, user-friendly operation.
Comes with Pronto for Windows software, one of the most highly regarded data recovery and analysis packages available.

Specification

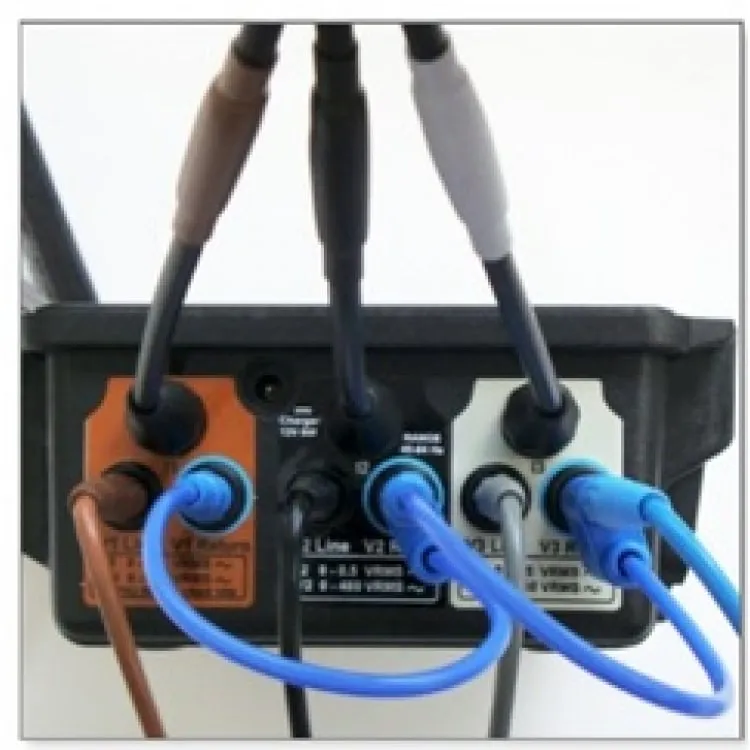

Input Voltage	3 channels 0-480 Vac. Sensors: In-line shrouded 4mm banana plugs and fused crocodile clip.
Input Current	3 channels. Sensors: Three 24" 3000 Amp Flexible Current Clamps supplied (Ranges 0-3000A, 0 - 400.0A, 0 - 50.00A) or can use with conventional 0 - 0.5 V ac voltage output current clamps. DC measurement with suitable sensors optional.
Channels	16.
Accuracy	Volts and wide range current < 0.25% True RMS +/-2 LSB’s excluding sensors. Narrow range current < 1% True RMS excluding sensors. Zeroing function for DC.
Resolution	Programmable to 0.1 Vac and 0.1 Aac 0.01V, 0.01A high resolution mode.
Maths Channels	AC 1 Phase: RMS, Stray Voltage RMS Hi Res < 35V, Real power, VARS (fund), Apparent Power, Power Factor, Phase angle, Frequency, Instantaneous Flicker Sensation, Short Term & Long Term Perceptibility, Flicker Flag. AC 2 Phase: Real Power, VARS (fund), Apparent Power, Power Factor. AC 3 Phase: Real Power, Reactive Power VARS (fund), Apparent Power, Power Factor, Voltage Unbalance, (Conventional & Sequential Components) Current Unbalance Harmonics: Odds, Evens, Triplens, Individual Harmonics and Harmonic Direction to the 15th, K Factor, % Total Harmonic Distortion to the 25th, Harmonic Value. Other Maths Option: Channel X * Constant, Channel X / Channel Y, Filtered Channel X, Internal Temperature, On Charge, Battery Volts, DC optional.
Sampling	Continuous sampling at 64 times per cycle.
Recording	Single cycle True RMS response time; 16 bit simultaneously sampling all signals.
Memory	5 options available: 1MB, 8MB, 16MB, 32MB & 64MB RAM
Recording Mode and Rate	Adaptive Store: Unique storage management enables extended recording & single cycle resolution on significant signal changes. Point Store: Selectable from single cycle rate to once every 12 hours.
Data Retention	Back-up battery provides 2 month’s retention @ 25ºC (77ºF).
Power	Requires 50-480 Vac from Phase A voltage measurement or separate power supply.
Battery	4 AA NiMH battery pack & 1 Lithium battery.
Safety & Standards	IEC 61010, 600V Cat. III, Pollution level 2, CE, IEC 61326(EMC), IEC 61000-4-15.
Internal Fusing	PSU, Battery stack, fused voltage leads
Communications	Serial Ports: RS232, (up to 230.4K baud); isolation>2.5kV. Bluetooth (wireless) (optional) Protocol: MODBUS ASCII touch-screen display 100 x 35 mm Computer Requirements for Pronto Software: Windows 2000, XP, Vista, 7; 250MB hard drive space
Display	Backlit LCD graphic touchscreen display 2.5" x 1.35"
Case	Pelican 1120 Guard Box: Dimensions 8" x 6.5"x 3.5"
Weight	2.5lbs (1.1kg) without leads and clamps
Operating Temperature	14ºF (-10ºC) to 140ºF (60ºC)
