Schneider A9MEM1520 Energy Sensor Monoconnect 63A 1P+Wire Top and Bottom Position
A9 MEM1520

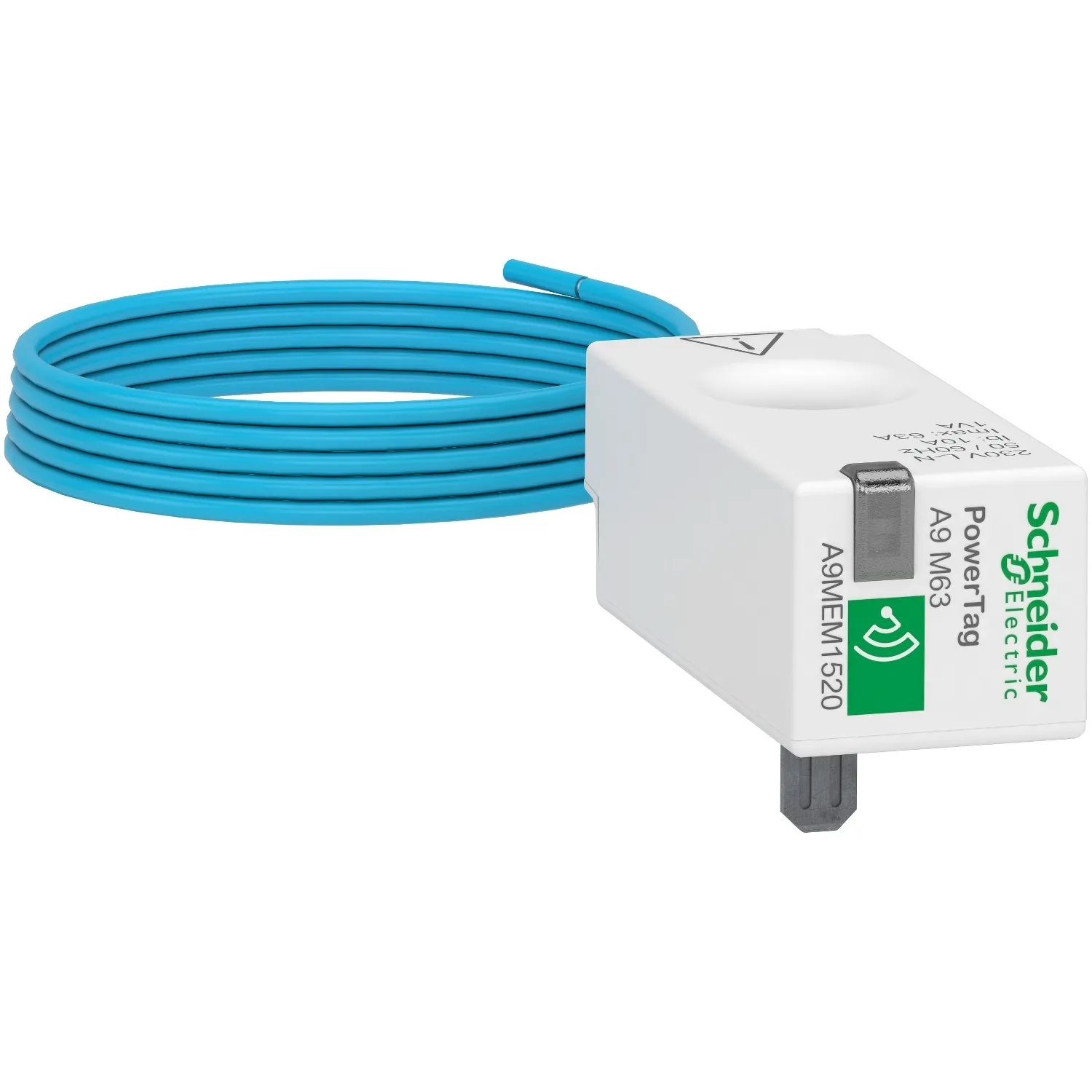

Schneider A9MEM1520 Energy Sensor Monoconnect 63A 1P+Wire Top and Bottom Position
£113.93
£136.72 inc. VAT
Specification
Main
Poles | 1P |
Maximum current [Imax] | 63 A |
[Ib] Basic current | 10 A |
Starting current | 40 mA |
Saturation current | 130 A |
Type of measurement | Voltage, power factor, active power, active energy, current |
Accuracy class | Class 1 current conforming to IEC 61557-12 Class 0.5 voltage conforming to IEC 61557-12 Class 1 active power conforming to IEC 61557-12 Class 1 active energy conforming to IEC 61557-12 Class 1 power factor conforming to IEC 61557-12 |
Complementary
Mounting mode | By screws (terminals) |
Electrical connection | Connector tooth and wire |
Cable cross section | 1 rigid cable 1.5…16 mm² 2 stranded cable 1.5…2.5 mm² 2 rigid cable 1.5…2.5 mm² 1 stranded cable 1.5…16 mm² |
Cable length | 1m |
Supply voltage | 220...240 V AC, +/- 20 % |
Network frequency | 50 Hz 60 Hz |
Maximum power consumption | 1 VA |
Standards | IEC 61557-12 IEC 61010-1 IEC 61010-2-030 IEC 61326-1 ETSI EN 300 328 |
Dimensions (W x H x D) | 18 x 16.5 x 43 mm |
Weight | 16.4g |
Environmental
Ambient air temperature for operation | -25…60 °C |
Ambient air temperature for storage | -40…85 °C |
Overvoltage category | II conforming to IEC 61010-1 |
Measurement category | Category III conforming to IEC 61010-2-030 |
IP degree of protection | IP20 conforming to IEC 60529 |
IK degree of protection | IK05 |
Pollution degree | 3 |
Relative humidity | 0…95 % at 45 °C conforming to IEC 60721-3-3 |
