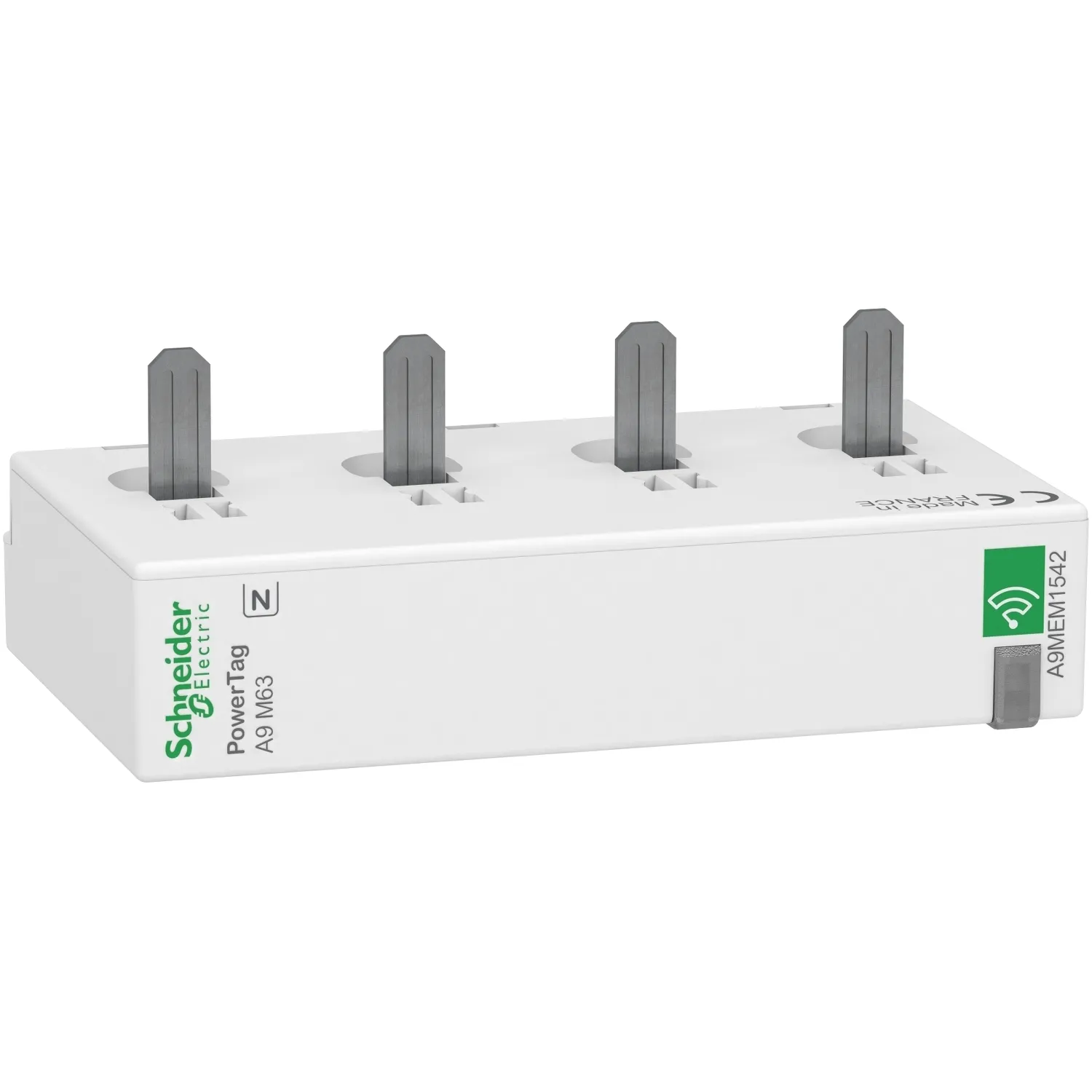

Schneider A9MEM1542 Energy Sensor Monoconnect 63A 3P+N Bottom Position
A9 MEM1542
Schneider A9MEM1542 Energy Sensor Monoconnect 63A 3P+N Bottom Position
£269.47
£323.36 inc. VAT
Specification
Main
Poles | 3P + N |
Maximum Current [Imax] | 63 A |
[Ib] Basic Current | 10 A |
Starting Current | 40 mA |
Saturation Current | 130 A |
Type of Measurement | Voltage, power factor, active power, active energy, current |
Accuracy Class | Class 1 current conforming to IEC 61557-12 Class 0.5 voltage conforming to IEC 61557-12 Class 1 active power conforming to IEC 61557-12 Class 1 active energy conforming to IEC 61557-12 Class 1 power factor conforming to IEC 61557-12 |
Complementary
Mounting Mode | By screws (terminals) |
Electrical Connection | Connector tooth |
Cable Cross Section | 1 rigid cable 1.5…16 mm² 2 stranded cable 1.5…2.5 mm² 2 rigid cable 1.5…2.5 mm² 1 stranded cable 1.5…16 mm² |
Supply Voltage | 220...240 V AC, +/- 20 %, between phase and neutral 380...415 V AC, +/- 20 %, between phases |
Network Frequency | 50 Hz 60 Hz |
Maximum Power Consumption | 2 VA |
Standards | IEC 61557-12 IEC 61010-1 IEC 61010-2-030 IEC 61326-1 ETSI EN 300 328 |
Dimensions (W x H x D) | 72 x 16.5 x 43 mm |
Weight | 35 g |
Environmental
Ambient Air Temperature for Operation | -25…60 °C |
Ambient Air Temperature for Storage | -40…85 °C |
Overvoltage Category | II conforming to IEC 61010-1 |
Measurement Category | Category III conforming to IEC 61010-2-030 |
IP Degree of Protection | IP20 conforming to IEC 60529 |
IK Degree of Protection | IK05 |
Pollution Degree | 3 |
Relative Humidity | 0…95 % at 45 °C conforming to IEC 60721-3-3 |
