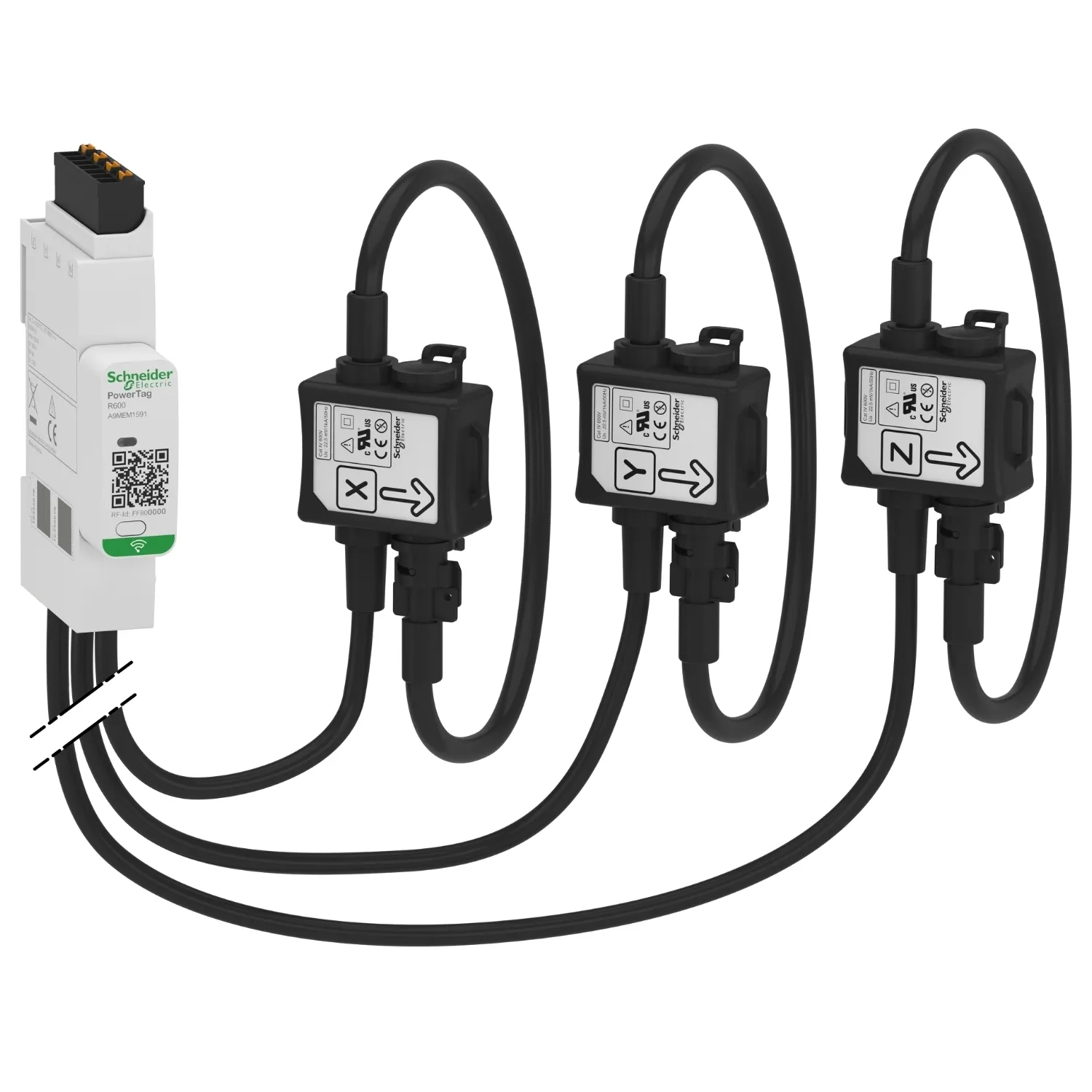

Schneider A9MEM1591 Energy Sensor Rope 600A 3P/3P+N Top and Bottom Position

Name: Schneider A9MEM1591 Energy Sensor Rope 600A 3P/3P+N Top and Bottom Position
Brand: Schneider Electric
Price: 803.64 GBP
Availability: BackOrder

Schneider Electric

Schneider A9MEM1591 Energy Sensor Rope 600A 3P/3P+N Top and Bottom Position

Schneider Electric

£669.70

£803.64 inc. VAT

Specification
Downloads
Ask a Question
Help & Advice

Specification

Main

Poles	3P 3P + N
Maximum current [Imax]	600 A
[Ib] Basic current	100 A
Starting current	400 mA
Saturation current	1200 A
Type of measurement	Voltage, power factor, active and reactive power, active and reactive energy, current, apparent power, apparent energy, frequency, internal temperature
Accuracy class	Class 1 active energy conforming to IEC 61557-12 Class 2 reactive energy conforming to IEC 61557-12 Class 2 apparent energy conforming to IEC 61557-12 Class 1 active power conforming to IEC 61557-12 Class 2 reactive power conforming to IEC 61557-12 Class 2 apparent power conforming to IEC 61557-12 Class 1 current conforming to IEC 61557-12 Class 0.5 voltage conforming to IEC 61557-12 Class 1 power factor conforming to IEC 61557-12 Class 1 frequency conforming to IEC 61557-12

Complementary

Mounting mode	Clip-on (DIN rail)
Electrical connection	Removable spring terminal block
Cable cross section	1 rigid cable 0.2…1.5 mm² without cable end 1 stranded cable 0.2…2.5 mm² without cable end 1 stranded cable 0.25…1.5 mm² with cable end
Cable length	1 m for sensor
Supply voltage	100...277 V AC, +/- 20 %, phase to neutral 173...480 V AC, +/- 20 %, phase to phase
Network frequency	50 Hz 60 Hz
Maximum power consumption	3 VA
Standards	IEC 61557-12 IEC 61010
Dimensions (W x H x D)	18 x 105 x 67.5 mm

Environmental

Ambient air temperature for operation	-25…70 °C
Ambient air temperature for storage	-40…85 °C
Overvoltage category	II conforming to IEC 61010-1
Measurement category	Category III conforming to IEC 61010-2-030
IP degree of protection	IP20 conforming to IEC 60529
IK degree of protection	IK05
Pollution degree	3
Relative humidity	0…95 % at 55 °C conforming to IEC 60721-3-3
