Find out moreSchneider A9XMSB11 Smartlink - Modbus RS485 Slave - Smart Communication I/O Module
A9 XMSB11

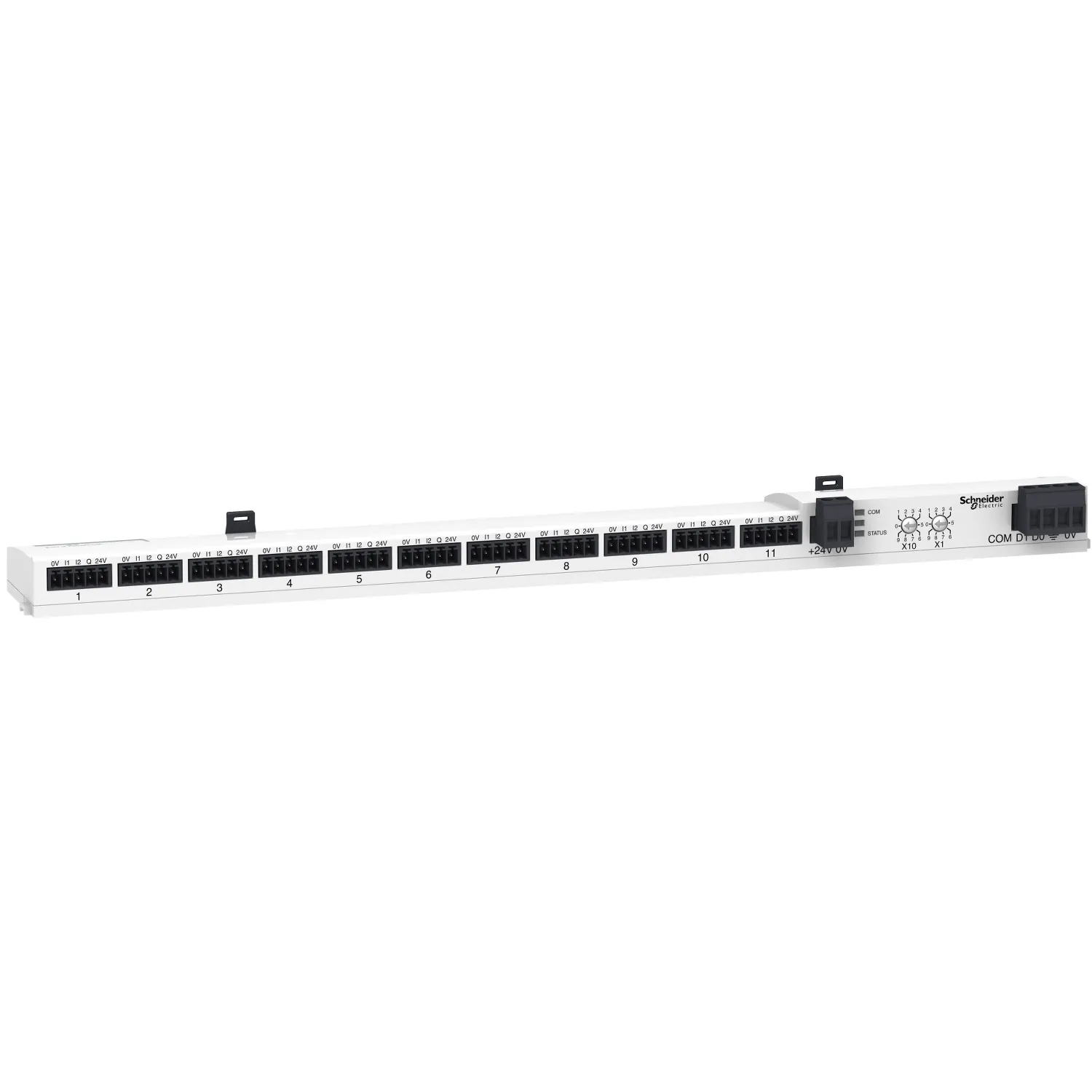

Schneider A9XMSB11 Smartlink - Modbus RS485 Slave - Smart Communication I/O Module
£390.63
£468.76 inc. VAT
Specification
Main
Maximum supply current | 1.5 A |
[Us] rated supply voltage | 24 V DC +/- 20 % |
Number max of connected devices | Up to 11 wired devices |
Group of channels | 1 group of 11 digital channels |
Connectivity to devices | Digital input and output |
Communication service | Modbus slave for RS485 |
Web server | BMS controller compatible |
Web services | Web page |
Complementary
Application specification I/O | Pulse totalising counter Pulse converter |
Protection type | Short-circuit protection for analog input Against reverse polarity for auxiliary supply Against reverse polarity for input Overvoltage at 33 V DC for digital output |
Input/Output type | 2 inputs + 1 output per digital channel |
Maximum permanent current | 5 mA for digital input |
Output type | Logic current source: 24 V - DC - 100 mA |
Mounting position | Horizontal and vertical on DIN rail |
Wire stripping length | Control: 10 mm Supply circuit: 7 mm Communication bus: 7 mm |
Communication network type | RS485 Modbus RTU slave SUB-D 9 9.6...19.2 kbauds |
Dimensions (W x H x D) | 359 x 22.5 x 42 mm |
Weight | 195 g |
Environmental
Ambient air temperature for operation | -25…60 °C |
Ambient air temperature for storage | -40…80 °C |
IP Degree of protection | IP20 |
Pollution degree | 3 |
Relative humidity | 93 % at 40 °C |
