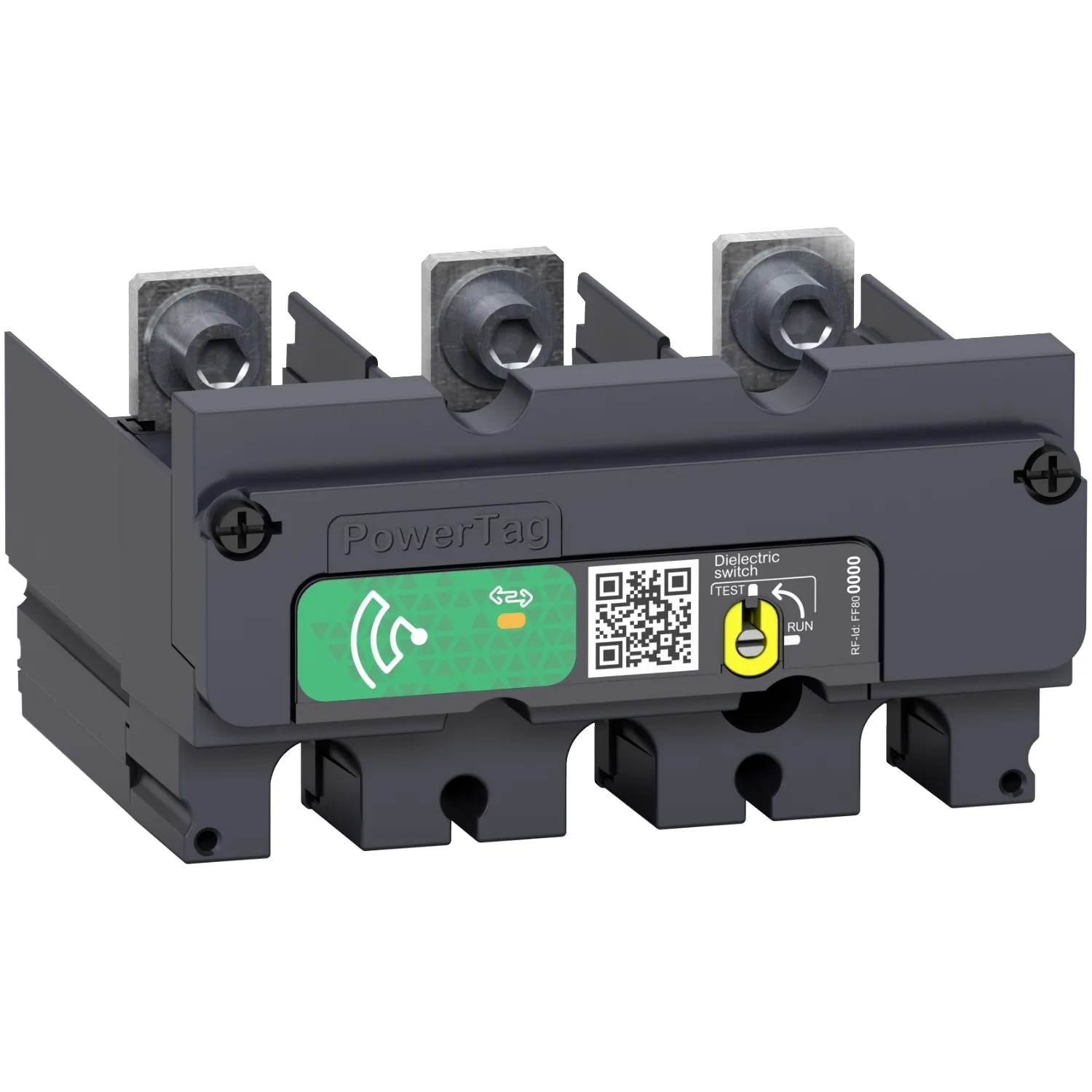

Schneider LV434020 Energy Sensor PowerTag NSX - 250A - 3P

Name: Schneider LV434020 Energy Sensor PowerTag NSX - 250A - 3P
Brand: Schneider Electric
Price: 705.972 GBP
Availability: BackOrder

Schneider Electric

Schneider Electric

£588.31

£705.97 inc. VAT

Specification

Poles	3P
Maximum current [Imax]	250 A
[Ib] Basic current	40 A
Starting current	160 mA
Saturation current	500 A
Type of measurement	Voltage, power factor, active & reactive power, active & reactive energy, current, apparent power
Accuracy class	Class 1 active energy conforming to IEC 61557-12 Class 2 reactive energy conforming to IEC 61557-12 Class 1 active power conforming to IEC 61557-12 Class 2 reactive power conforming to IEC 61557-12 Class 2 apparent power conforming to IEC 61557-12 Class 1 current conforming to IEC 61557-12 Class 0.5 voltage conforming to IEC 61557-12 Class 1 power factor conforming to IEC 61557-12
Mounting location	Bottom
Mounting support	On circuit breaker
Connection pitch	35 mm
Product destination	Switchboard
Event management	Voltage loss with measured current at voltage loss
Transmission support medium	Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4 (11…26) transmission time < 5 ms
Emission power	10 mW

Mounting mode	Bolt-on
[Imp] maximum permanent current	1.2 x In
Tightening torque	10 N.m
Supply voltage	230 V AC, +/- 20 %, between phase and neutral 400 V AC, +/- 20 %, between phases
Network frequency	50 Hz 60 Hz
Maximum power consumption	3.7 VA
Standards	IEC 61557-12 IEC 61010
Dimensions (W x H x D)	105 x 57 x 86 mm
Weight	250 g

Ambient air temperature for operation	-25…70 °C
Ambient air temperature for storage	-50…85 °C
Overvoltage category	IV conforming to IEC 61010-1
Measurement category	Category III conforming to IEC 61010-2-030
IP degree of protection	IP20
IK degree of protection	IK07 conforming to IEC 60068-2-75 test Ehb
Pollution degree	3
Relative humidity	0…95 % at 55 °C conforming to IEC 60721-3-3
