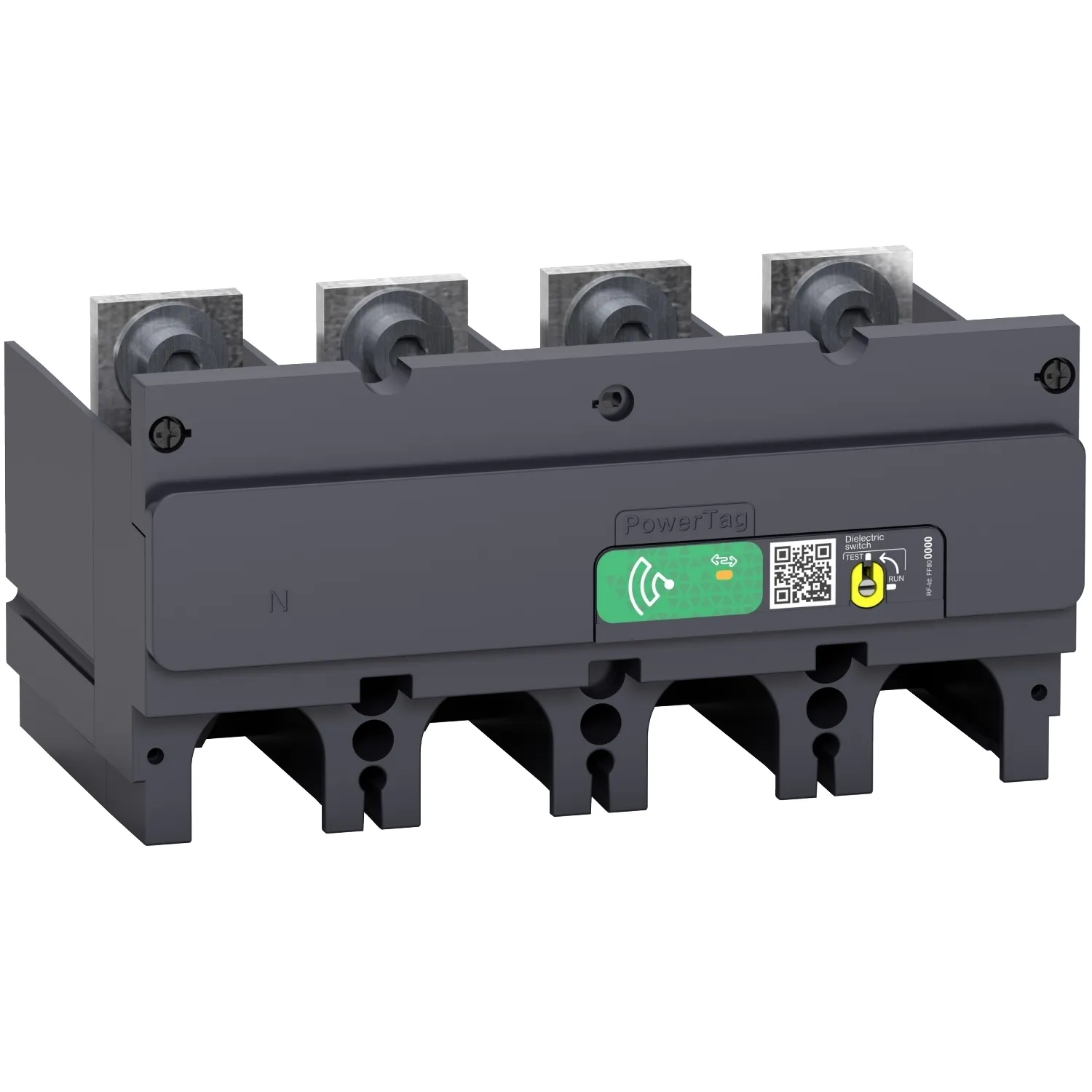

Schneider LV434023 Energy Sensor PowerTag NSX - 630A - 3P+N

Schneider LV434023 Energy Sensor PowerTag NSX - 630A - 3P+N

£873.15

£1,047.78 inc. VAT

Specification

Main

Poles

3P + N

Maximum current [Imax]

630 A

[Ib] Basic current

100 A

Starting current

400 mA

Saturation current

1260 A

Type of measurement

Voltage, power factor, active & reactive power, active & reactive energy, current, apparent power

Accuracy class

Class 1 active energy conforming to IEC 61557-12

Class 2 reactive energy conforming to IEC 61557-12

Class 1 active power conforming to IEC 61557-12

Class 2 reactive power conforming to IEC 61557-12

Class 2 apparent power conforming to IEC 61557-12

Class 1 current conforming to IEC 61557-12

Class 0.5 voltage conforming to IEC 61557-12

Class 1 power factor conforming to IEC 61557-12

Mounting location

Bottom

Mounting support

On circuit breaker

Connection pitch

45 mm

Product destination

Switchboard

Event management

Voltage loss with measured current at voltage loss

Transmission support medium

Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4 (11…26) transmission time < 5 ms

Emission power

10 mW

Complementary

Mounting mode

Bolt-on

[Imp] maximum permanent current

1.2 x In

Tightening torque

50 N.m

Supply voltage

230 V AC, +/- 20 %, between phase and neutral
400 V AC, +/- 20 %, between phases

Network frequency

50 Hz
60 Hz

Maximum power consumption

3.7 VA

Standards

IEC 61557-12
IEC 61010

Dimensions (W x H x D)

185 x 91 x 110 mm

Weight

1000 g

Environmental

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Overvoltage category

IV conforming to IEC 61010-1

Measurement category

Category III conforming to IEC 61010-2-030

IP degree of protection

IP20

IK degree of protection

IK07 conforming to IEC 60068-2-75 test Ehb

Pollution degree

3

Relative humidity

0…95 % at 55 °C conforming to IEC 60721-3-3
