Schneider PowerLogic PM5111 3 Phase Power Meter 15th THD with Modbus RS485 and MID (METSEPM5111)

Name: Schneider PowerLogic PM5111 3 Phase Power Meter 15th THD with Modbus RS485 and MID (METSEPM5111)
Brand: Schneider Electric
Price: 324.996 GBP
Availability: InStock

Schneider Electric

Manufacturer Part No: METSEPM5111

Schneider PowerLogic PM5111 3 Phase Power Meter 15th THD with Modbus RS485 and MID (METSEPM5111)

Schneider Electric

Manufacturer Part No: METSEPM5111

£270.83

£325.00 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

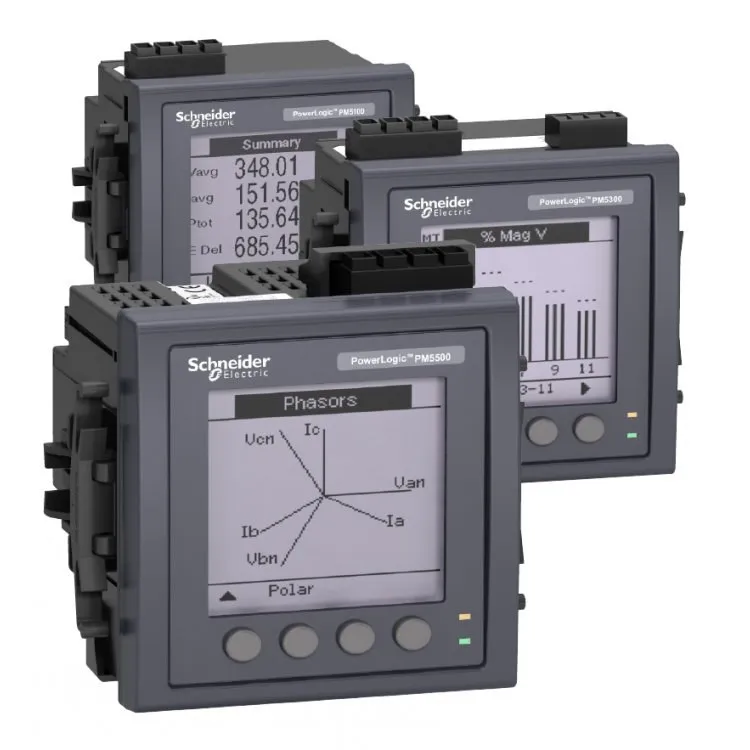

PowerLogic PM5000 is a range of three-phase standard DIN 96 x 96mm panel mount meters. The product features direct connection of up to 690V L-L without the need of voltage transformers for installations complaint with CAT III, allowing more free panel space for the user.

It provides the measurement capabilities needed to allocate energy usage, perform tenant metering and sub-billing, pin-point energy savings, optimize equipment efficiency and utilization, and perform a high level assessment of the power quality of the electrical network.

Product Features:

Parameters: I, V, W, Fq, PF, kWh, THD, TDD, VLN, VLL (Harmonics up to 15th individual for analysis)
Features: 33 configurable alarms with a 1 second response time and 1 digital output
CL 0.5S Accuracy rating
MID ready compliance, EN50470-1/3, Annex B and Annex D Class C
Real-time clock

Specification

Device(EM5110)	Power monitoring
Type of measurements	Active and reactive power (KVAR) Frequency (Hz) Power factor (0-1) Energy (W-KW) Voltage (V) Current (A)
Supply voltage	125-250 V DC 100-415 V AC (45-65 Hz)
Network frequency	50 Hz - 60 Hz
[In] rated current	1 A 5 A
Type of network	1P + Neutral 3P (3Phase) 3P + Neutral
Power consumption in VA	10 VA at 415 V
Display type	Backlit LCD
Display resolution	128 x 128 pixels
Sampling rate	64 samples/cycle
Measurement current	10 mA- 9 A
Analogue input type	Voltage (impedance 5 MOhm) Current (impedance 0.3 mOhm)
Measurement voltage	20/400 V AC 45-65 Hz between phase and neutral 35/690 V AC 45-65 Hz between phases
Frequency measurement range	45-65 Hz
Number of inputs	0
Measurement accuracy	+/- 0.5 % voltage +/- 0.5 % current +/- 0.005 % power factor +/- 0.05 % frequency +/- 0.5 % apparent power +/- 0.5 % active power +/- 2 % reactive energy +/- 0.5 % active energy
Accuracy class	Class 0.5S (active energy according to IEC 62053-22)
Number of outputs	1 digital (Not accessible via display)
Communication port protocol	Modbus TCP/IP : 10/100 Mbit/s, insulation: 2500 V
Communication port support	Ethernet
Data recording	Data logs Event logs Min/max of instantaneous values Time stamping Alarm logs Maintenance logs
Memory capacity	256 kB
Mounting mode	Flush-mounted
Mounting support	Framework
Standards	IEC 60529 IEC 61557-12 IEC 62053-22 EN 50470-1 EN 50470-3 IEC 62053-24
Width	96 mm
Depth	72 mm
Height	96 mm
Product weight	430 g
