Schneider PowerLogic PM5340 3 Phase Power Meter 31st THD CL0.5 4 Tariffs 2DI/2DO Modbus TCP/IP Ethernet with 2 Relays (METSEPM5340)

Name: Schneider PowerLogic PM5340 3 Phase Power Meter 31st THD CL0.5 4 Tariffs 2DI/2DO Modbus TCP/IP Ethernet with 2 Relays (METSEPM5340)
Brand: Schneider Electric
Price: 550.704 GBP
Availability: BackOrder

Schneider Electric

Manufacturer Part No: METSEPM5340

Schneider PowerLogic PM5340 3 Phase Power Meter 31st THD CL0.5 4 Tariffs 2DI/2DO Modbus TCP/IP Ethernet with 2 Relays (METSEPM5340)

Schneider Electric

Manufacturer Part No: METSEPM5340

£458.92

£550.70 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

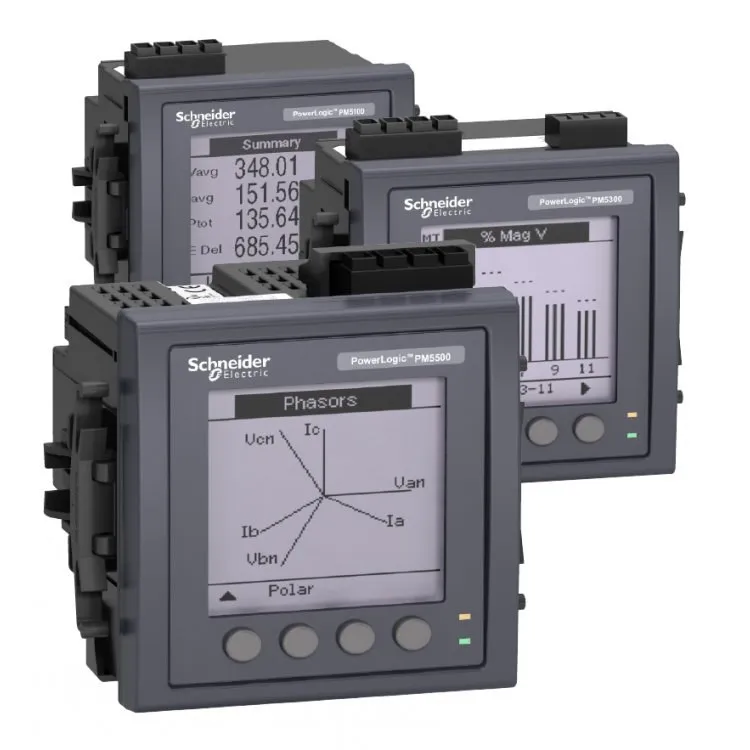

PowerLogic PM5000 is a range of 3 Phase standard DIN 96x96mm panel mount meters. The product features direct connection up to 690V L-L without voltage transformers complaint with CAT III; allowing more free panel space for the user. With a backlit LCD, bar graphs, 6 lines, and 4 concurrent values, the PM5000 series is a simple and effective way to calculate energy. Parameters: I, V, W, Fq, PF, kWh, THD, TDD, VLN, VLL (Harmonics up to 31st for analysis).

Product Features:

Features: 4 Tariffs, 2 Digital I/O, 35 configurable alarms with a 1 second response time, 2 relays and Modbus communications TCP Ethernet via RS485 port (Standard)
Accuracy rating- Class 0.5S
Real-time clock
Memory- 256KB

Specification

Device(EM5340)	Power monitoring
Type of measurements	Active and reactive power (KVAR) Frequency (Hz) Power factor (0-1) Energy (W-KW) Voltage (V) Current (A)
Supply voltage	125-250 V DC 100-415 V AC (45-65 Hz)
Network frequency	50 Hz - 60 Hz
[In] rated current	1 A 5 A
Type of network	1P + Neutral 3P (3Phase) 3P + Neutral
Power consumption in VA	10 VA at 415 V
Display type	Backlit LCD
Display resolution	128 x 128 pixels
Sampling rate	64 samples/cycle
Measurement current	10 mA- 9 A
Analogue input type	Voltage (impedance 5 MOhm) Current (impedance 0.3 mOhm)
Measurement voltage	20/400 V AC 45-65 Hz between phase and neutral 35/690 V AC 45-65 Hz between phases
Frequency measurement range	45-65 Hz
Number of inputs	2 digital
Measurement accuracy	+/- 0.5 % voltage +/- 0.5 % current +/- 0.005 % power factor +/- 0.05 % frequency +/- 0.5 % apparent power +/- 0.5 % active power +/- 2 % reactive energy +/- 0.5 % active energy
Accuracy class	Class 0.5S (active energy according to IEC 62053-22)
Number of outputs	2 digital 2 relay
Communication port protocol	Modbus TCP/IP : 10/100 Mbit/s, insulation: 2500 V
Communication port support	Ethernet
Data recording	Data logs Event logs Min/max of instantaneous values Time stamping Alarm logs Maintenance logs
Memory capacity	256 kB
Mounting mode	Flush-mounted
Mounting support	Framework
Standards	IEC 60529 IEC 61557-12 IEC 62053-22 EN 50470-1 EN 50470-3 IEC 62053-24
Width	96 mm
Depth	72 mm
Height	96 mm
Product weight	430 g
