Find out moreSocomec C-31 System Interface (4829-0101)
48290101

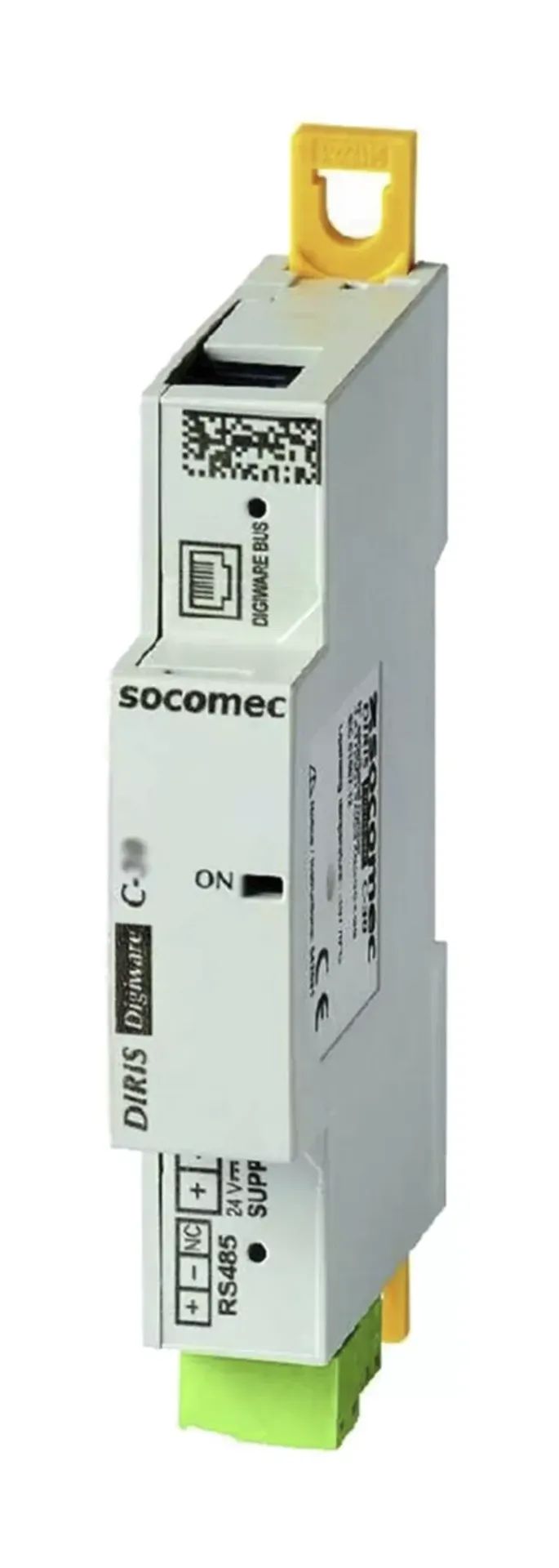

Socomec C-31 System Interface (4829-0101)
£102.58
£123.10 inc. VAT
Product Description
C-31 System interface allows the user to centralise an entire digiware system into one unit (No local display required). Through RS485 Modbus output, the information can be transferred to existing PLC's, or to Diris G gateways via Modbus TCP (Ethernet)
Product Features:
- Single 24V power supply required
- Single RS485 Communication
- No local display required
Specification
Electrical Characteristics
Input voltage | 24 VDC ± 20 % - 20 W max |
Connection | Removable screw terminal block, 2 positions, stranded or solid 0.2-2.5 mm² cable |
P15 power supply | 100-240 VAC/ 24 VDC - 0,63 A - 15 W Modular format - Dimensions (H x L): 90 x 25 mm |
Communication - Digiware Bus
Function | Connection between DIRIS Digiware modules |
Cable type | Specific Socomec cable with RJ45 connections |
Communication - RS485
Connection type | 2 to 3 half duplex wires |
Protocol | Modbus RTU |
Baudrate | 1200 ... 115 200 bauds |
Function | Data configuration and reading |
Location | Single-point on DIRIS Digiware C |
Mechanical Specifications
Casing type | DIN-rail mounting module and base |
Casing protection index | IP20 / IK06 |
Front panel protection index | IP40 on the nose in modular assembly / IK06 |
Environmental Specifications
Ambient operating temperature | -10 ... +70°C |
Storage temperature | -25 ... +70°C |
Operating humidity | 55 °C / 97% HR |
Operating attitude | < 2000 m |
